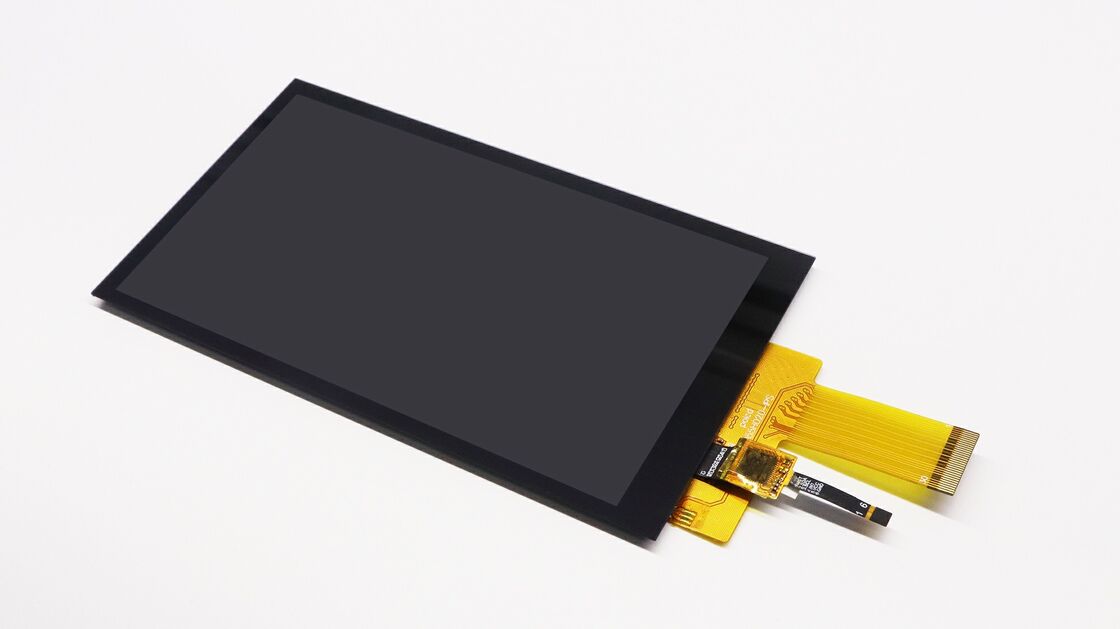

Name: Polcd 5.5 Inch Thin Display LCD Panel 720x1280 Resolution MIPI Interface TFT LCD Vertical Screen
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P055H020-V2-IPS-CTP
Availability: InStock

Home > Products > IPS TFT LCD Display >

Polcd 5.5 Inch Thin Display LCD Panel 720x1280 Resolution MIPI Interface TFT LCD Vertical Screen

Vertical Screen TFT LCD Panel

720x1280 TFT LCD Panel

5.5 Inch TFT LCD Panel

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P055H020-V2-IPS-CTP

Request A Quote

Product Details

Size (inch):

5.5 Inch

Resolution:

720*1280

Display Area:

68.04(H)x120.96(V)mm

Brightness (cd/m²):

350 Nit

Interface:

MIPI

Driver IC:

ST7703

CTP IC:

GT911

Viewing Direction(eye):

IPS Full View Angle

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd 720x1280 LCD 5" High Brightness MIPI Interface IPS 5 Inch TFT LCD Modules with Wide Operating Temp

Get Best Price

Video

Polcd 5 Inch LCD Vertical Screen 720*1280 MIPI Interface Capacitive Touch Panel IPS 5'' TFT Display

Get Best Price

Video

Polcd Custom RGB 24bit Interface 4.0 Inch 480*800 Dots Small Color TFT LCD Display Panels Screen

Get Best Price

Video

Polcd Small 2.3 inch 480x360 High Resolution RGB Color IPS Viewing Angle Landscape TFT LCD Screen

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

Model	P055H020-V2-IPS-CTP
Screen Size	5.5 inch
Number of Pixel	720RGB(H)x1280(V)
Pin	30 pin
Display area	68.04(H)x120.96(V)mm
Pixel pitch	0.0945(H)x0.0945(V)mm

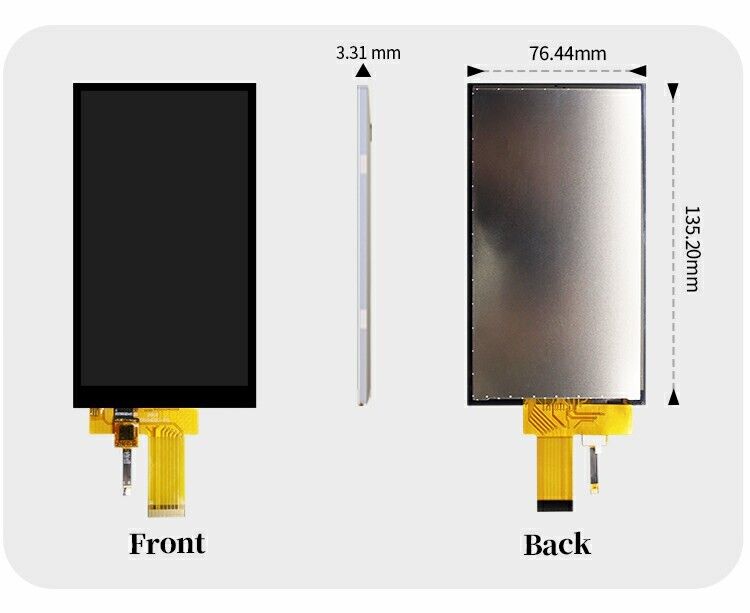

Outline Dimension	76.44x135.20x3.31mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	350 nit
Contrast Ratio	800:1
Interface	MIPI
Back-light	LED Side-light type
LCM IC	ST7703
CTP IC	GT911
Operation Temperature	-20~70
Storage Temperature	-30~80

Product Description:

1. Immersive Visual Experience

Upgrade your projects with this premium 5.5-inch TFT IPS display. Its Full HD (720x1280 pixels) resolution delivers exceptional sharpness, making it ideal for high-detail applications like portable monitors, smart home control panels, retro gaming consoles, car rearview systems, or miniature desktop displays. The IPS technology ensures consistent, vivid colors whether you're viewing it head-on or from the side.

2. Robust Build & Reliable Touch

The display features a durable glass surface with integrated touch functionality. Choose between Capacitive Touch for smooth, multi-finger smartphone-like response, or Resistive Touch for precise stylus or glove input. The panel is designed for longevity and stable performance in various environments.
