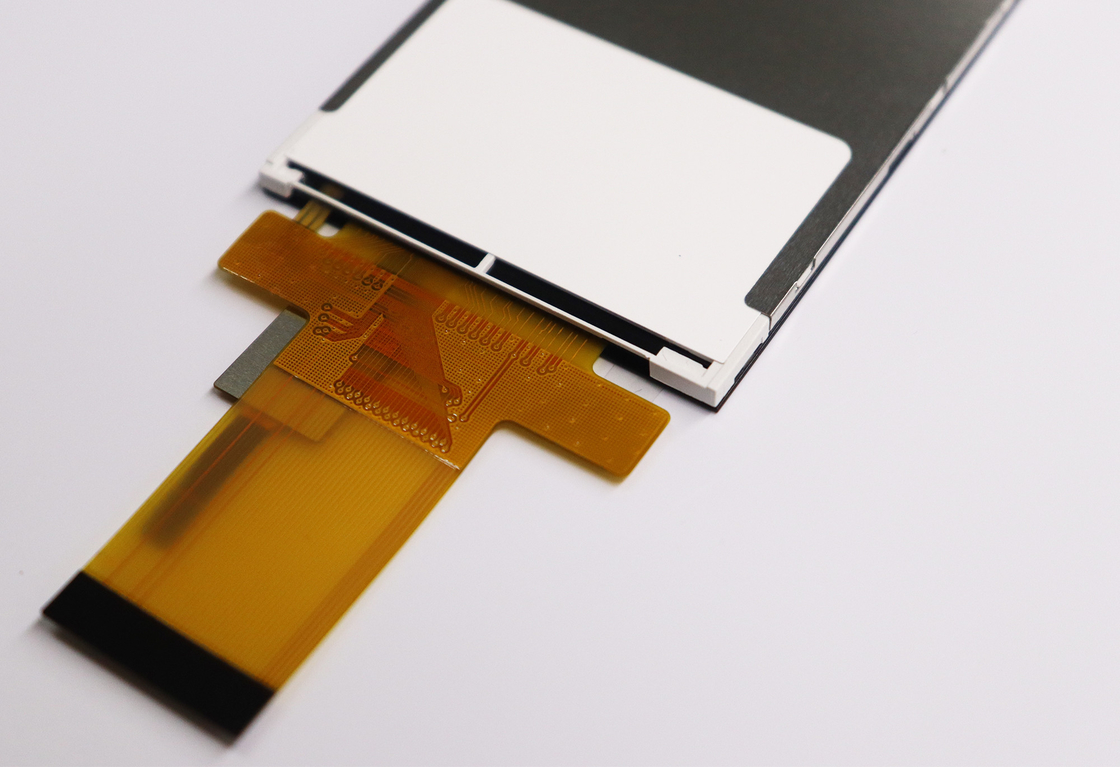

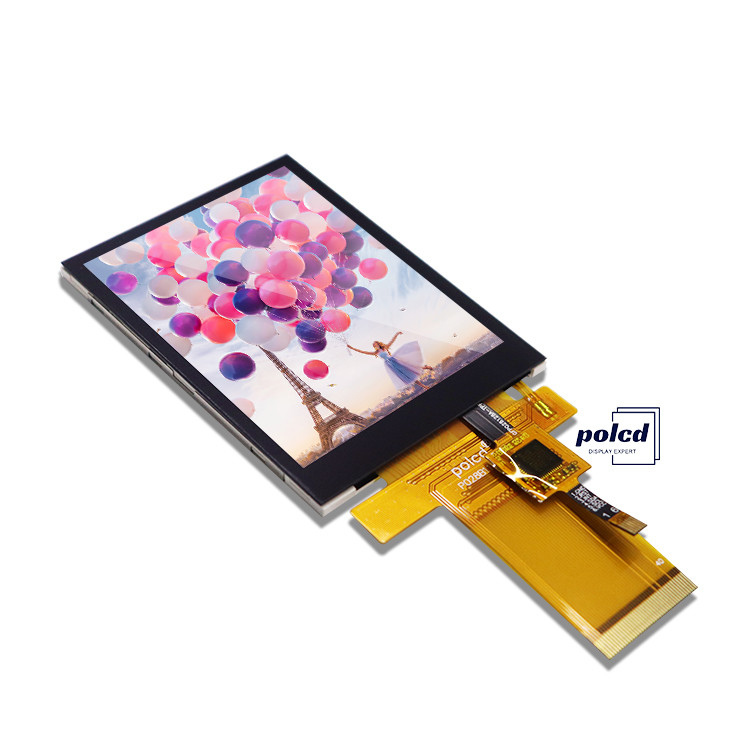

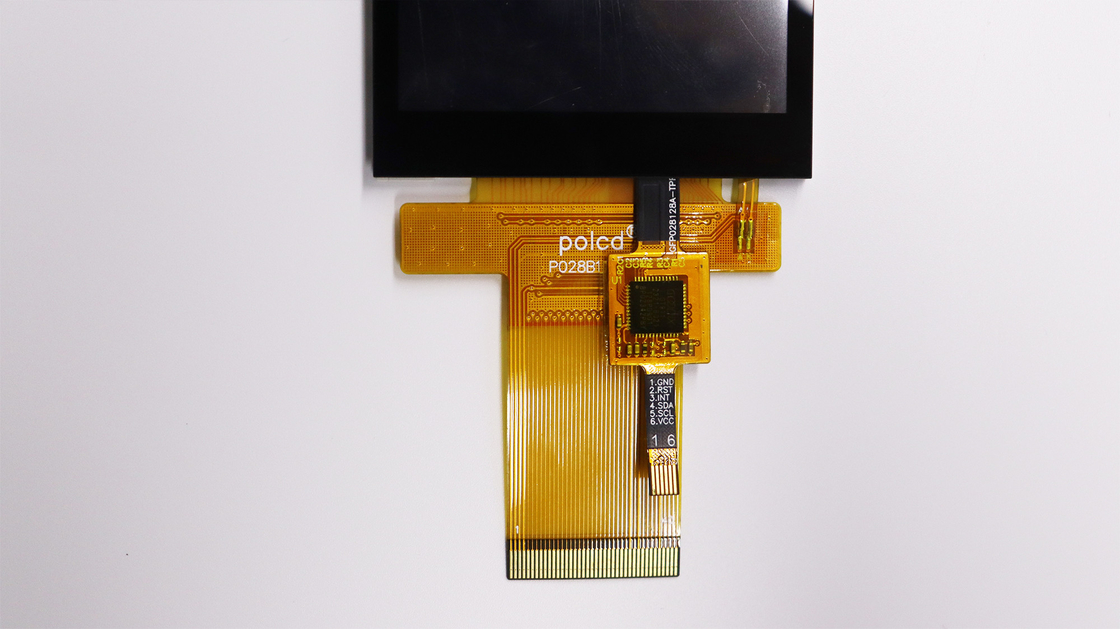

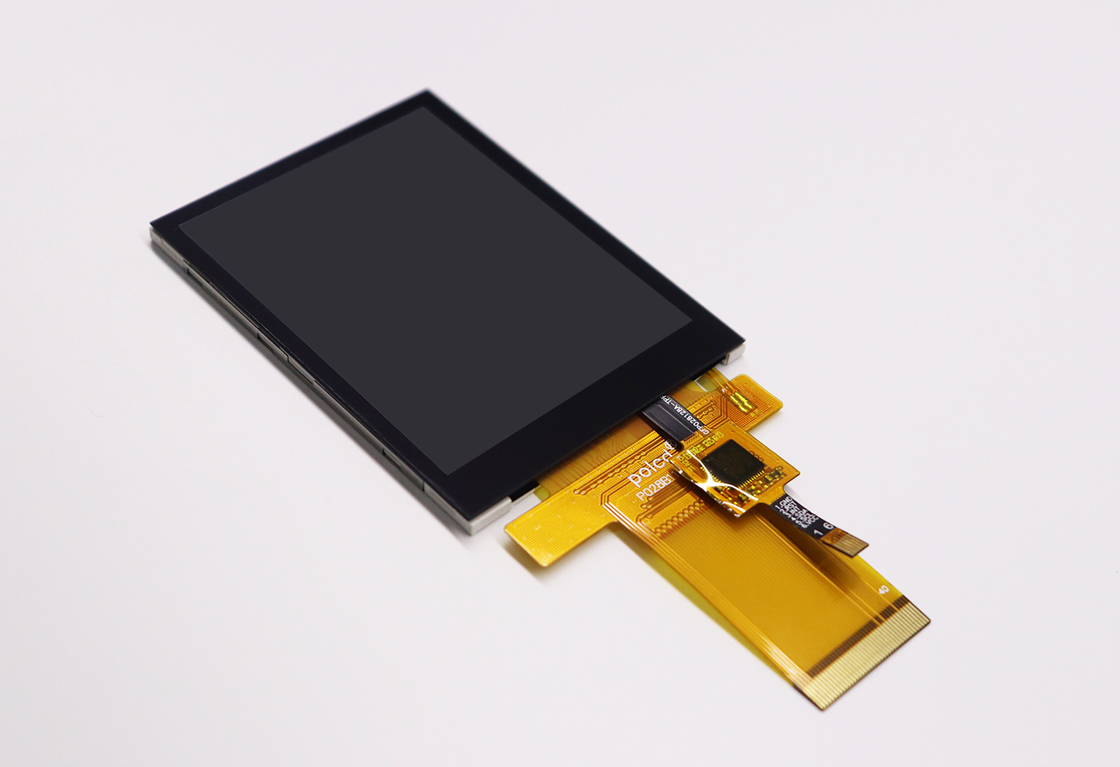

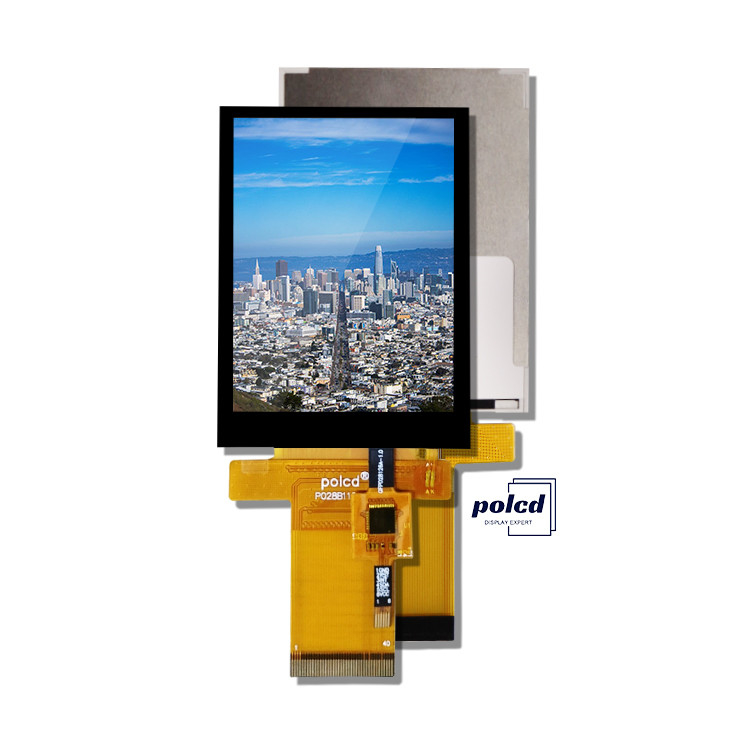

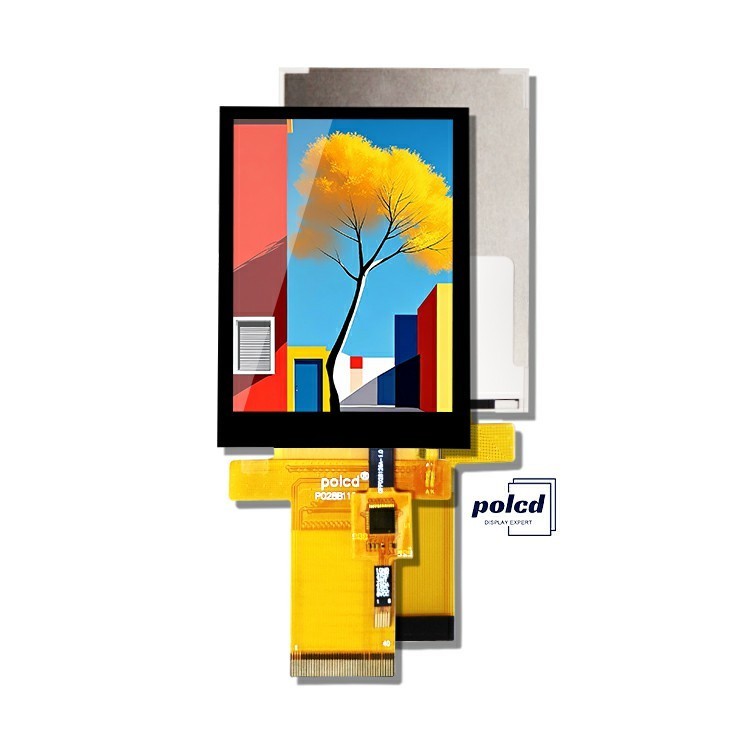

Polcd 2.8 inch 480*640 Resolution RGB interface Touch Panel ST7701S LCD TFT Display Module

Polcd 2.8 inch 480*640 Resolution RGB interface Touch Panel ST7701S LCD TFT Display Module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028B119-IPS-CTP

Contact Us

Request A Quote
Product Details
Screen Size:
2.8 Inch
Resolution:
480RGB(H)x640(V)
Brightness (cd/m²):
300 Nit
Interface:
RGB 24bit
Driver Ic:
ST7701S
Display Area:
43.20(H)x57.60(V)
Viewing Direction(eye):
ALL
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
1~7 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

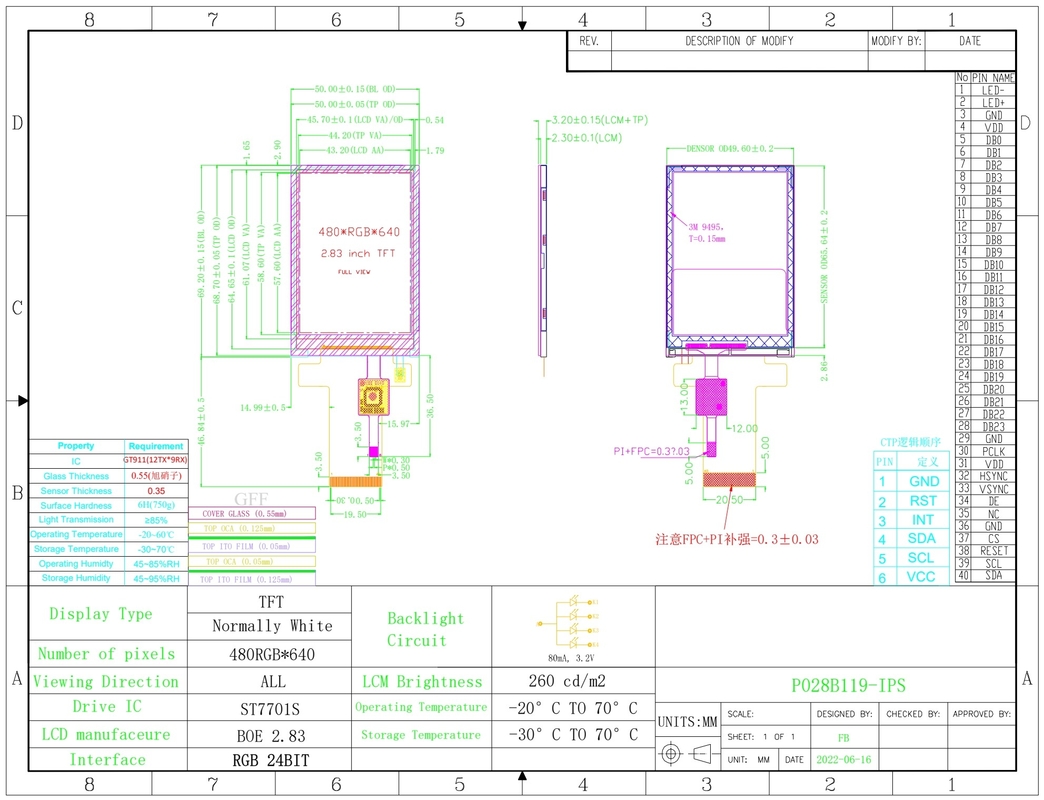

Parameter:

Model P028B119-IPS-CTP
Screen Size 2.8 inch
Number of Pixel 480RGB(H)x640(V)
Pin 40 pin
Display area 43.20(H)x57.60(V)mm
Pixel pitch 0.09(H)x0.09(V)mm
Outline Dimension 50.00x69.20x3.20mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 1000:1
Interface RGB 24bit
Back-light LED Side-light type
LCM IC ST7701S
CTP IC GT911
Operation Temperature -20~70
Storage Temperature -30~80

Introducing the 2.8-inch 480x640 TFT LCD Display:

1. Display Size and Resolution: The display features a 2.8-inch screen size, allowing for a compact form factor while still providing a comfortable viewing experience. With a resolution of 480x640 pixels, it offers crisp and clear images, text, and graphics.

2. TFT Technology: The display utilizes Thin-Film Transistor (TFT) technology. TFT ensures vibrant colors, high contrast, and excellent image quality, making it ideal for multimedia applications, gaming, and graphical interfaces.

3. Wide Viewing Angle: The TFT LCD screen provides a wide viewing angle, allowing users to view the content clearly from different perspectives. This feature is particularly useful for applications where multiple viewers need to access the displayed information simultaneously.

4. High Brightness and Contrast: The display offers high brightness levels, ensuring good visibility even in bright ambient lighting conditions. Additionally, it provides a high contrast ratio, delivering sharp and vivid visuals with enhanced detail and depth.

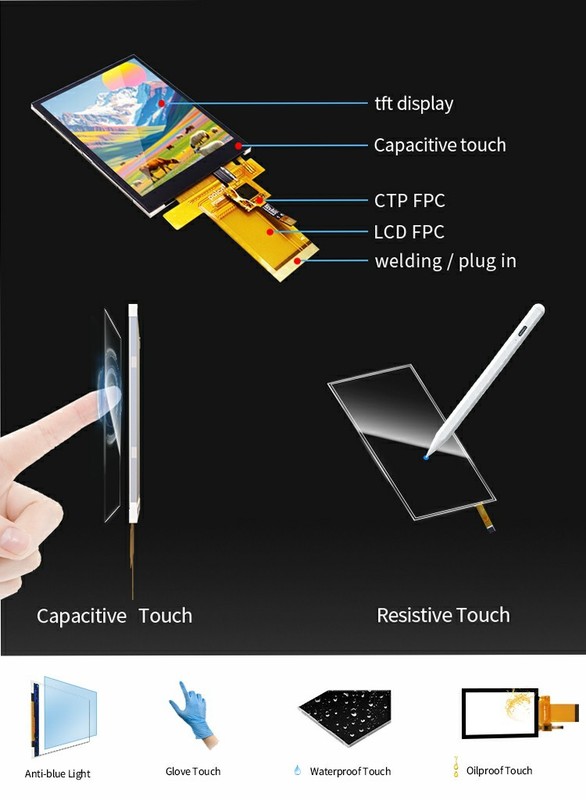

5. Touchscreen Capability: The 2.8-inch TFT LCD display may incorporate a touchscreen functionality, enabling intuitive and interactive user input. Touchscreen features enhance user experience by supporting gestures, multi-touch, and precise input for various applications such as industrial control systems, portable devices, and consumer electronics.

6. Compact and Durable Design: The 2.8-inch TFT LCD display is designed to be compact and lightweight, making it suitable for space-constrained applications. It also boasts durability, with a robust construction that can withstand moderate environmental conditions and resist damage from daily use.

7. Energy Efficiency: The display is energy-efficient, consuming low power during operation. This characteristic is advantageous for devices powered by batteries or applications where power consumption needs to be minimized.Polcd 2.8 inch 480*640 Resolution RGB interface Touch Panel ST7701S LCD TFT Display Module 0

Polcd 2.8 inch 480*640 Resolution RGB interface Touch Panel ST7701S LCD TFT Display Module 1

Polcd 2.8 inch 480*640 Resolution RGB interface Touch Panel ST7701S LCD TFT Display Module 2
