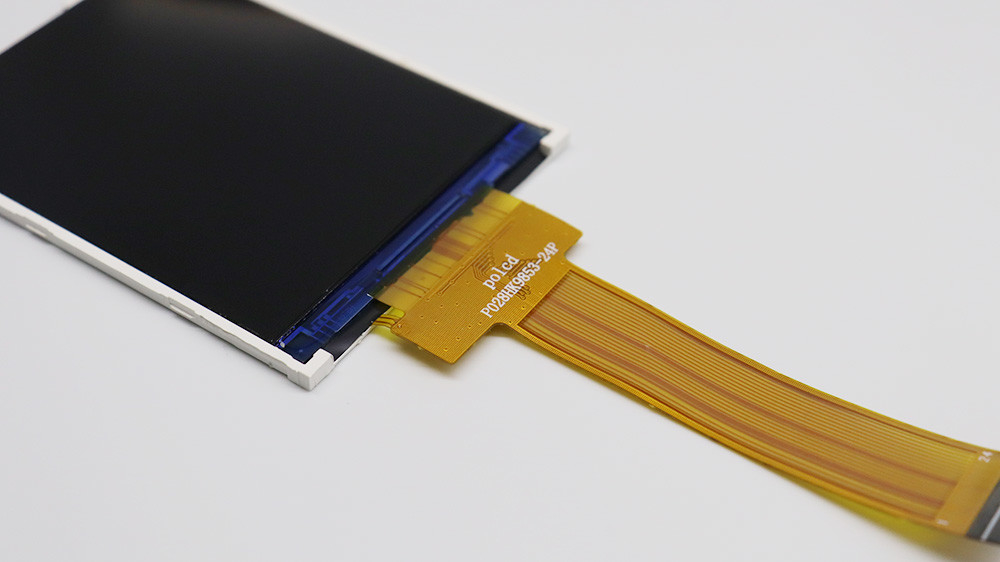

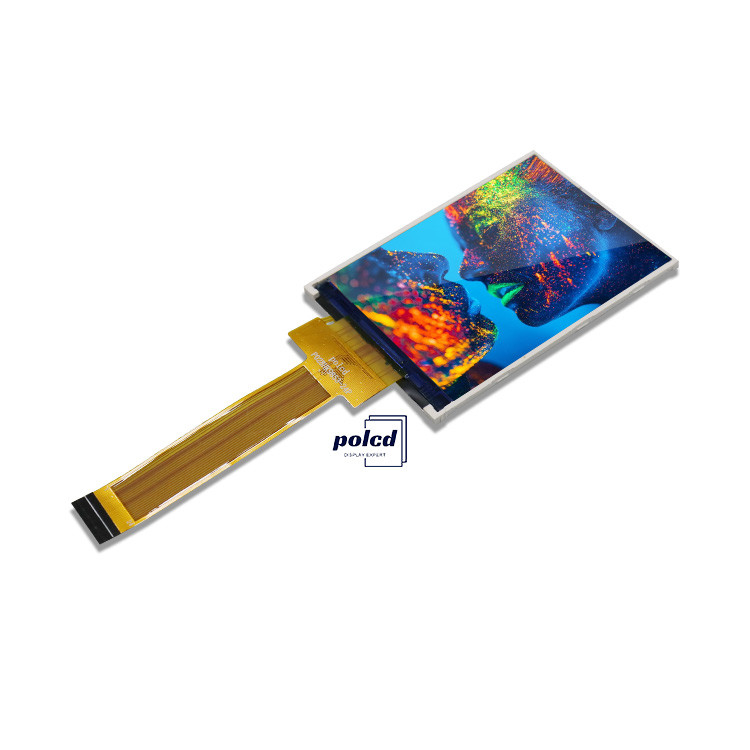

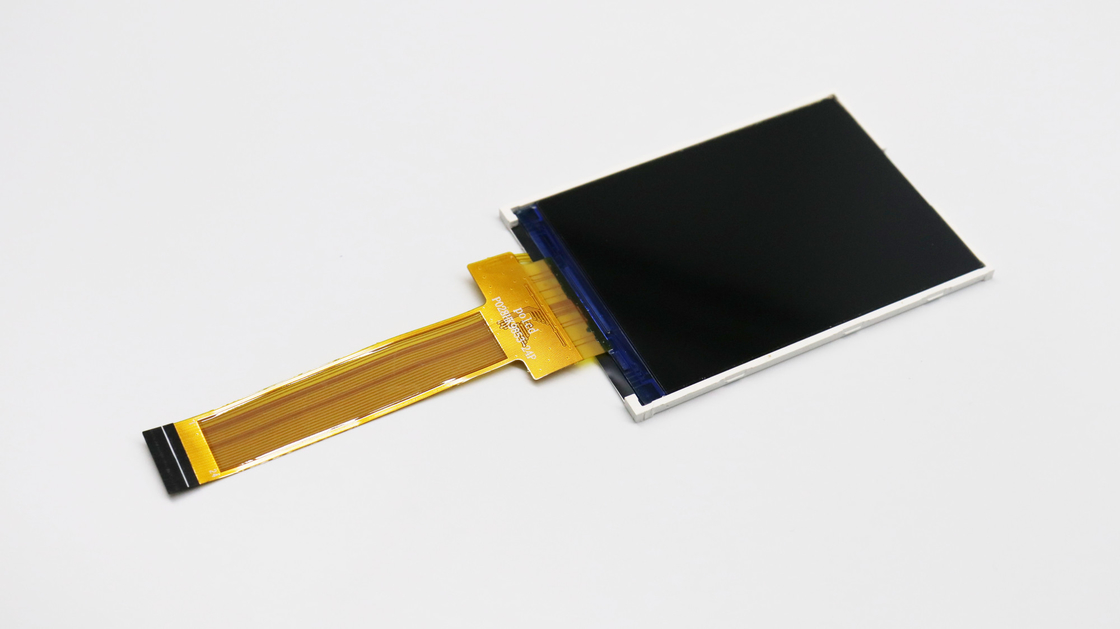

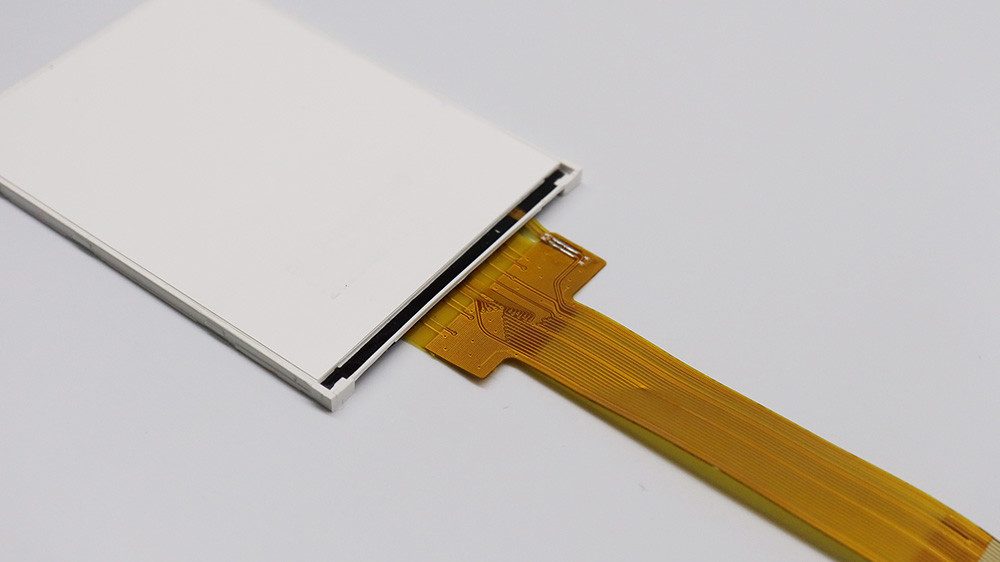

Polcd IPS Modules 2.8'' 240*320 Panel Spi infterface JD9853 IC Screen 2.8 Inch Tft Lcd Display

Polcd IPS Modules 2.8'' 240*320 Panel Spi infterface JD9853 IC Screen 2.8 Inch Tft Lcd Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028HK9853-24P

Contact Us

Request A Quote
Product Details
Screen Size:
2.8 Inch
Resolution:
240RGB(H)x320(V)
Brightness (cd/m²):
200 Nit
Interface:
4wire SPI
Driver Ic:
JD9853
Display Area:
43.20(H)x57.60(V)
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
1~7 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

Parameter:

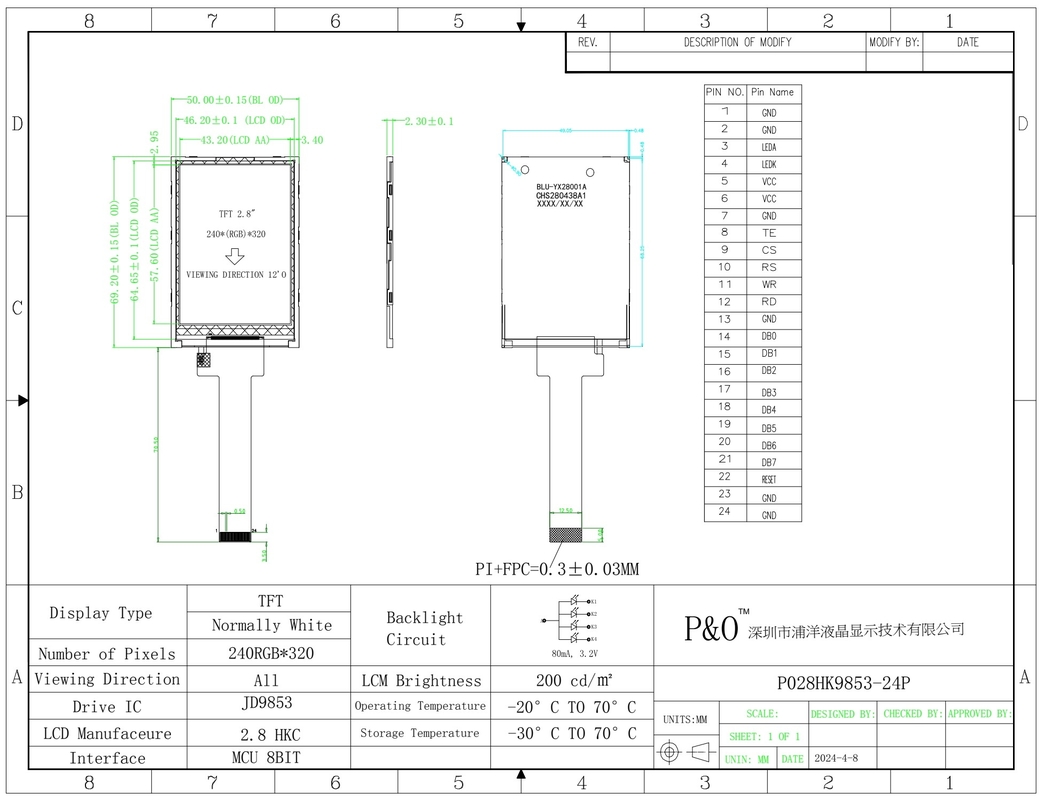

Model P028HK9853-24P
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Display area 43.20(H)x57.60(V)mm
Pixel pitch 0.180(H)x0.180(V)mm
Pins 24 pins
Outline Dimension 50.00x69.20x2.30mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally black
Viewing Direction(eye) ALL
Gray inversion direction --
Display Color 262K
Luminance(cd/m2) 200 nit
Contrast Ratio 1200:1
Surface treatment --
Interface 4-line SPI
Back-light LED Side-light type
Drive IC JD9853
Operation Temperature -20~70℃
Storage Temperature -30~80℃



Polcd IPS Modules 2.8'' 240*320 Panel Spi infterface JD9853 IC Screen 2.8 Inch Tft Lcd Display 0Polcd IPS Modules 2.8'' 240*320 Panel Spi infterface JD9853 IC Screen 2.8 Inch Tft Lcd Display 1
