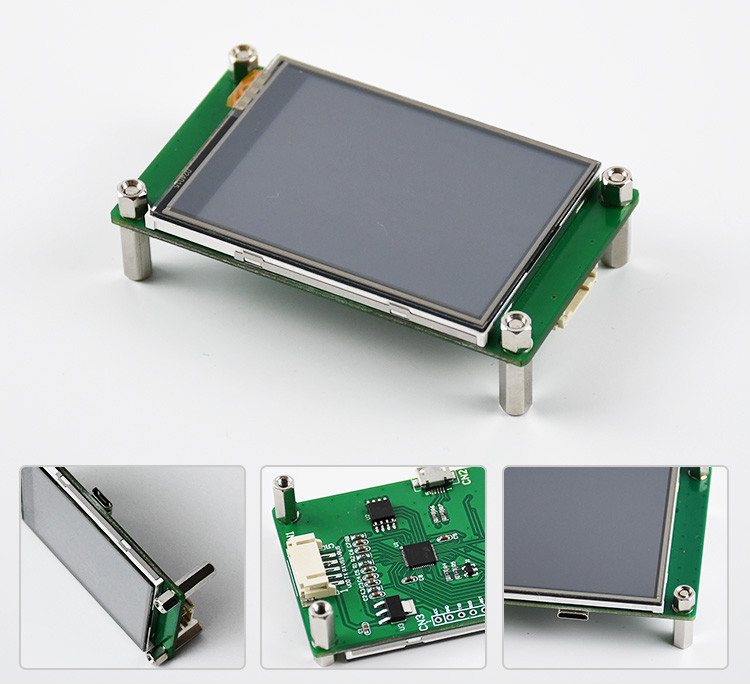

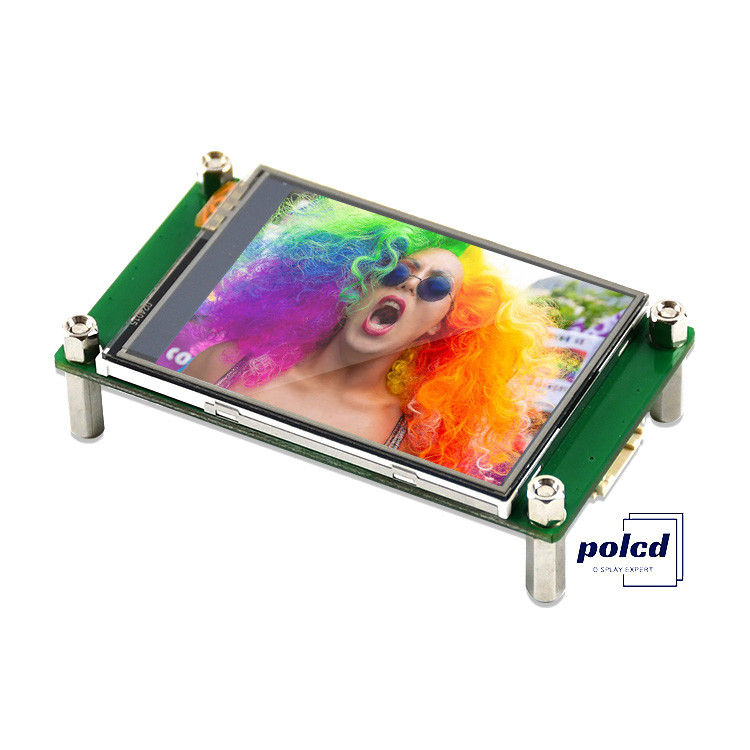

Polcd 2.4 inch TFT LCD Resistive Touch Screen Module 240*320 SPI Serial Port Display for arduino

Polcd 2.4 inch TFT LCD Resistive Touch Screen Module 240*320 SPI Serial Port Display for arduino

240*320 SPI Serial Port Display

arduino SPI Serial Port Display

TFT LCD Resistive Touch Screen Module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P024A1001

Contact Us

Request A Quote
Product Details
Screen Size:
2.4 Inch
Resolution:
240x320
Touch Screen:
Resistance Touch
Display Area:
36.72(H)x48.96(V)mm
Back-light:
LED Side-light Type
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
1~7 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

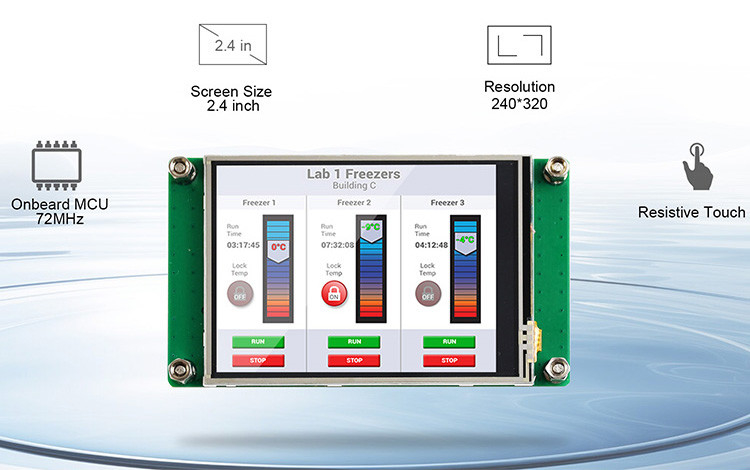

Parameter

Product name Serial Port Screen
Model P024A1001
Screen Size 2.4 inch
Number of Pixel 240x320
Touch Screen Resistance Touch
Display area 36.72(H)x48.96(V)mm
Back-light LED Side-light type
Operation Temperature -20~70℃
Storage Temperature -30~80℃



Function introduction:

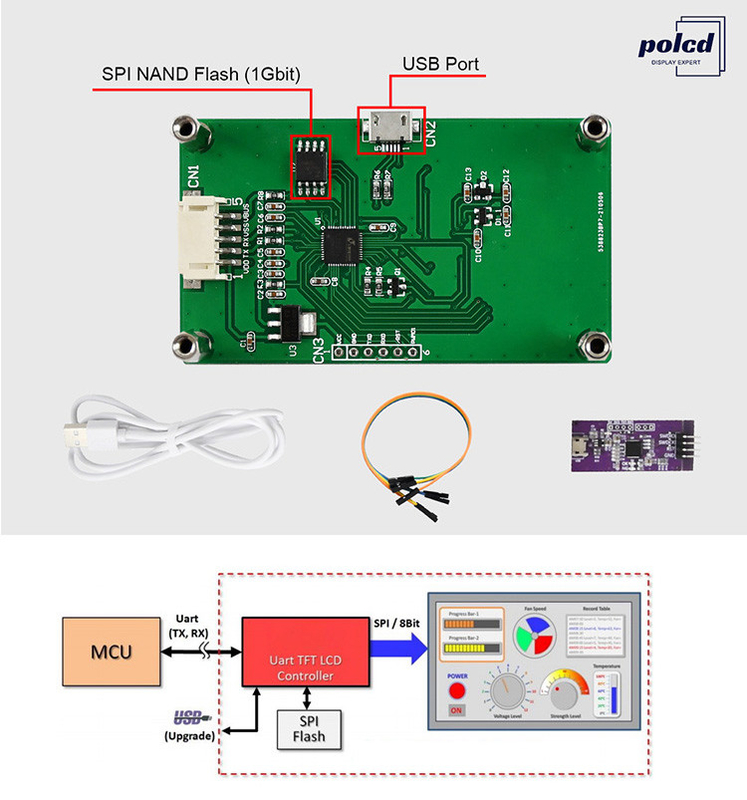

1. Support Uart serial communication, Boudrate up to 115,200bps.

2. Built-in efficient 32Bit MCU to parse serial port instructions.

3. Can support SPI serial port/8bit parallel port MCU screen.

4. Supports external SPI Flash, which can store pictures, animations, fonts and other information.

5. Supports picture display, GIF animation display, loop picture display, startup screen display, progress bar display, and text string display command functions.

6. Supports drawing command functions such as points, lines, circles, triangles, and rectangles.

7. Support UartTFT_Tool and UI_Editor development software.

8.Support resistive/capacitive touch screen.

9. Support USB update program and update SPI Flash data function.

10. Provide PWM/GPIO output.

11. Built-in clock signal source.

12. Working voltage: 3.0~3.6V.

13.QFN-48Pin
