Polcd 2.8 Inch 240*320 HMI Embedded TFT LCD Module Controlled by any MCU Serial Port Screen

Polcd 2.8 Inch 240*320 HMI Embedded TFT LCD Module Controlled by any MCU Serial Port Screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028A1001

Contact Us

Request A Quote
Product Details
Screen Size:
2.8 Inch
Resolution:
240x320
Touch Screen:
Resistance Touch
Display Area:
43.2(H)x57.6(V)mm
Back-light:
LED Side-light Type
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
1~7 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

Parameter

Product name Serial Port Screen
Model P028A1001
Screen Size 2.8 inch
Number of Pixel 240x320
Touch Screen Resistance Touch
Display area 43.2(H)x57.6(V)mm
Back-light LED Side-light type
Operation Temperature -20~70℃
Storage Temperature -30~80℃



Function introduction:

1. Support Uart serial port screen communication, Boudrate up to 115,200bps.

2. Built-in high-efficiency 32Bit MCU (M4 Core) to analyze serial port screen commands, with a main frequency of up to 150MHz.

3. Contains 512KB Flash (508KB available to users) and 256KB SRAM.

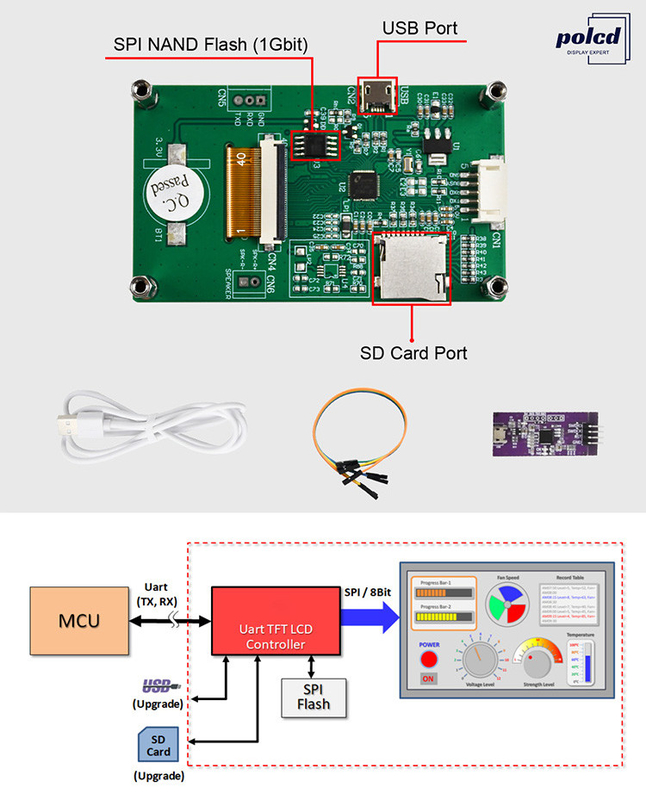

4. Can support SPI serial port/8bit parallel port MCU screen.

5. Supports external SPI Flash, which can store pictures, animations, fonts and other information.

6. Supports picture display, GIF animation display, loop picture display, startup screen display, progress bar display, and text string display command functions.

7. Supports drawing command functions such as points, lines, circles, triangles, and rectangles.

8. Support QR code generator function.

9. Support UartTFT_Tool and UI_Editor development software.

10.Support resistive/capacitive touch screen.

11. Support USB update program and SPI Flash data update function.

12. Provide PWM/GPIO output.

13. Provide DAC audio output.

14. Provide 2 sets of SPI/SCI interfaces.

15. Built-in RTC clock and clock signal source.

16. Working voltage: 3.0~3.6V.

17.QFN-48Pin (6mm*6mm).

Polcd 2.8 Inch 240*320 HMI Embedded TFT LCD Module Controlled by any MCU Serial Port Screen 0
