Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P024H037-IPS
Contact Us
Video
Video

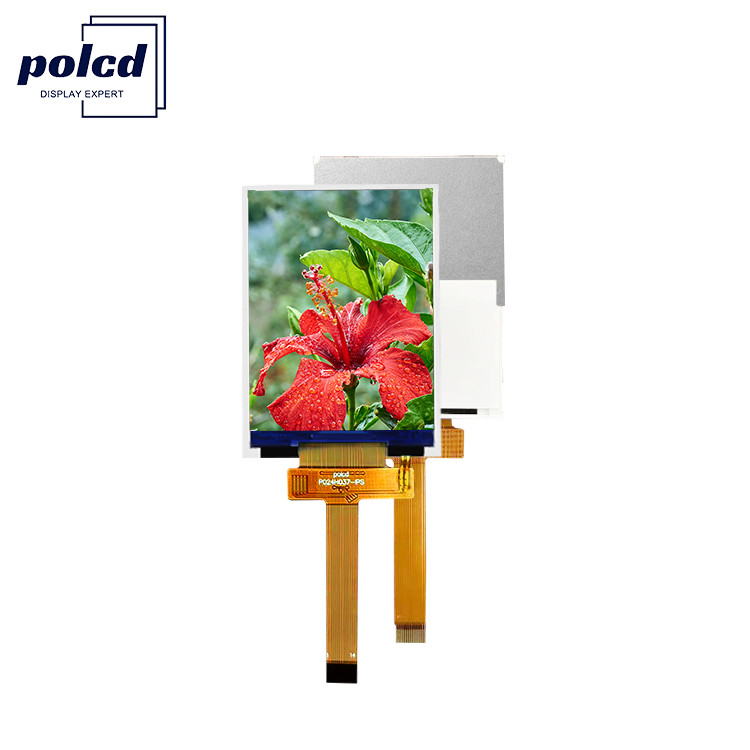

Description of 2.4 inch TFT LCD :
2.4 inch TFT LCD (Thin Film Transistor Liquid Crystal Display) is a small-size display module that uses TFT technology to provide high-quality color images and videos. The display has a diagonal screen size of 2.4 inches and a resolution of 240x320 pixels, providing clear and sharp images with accurate color representation.
Parameter:

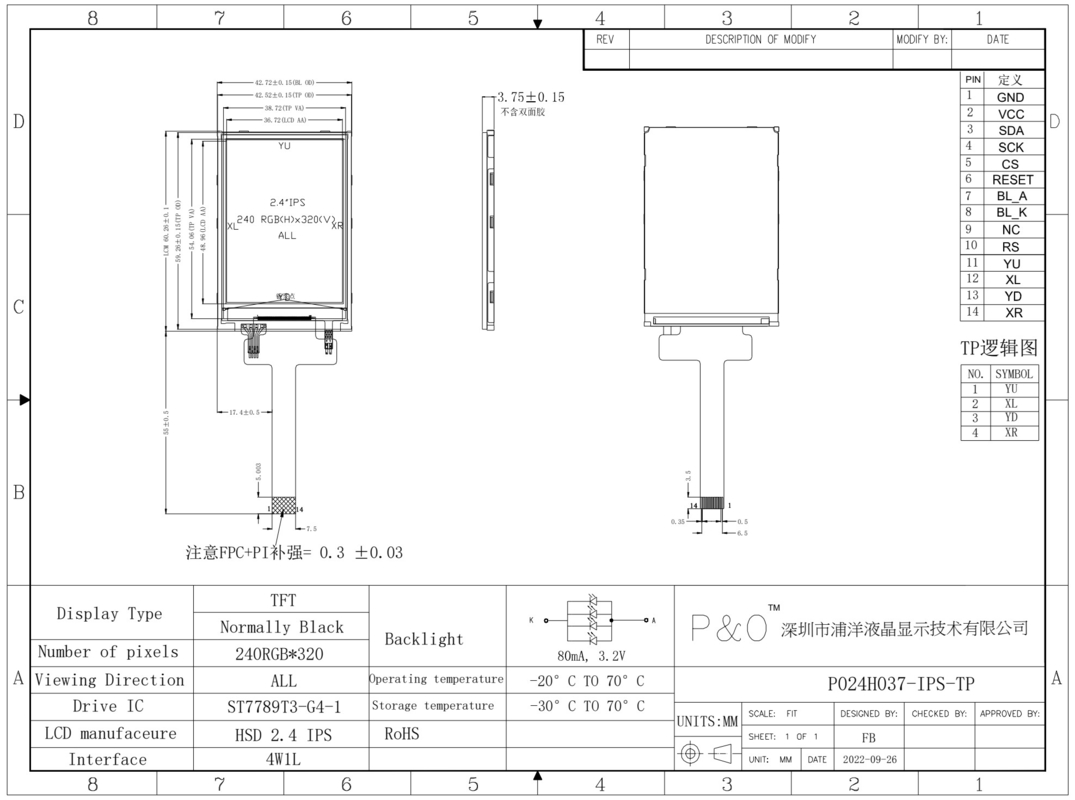

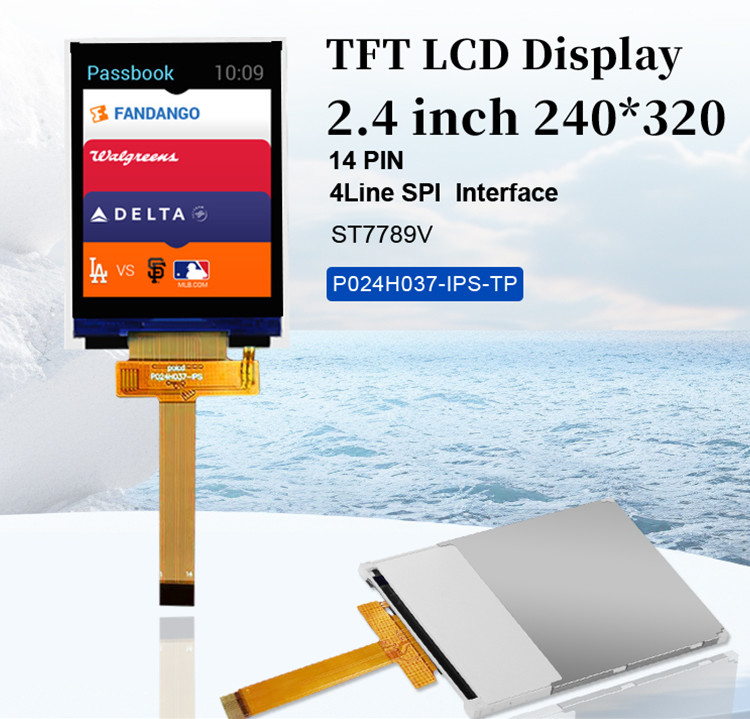

| Model | P024H037-IPS |
| Screen Size | 2.4 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 36.72(H)x48.96(V)mm |
| Pixel pitch | 0.153(H)x0.153(V)mm |
| Pins | 14 Pins |

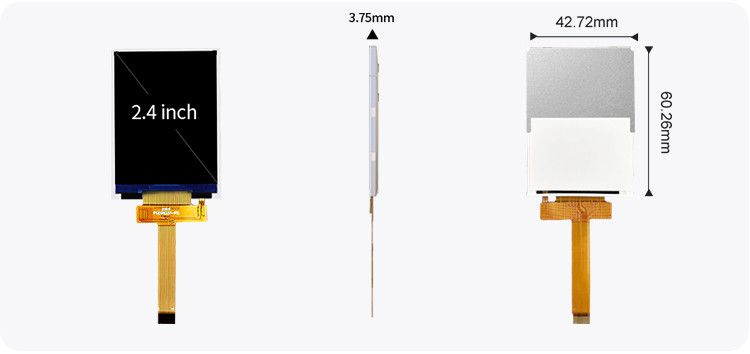

| Outline Dimension | 42.72x60.26x2.25mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 800:1 |
| Interface | 4W SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |

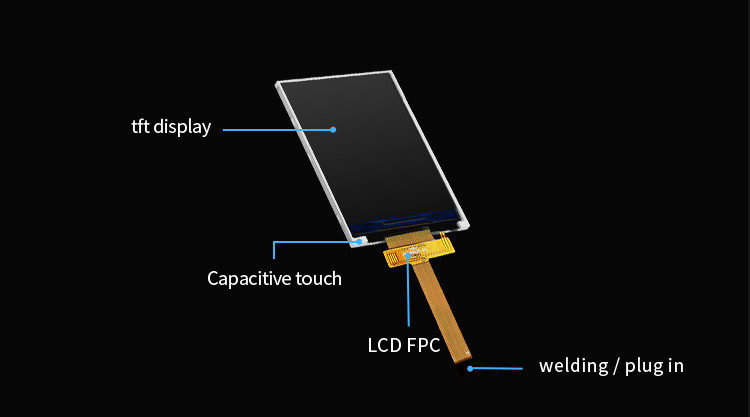

2.4 inch TFT display is a thin-film transistor liquid crystal display that measures 2.4 inches diagonally. It is a popular display size for various applications, including handheld devices, digital cameras, portable gaming consoles, and other embedded systems. The display has a high resolution and contrast ratio, a wide viewing angle, and a built-in resistive touchscreen. It also supports various communication protocols, such as SPI, I2C, and UART, making it compatible with a wide range of devices. Its low power consumption and built-in power management system make it ideal for battery-powered devices. Additionally, its compact and lightweight design makes it easy to integrate into various devices.
2.4 inch TFT LCDs are versatile display modules that can be used in various electronic devices. Here are some common applications for 2.4 inch TFT LCDs:
1.Handheld gaming devices: 2.4 inch TFT LCDs are commonly used in handheld gaming devices, providing a high-quality display for video games and other interactive content.
2.Automotive displays: TFT LCDs are commonly used in automotive displays, including instrument clusters, infotainment systems, and rearview cameras.
3.Industrial controllers: 2.4 inch TFT LCDs are used in industrial controllers, providing a clear and reliable display for monitoring and controlling various industrial processes.
4.Medical devices: TFT LCDs are used in medical devices, including patient monitoring systems, ultrasound machines, and portable medical devices.
5.Smart home devices: 2.4 inch TFT LCDs are used in smart home devices, including home automation systems, smart thermostats, and security systems.
6.Consumer electronics: 2.4 inch TFT LCDs are used in various consumer electronics, including digital cameras, portable media players, and electronic dictionaries.
7.Test and measurement equipment: TFT LCDs are used in test and measurement equipment, providing a clear and accurate display for measuring and analyzing various parameters.
