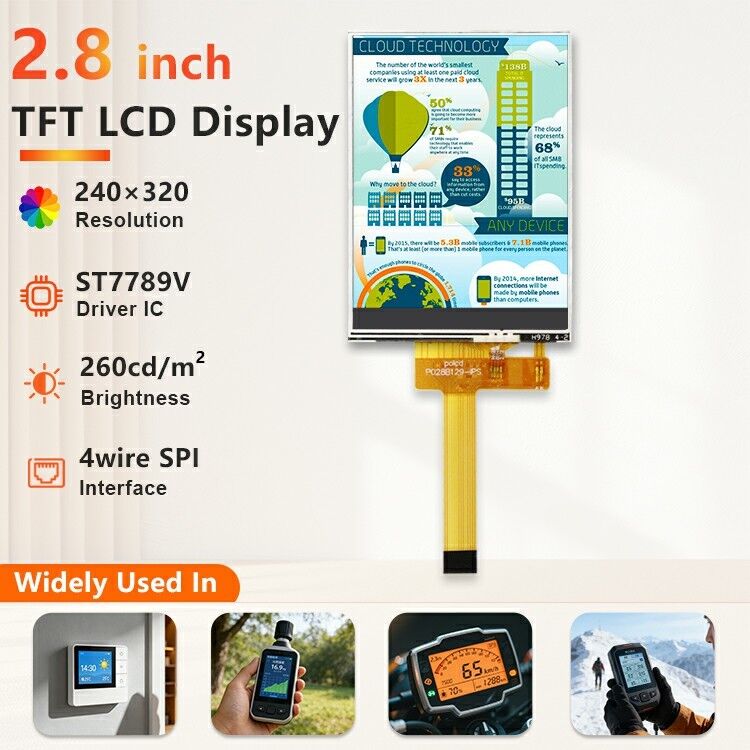

Name: Polcd 2.8 Inch TFT LCM Qvga 240x320 14pins RTP Resistive Touch ST7789V 2.8" Small IPS LCD Panel Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P028B129-IPS-TP
Availability: InStock

Home > products > TFT LCD Module >

Polcd 2.8 Inch TFT LCM Qvga 240x320 14pins RTP Resistive Touch ST7789V 2.8" Small IPS LCD Panel Display

2.8 Inch LCD Panel Display

ST7789V LCD Panel Display

240x320 LCD Panel Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028B129-IPS-TP

Request A Quote

Product Details

Resolution:

240x320

Interface:

4wire SPI

Driver IC:

ST7789V

Brightness (cd/m²):

260 Nit

Viewing Angle:

IPS All View Angle

Display Area:

43.20(H)x57.60(V)mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram

Supply Ability

25,000 PCS per day

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

Item	Specification
Model	P028B129-IPS-TP
Screen Size	2.8 inch
Number of Pixel	240RGB(H)x320(V)
Display area	43.20(H)x57.60(V)
Pixel pitch	0.180(H)x0.180(V)mm
Pins	14 pins
Outline Dimension	50.00x69.20x3.50mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Gray inversion direction	--
Display Color	262K
Luminance(cd/m2)	260 nit
Contrast Ratio	1200:1
Surface treatment	--
Interface	4wire SPI
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Polcd 2.8 Inch TFT LCM Qvga 240x320 14pins RTP Resistive Touch ST7789V 2.8" Small IPS LCD Panel Display 0
