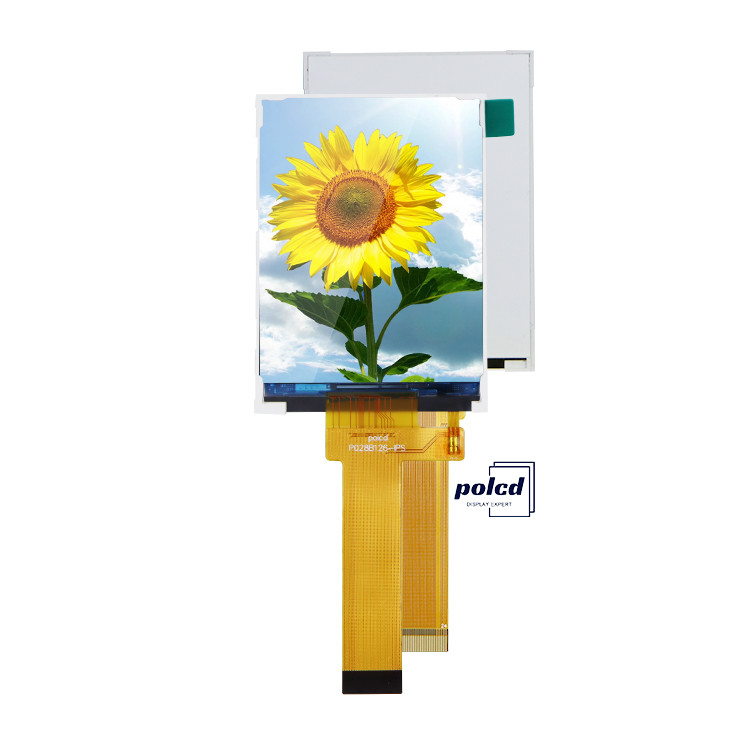

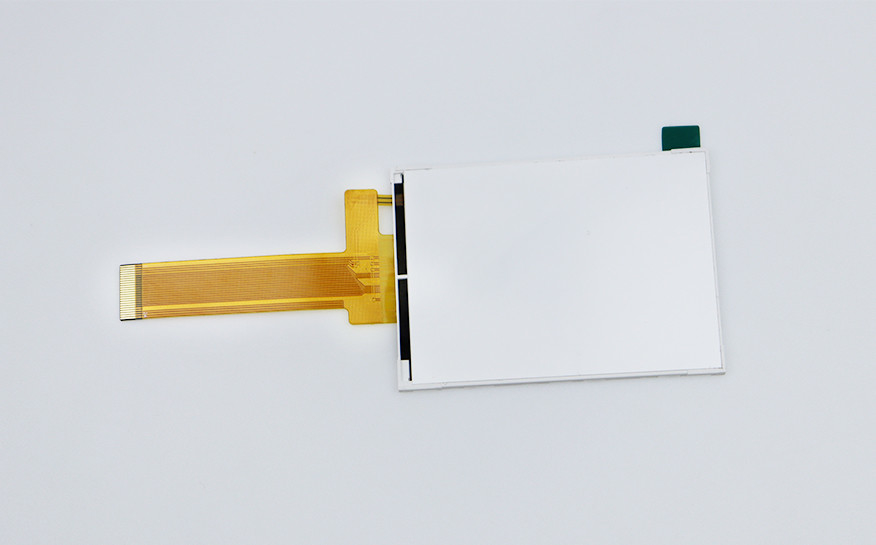

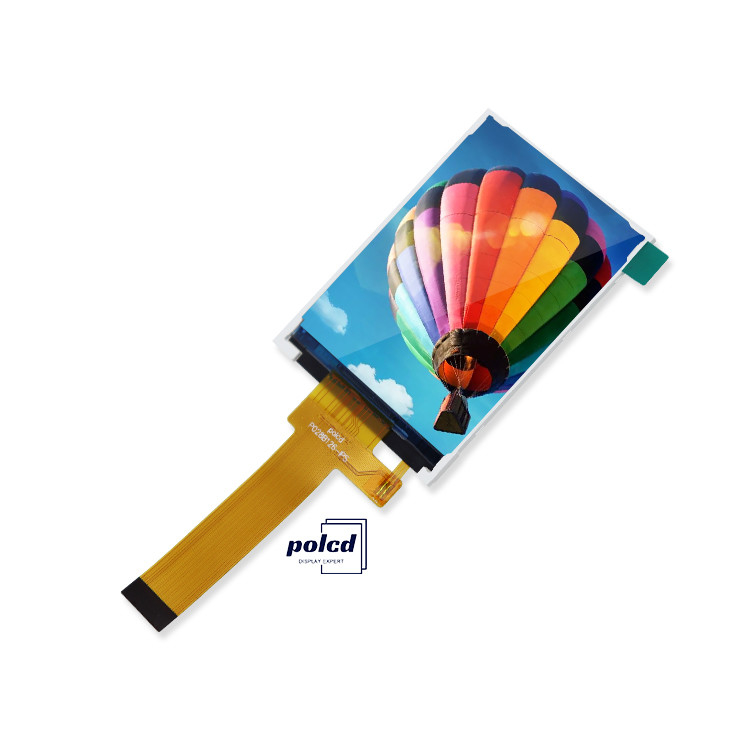

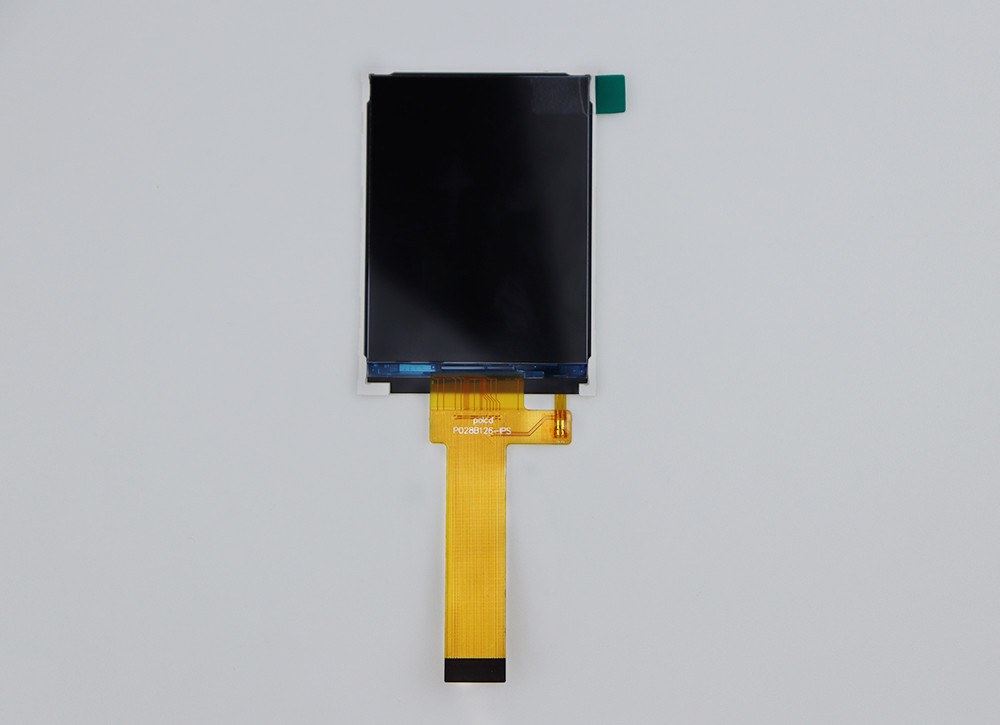

Polcd 2.8 Inch LCM Display IPS Screen 240x320 Resolution MCU 8bit interface 24pin TFT LCD Module

Polcd 2.8 Inch LCM Display IPS Screen 240x320 Resolution MCU 8bit interface 24pin TFT LCD Module

IPS Screen LCM Display

2.8 Inch LCM Display

8bit TFT LCD Module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028B126-IPS

Contact Us

Request A Quote
Product Details
Resolution:
240x320
Interface:
MCU 8bit
Driver IC:
ST7789V
Brightness (cd/m²):
300 Nit
Viewing Angle:
IPS All View Angle
Display Area:
43.20(H)x57.60(V)mm
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability
25,000 PCS per day
Product Description

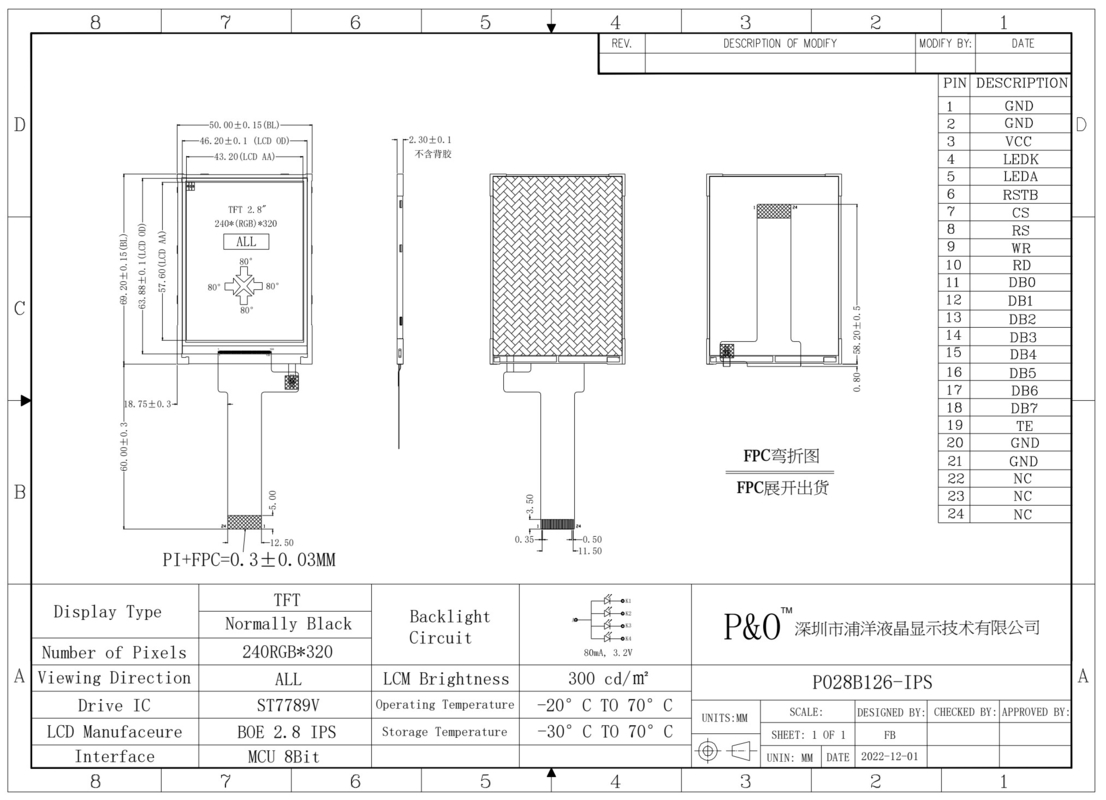

Parameter:

Item Specification
Model P028B126-IPS
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Display area 43.20(H)x57.60(V)
Pixel pitch 0.180(H)x0.180(V)mm
Pins 24 pins
Outline Dimension 50.00x69.20x2.30mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Gray inversion direction --
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 1200:1
Surface treatment --
Interface MCU 8bit
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70℃
Storage Temperature -30~80℃



There are several medical devices that use 2.8 inch TFT LCDs with RTP, including:

Handheld Patient Monitors: These devices are used for monitoring vital signs such as blood pressure, heart rate, and oxygen saturation. A 2.8 inch TFT LCD with RTP can provide a clear display of the patient's vital signs, and the touch panel can be used to input data and adjust settings.

Portable Ultrasound Machines: These devices are used for imaging internal organs and tissues. A 2.8 inch TFT LCD with RTP can provide a clear display of the ultrasound image, and the touch panel can be used to adjust settings and perform measurements.

Portable ECG Monitors: These devices are used for recording and analyzing the electrical activity of the heart. A 2.8 inch TFT LCD with RTP can display the ECG waveform and allow the user to input patient information and adjust settings.

Handheld Pulse Oximeters: These devices are used for measuring the oxygen saturation of the blood. A 2.8 inch TFT LCD with RTP can display the oxygen saturation level and pulse rate, and the touch panel can be used to input patient information and adjust settings.

Portable Blood Glucose Meters: These devices are used for measuring blood glucose levels in diabetic patients. A 2.8 inch TFT LCD with RTP can display the glucose level and allow the user to input patient information and adjust settings.


Polcd 2.8 Inch LCM Display IPS Screen 240x320 Resolution MCU 8bit interface 24pin TFT LCD Module 0Polcd 2.8 Inch LCM Display IPS Screen 240x320 Resolution MCU 8bit interface 24pin TFT LCD Module 1Polcd 2.8 Inch LCM Display IPS Screen 240x320 Resolution MCU 8bit interface 24pin TFT LCD Module 2
