Name: Polcd Mini Tft Lcd Module Display 3.97 Inch 4 Inch 480*480
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P040H001-CTP
Availability: InStock

Home > Products > TFT LCD Display >

Polcd Mini Tft Lcd Module Display 3.97 Inch 4 Inch 480*480

polcd tft lcd module display

3.97 inch tft lcd module display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P040H001-CTP

Request A Quote

Product Details

Size (inch):

3.97 Inch 480*480

Brightness (cd/m²):

350

Interface:

RGB 18bit

Driver IC:

ST7701S

PIN:

40 Pin

Viewing Direction(eye):

IPS Full View Angle

Contrast Ratio:

800:1

Display Area:

71.856(H)x70.176(V)mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd 4 Inch Lcd 480*800 RGB Interface IPS Viewing Display Small Size Lcd Screen For Industrial Field

Get Best Price

Video

SPI ILI9342C Serial Port Dots Matrix Touch Screen TFT Display 2.31 Inch IPS LCD 320x240

Get Best Price

Video

Polcd Custom 3.95 Inch 320x480 Ips Tft Lcd RGB Interface Liquid Crystal Display Module With Touch

Get Best Price

Polcd 1024X600 10.1 Inch Capacitive Touch Screen EK79001 TFT LCD Display

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

square screen all view angle 262k color 18 bit rgb interface ctp touch lcd display

TFT Display Description:

A 3.97 inch TFT LCD with IPS technology provides wider viewing angles and higher contrast ratios for clearer and more realistic image display, making it suitable for various applications.

Parameter:

TFT LCD	Specification
Model No.	P040H001-CTP
Screen Size	3.97 inch
Number of Pixel	480RGB(H)x480(V)
Display area	71.856(H)x70.176(V)mm
Pixel pitch	0.1497(H)x0.1462(V)mm
Pin	40 pin

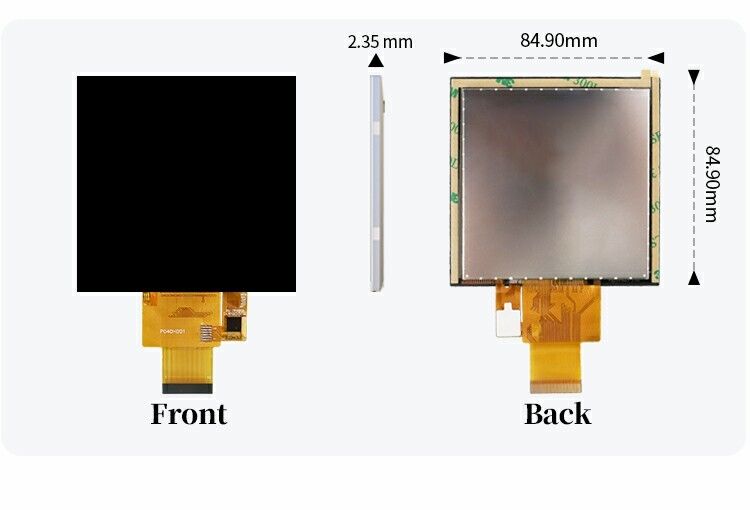

Outline Dimension	84.90x84.90x2.35mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black/Transmissive
Viewing Direction(eye)	ALL
Display Color	262k
Luminance(cd/m²)	350 nit
Contrast Ratio	800:1
Interface	RGB 18BIT
Back-light	LED Side-light type
Drive IC	ST7701S
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Applications

A 3.97 inch TFT LCD is a small-sized display with a high resolution and excellent color performance. It is widely used in various applications, such as portable devices, automotive electronics, medical equipment, and industrial control systems. In portable devices, it can be used as a display screen for smartphones, digital cameras, and portable media players. In automotive electronics, it can be used as a display screen for car infotainment systems, rearview cameras, and GPS navigation systems. In medical equipment, it can be used as a display screen for patient monitors, ultrasound machines, and endoscopes. In industrial control systems, it can be used as a display screen for PLCs, HMIs, and data loggers.
