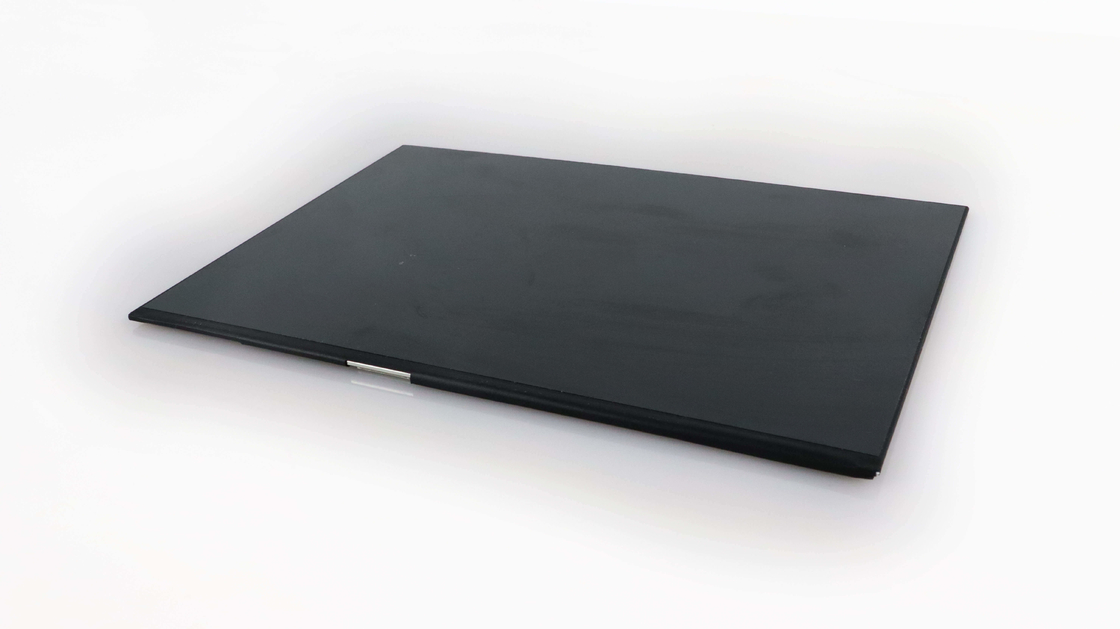

10.5 Inch Lcd Tft Display Module 1920x1280 Pixels NV105WAM-N31

10.5 Inch Lcd Tft Display Module 1920x1280 Pixels NV105WAM-N31

10.5 inch lcd tft display module

lcd tft display module 1920x1280

Place of Origin:

Shenzhen, China

Brand Name:



RoHS, ISO9001

Model Number:


Contact Us

Request A Quote
Product Details
Size (inch):
10.5 Inch
1920 (H) × 1280 (V) Pixels
Active Area:
222.048(H) × 148.032 (V) Mm
Color Gamut:
TYP:sRGB 100%, Min:sRGB:96%.
Display Color:
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description


NV105WAM-N31 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 10.51 inch diagonally measured active area with Full-HD+ resolutions (1920 horizontal by 1280 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M(8bit) colors and color gamut sRGB100%. The TFT-LCD panel used for this module is a low reflection and higher color type. Therefore, this module is suitable for Notebook PC. All input signals are eDP1.4a interface compatible.



Notebook PC (Wide type)



Model NV105WAM-N31
Number of Pixel

1920 (H) × 1280 (V) Pixels

(1 pixel = R + G + B dots)

Active area 222.048(H) × 148.032 (V) mm
Pixel pitch 115.65(H) × 115.65 (V) um
Pixel arrangement RGB Vertical stripe
Color gamut TYP:sRGB 100%, Min:sRGB:96%.
Display Color 16.7M(8bit)
Display mode Normally black

Dimensional outline


227.048± 0.4 (H)*157.732± 0.4(V)(W/ FPC bendin

g)*1.95 (Max)(W/O PCB)

227.048± 0.4 (H)*157.732± 0.4(V)(W/ FPC bendin

g)*4.5 (Max)(W/ PCB)

Surface treatment HC
Surface hardness 2H
Back-light Bottom edge side, 1-LED lighting bar type



PD : 0.42(Max) W

PBL : 1.69(Max) W

PTotal : 2.08(Max) W

Weight 115(max)g



1. 2 lane eDP interface with 2.7Gbps link rates

2. Thin and light weight

3. 16.7M (8bit) color depth, color gamut SRGB 100%

4. Single LED lighting bar (Bottom side/Horizontal Direction)

5. Data enable signal mode

6. Green product (RoHS & Halogen free product)

7. Low driving voltage and low power consumption

8. On board EDID chip

9. DPCD Version 1.2

10. Function:PSR2+LRR/BIST/Instant on10.5 Inch Lcd Tft Display Module 1920x1280 Pixels NV105WAM-N31 0

10.5 Inch Lcd Tft Display Module 1920x1280 Pixels NV105WAM-N31 110.5 Inch Lcd Tft Display Module 1920x1280 Pixels NV105WAM-N31 2
