Name: 13.3 Inch NV133FHM-N49 LCD Laptop Screen Panel 60Hz 1920x1080 FHD IPS TFT Module Display For Notebook
Brand: Shenzhen P&O Technology Co., Ltd
SKU: NV133FHM-N49
Availability: InStock

Home > products > TFT LCD Module >

13.3 Inch NV133FHM-N49 LCD Laptop Screen Panel 60Hz 1920x1080 FHD IPS TFT Module Display For Notebook

60Hz Laptop Screen Panel

Notebook LCD Laptop Screen Panel

13.3 inch Laptop Screen Panel

Place of Origin:

Shenzhen, China

Brand Name:

BOE

Certification:

RoHS

Model Number:

NV133FHM-N49

Request A Quote

Product Details

Size (inch):

13.3 Inch

Resolution:

1920x1080

Frame Rate:

60Hz

Active Area:

293.76(W)x165.24(H)mm

Brightness (cd/㎡):

300 Nit

Signal Pins:

30 Pins

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

50 cm * 40 cm * 16 cm

Delivery Time

5-8 working days

Payment Terms

T/T, L/C, Credit card, PayPal

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

Product name	Color TFT LCD Screen
Model	NV133FHM-N49
Diagonal Size	13.3"
Resolution	1920(RGB)x1080, FHD 166PPI
Designed For	Laptop
Panel Type	a-Si TFT·LCD,LCM

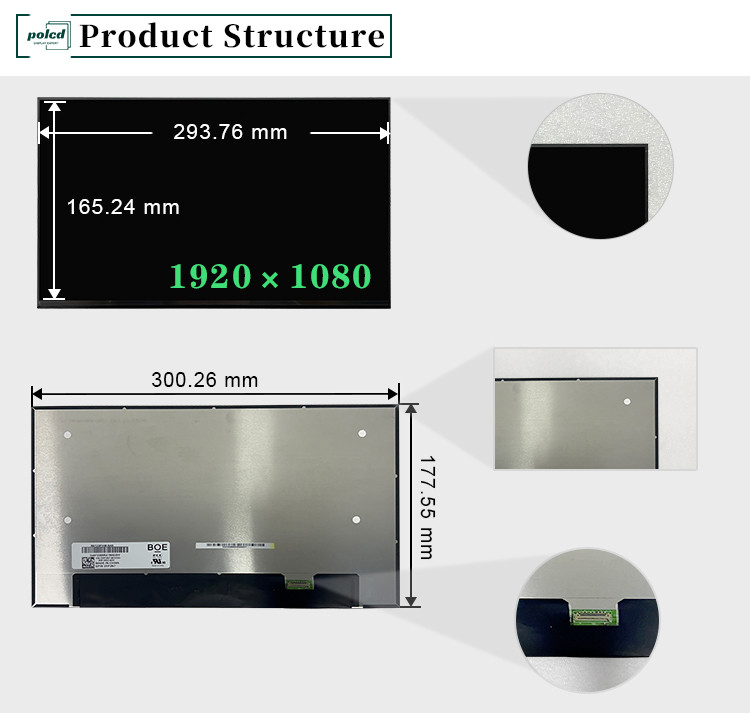

Active Area	293.76(W)x165.24(H)mm
Outline Dim.	300.26(H)x177.55(V) x4.5(D) mm
Pixel Format	RGB Vertical Stripe
Luminance	300 cd/m² (Typ.)
Contrast Ratio	800:1(Typ.) (TM)
View Direction	Symmetry
Viewing Angle	IPS 85/85/85/85(Typ.)(CR≥10)
Support Color	16.7M 72% NTSC
Form Style	Slim (PCBA Bent,T≤3.0mm)
Frame Rate	60Hz
Treatment	Antiglare,Hard coating (3H)
Response Time	30 (Typ.)(Tr+Td)
Operating Mode	ADS, Normally Black, Transmissive
Light Source	WLED [9S4P],15K hours, With LED Driver
Touch Panel	No-touch
Interface Type	eDP (2 Lanes),eDP1.3,HBR1(2.7G/lane),30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~50℃; Storage Temperature: -20~60℃

More models of 13.3 inch

13.3”	1366x768	LP133WH2-SPB1 / HB133WX1-402
13.3”	1920x1080	NV133FHM-N4A / NV133FHM-N57 / LM133LF5L01 / LQ133M1JW03 / M133NVF3 R1 / NE133FHM-N56
