Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P050B028-IPS-CTP
Contact Us

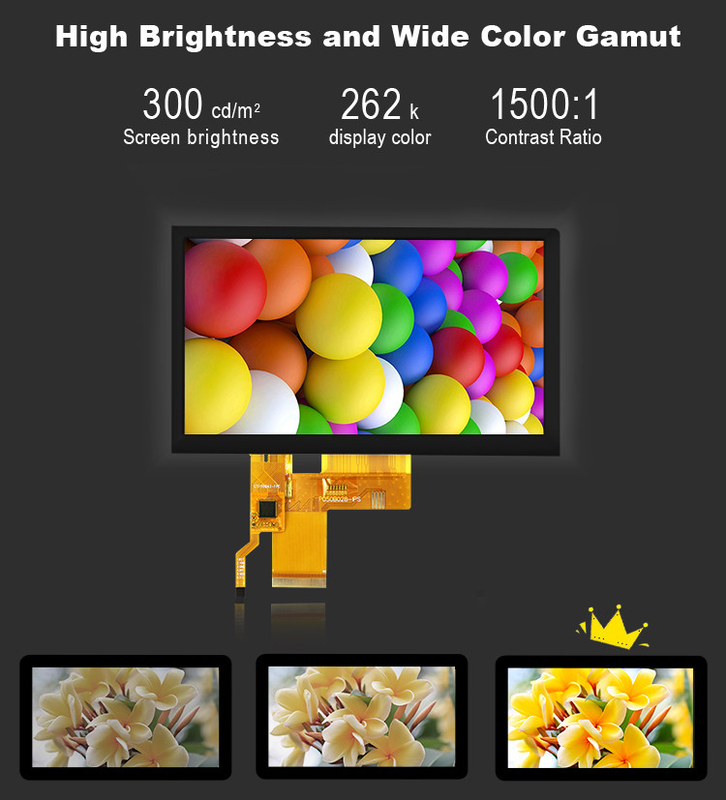

Parameter:
| TFT LCD | Specification |
| Model No. | P050B028-IPS-CTP |
| Screen Size | 5.0 inch |
| Number of Pixel | 800RGB(H)x480(V) |
| Pin | 40 pin |
| Display area | 108.00(H)x64.80(V)mm |
| Pixel pitch | 45(H)x3x135(V)um |
| Outline Dimension | 120.70x75.80x4.50mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262k |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | Typ 1500:1 Min 1000:1 |
| Interface | RGB 24bit |
| Back-light | LED Side-light type |
| Drive IC | ST7262 |
| Operation Temperature | -20~70 ℃ |
| Storage Temperature | -30~80 ℃ |
The mass production process
The mass production process for a 5.0-inch TFT LCD with CTP technology typically involves several stages. First, the LCD panel is fabricated in a cleanroom environment, ensuring that it meets high-quality standards. Next, the capacitive touch panel is produced separately and then laminated onto the LCD panel using a specialized bonding process.
After the lamination process, the LCD with CTP is subjected to a series of tests and inspections to ensure that it meets the required performance and quality standards. This includes functional tests to ensure that the touch panel is responsive and accurate, as well as visual inspections to identify any defects or imperfections.
Once the LCD with CTP has passed all the required tests and inspections, it is packaged and shipped to the customer in bulk quantities. Throughout the production process, strict quality control measures are in place to ensure that the final product meets the highest standards of quality and reliability.
