Name: Polcd 3.2 inch 240x320 pixel size Small TFT Display ILI9488 Driver ic Lcd
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P032H005
Availability: InStock

Home > Products > Small TFT Display >

Polcd 3.2 inch 240x320 pixel size Small TFT Display ILI9488 Driver ic Lcd

3.5inch Small TFT Display

ILI9488 Small TFT Display

ILI9488 TFT LCD Touch Screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P032H005

Request A Quote

Product Details

Number Of Pixel:

240x320

Screen Size:

3.2 Inch

Display Area:

48.60(H)x64.80(V)

Angle Of View:

12' O Clock

Interface:

MCU 8/16bit SPI 3/4Wire

Driver Ic:

ILI9341V

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

40,000 PCS per day

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display

Get Best Price

Video

Polcd 2.8 inch TFT Display 240x320 Pixel IPS Screen Panel 37 Pin MCU ST7789V TFT LCD Module

Get Best Price

Video

Polcd OEM 2.8" tft lcd 240x320 262K Color ST7789V driver IC MCU 18bit interface Customized LCD Screen

Get Best Price

Video

Polcd Small LCD 2.8'' 240x320 Industrial IPS Color Screen Full View 2.8 inch Parallel Port TFT LCD Display

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Description:

3.2'' TFT LCD module is a versatile and reliable display technology that offers high-quality display performance, low power consumption, and durability. Its wide range of applications and customization options make it an ideal choice for a variety of electronic devices.

Parameter:

Model	P032H005
Screen Size	3.2 inch
Number of Pixel	240RGB(H)x320(V)
Display area	48.60(H)x64.80(V)mm
Pixel pitch	0.2025(H)x0.2025(V)mm
Pins	40 pins

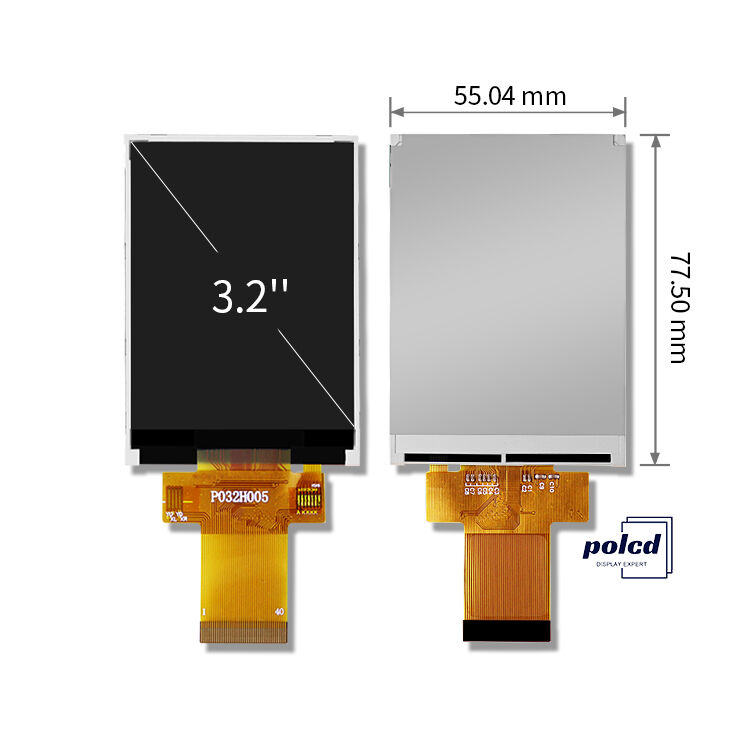

Outline Dimension	55.04x77.50x2.50mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	12 0'CLOCK
Display Color	262K

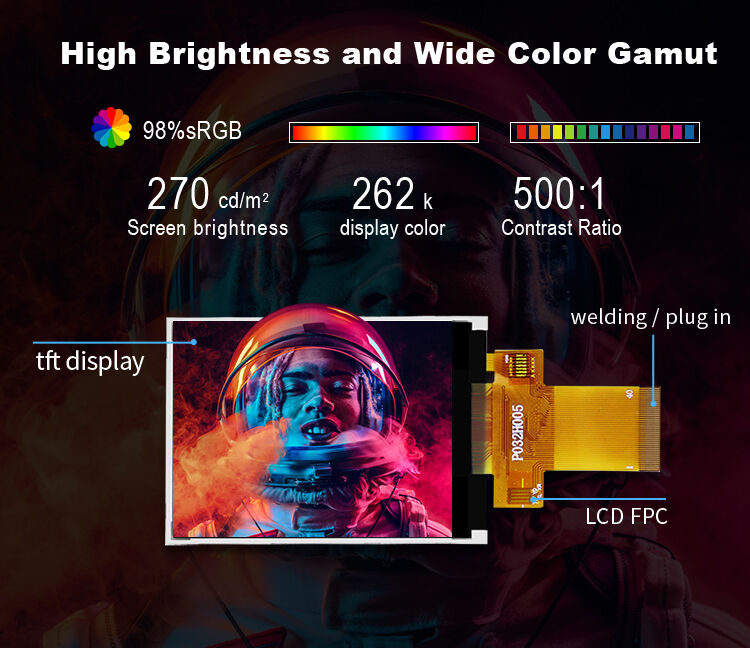

Luminance(cd/m²)	270 nit
Contrast Ratio	500:1
Interface	MCU 8/16bit SPI 3/4Wire
Back-light	LED Side-light type
Drive IC	ILI9341V

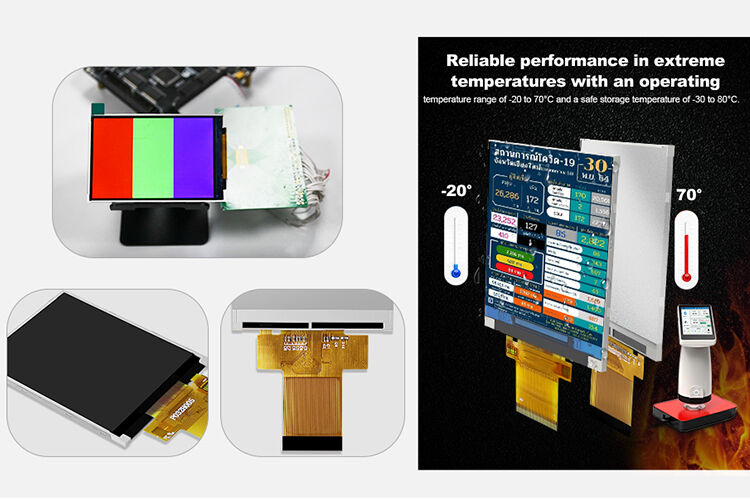

Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Features and advantages:

Size and resolution: The 3.2 inch TFT LCD has a diagonal size of 3.2 inches and typically has a resolution of 240x320 pixels, which provides a high-quality display for various applications.

Color display: The TFT LCD can display up to 262,144 colors, providing accurate color representation and making it ideal for displaying images and videos.

Wide viewing angle: The TFT LCD typically has a wide viewing angle, allowing for clear viewing from different angles without distortion or color shift.

Touch screen support: The TFT LCD can support capacitive touch screen input, allowing users to select, slide, and zoom with their fingers.

Low power consumption: TFT LCD technology typically has low power consumption, which is important for devices that run on battery power.

Durability: TFT LCDs are durable and can withstand shock and vibration, making them suitable for use in various applications, including handheld devices, automotive displays, and medical equipment.

Customization: The 3.2 inch TFT LCD can be customized to meet specific application requirements, including different sizes, resolutions, and features.
