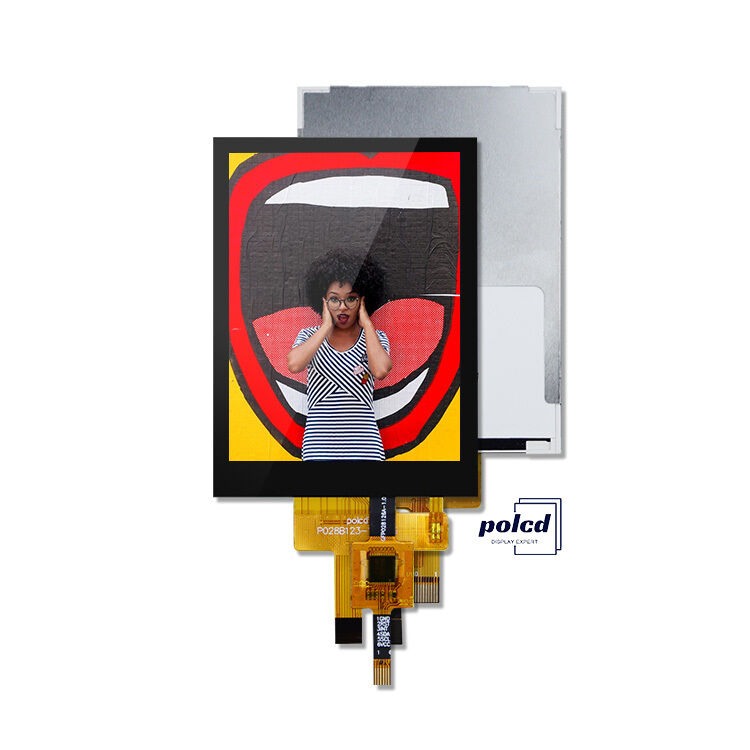

Name: Polcd 2.8'' 15 Pin 240x320 IPS All View Angel TFT LCD Touch Screen Display Panel
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P028B123-10-IPS-CTP
Availability: InStock

Home > Products > Small TFT Display >

Polcd 2.8'' 15 Pin 240x320 IPS All View Angel TFT LCD Touch Screen Display Panel

2.8'' TFT LCD Touch Screen

IPS TFT LCD Touch Screen

240x320 Small TFT Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028B123-10-IPS-CTP

Request A Quote

Product Details

Number Of Pixel:

240RGB(H)x320(V)

Screen Size:

2.8 Inch

Display Area:

43.20(H)x57.60(V)

Brightness (cd/m²):

300

Interface:

SPI / MCU / RGB

Driver Ic:

ST7789V

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

Sample packing box 20*18*13cm

Delivery Time

5-8 working days

Payment Terms

T/T, L/C, Credit card, PayPal

Supply Ability

500,000 piece per week

Polcd TFT LCD Manufacturer 2.8 Inch TFT LCD Module 240x320 High Resolution TFT Display

Get Best Price

Video

Polcd 18 Pin 1.69 Inch Small TFT Display ST7789V 240x240 IPS LCD

Get Best Price

Video

Polcd 4.5 Inch TFT LCD Module 480*854 Resolution 300 Nits RGB 24bit Interface 4.5" LCD Display

Get Best Price

Video

Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Description:

This is a 2.8-inch TFT LCD display with IPS technology and a capacitive touch panel (CTP). It provides clear and accurate visuals with responsive touch control, making it ideal for various applications, from consumer electronics to industrial equipment.

Parameter:

Model	P028B123-10-IPS-CTP
Screen Size	2.8 inch
Number of Pixel	240RGB(H)x320(V)
Pin	10 pin
Display area	43.20(H)x57.60(V)mm
Pixel pitch	0.180(H)x0.180(V)mm

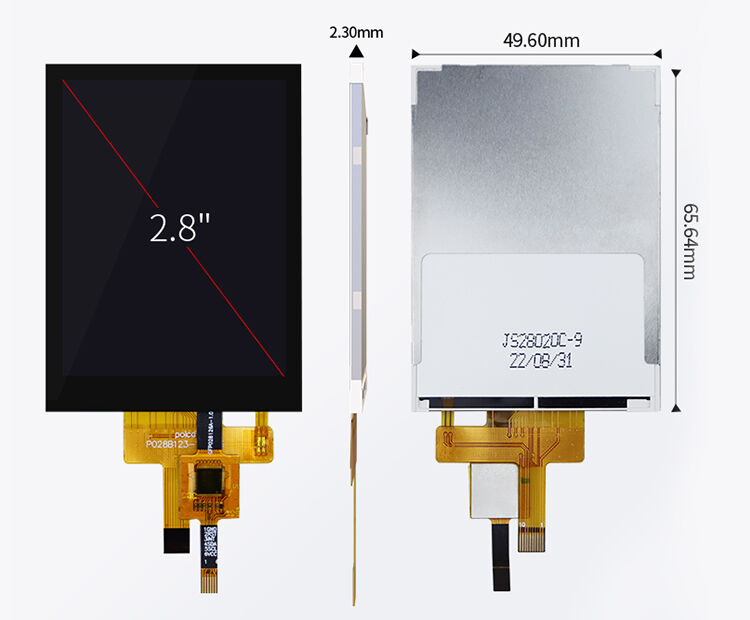

Outline Dimension	50.00x69.20x3.10mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	1200:1
Interface	4wire SPI
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃
