SPI ILI9342C Serial Port Dots Matrix Touch Screen TFT Display 2.31 Inch IPS LCD 320x240

SPI ILI9342C Serial Port Dots Matrix Touch Screen TFT Display 2.31 Inch IPS LCD 320x240

ILI9342C Touch Screen TFT Display

IPS Touch Screen TFT Display

320x240 Medical LCD Display

Place of Origin:

Shenzhen, China

Brand Name:



RoHS, ISO9001

Model Number:


Contact Us

Request A Quote
Product Details
Size (inch):
Brightness (cd/m²):
MCU 8/16BIT, SPI3/4wire, RGB 18BIT
Driver Ic:
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

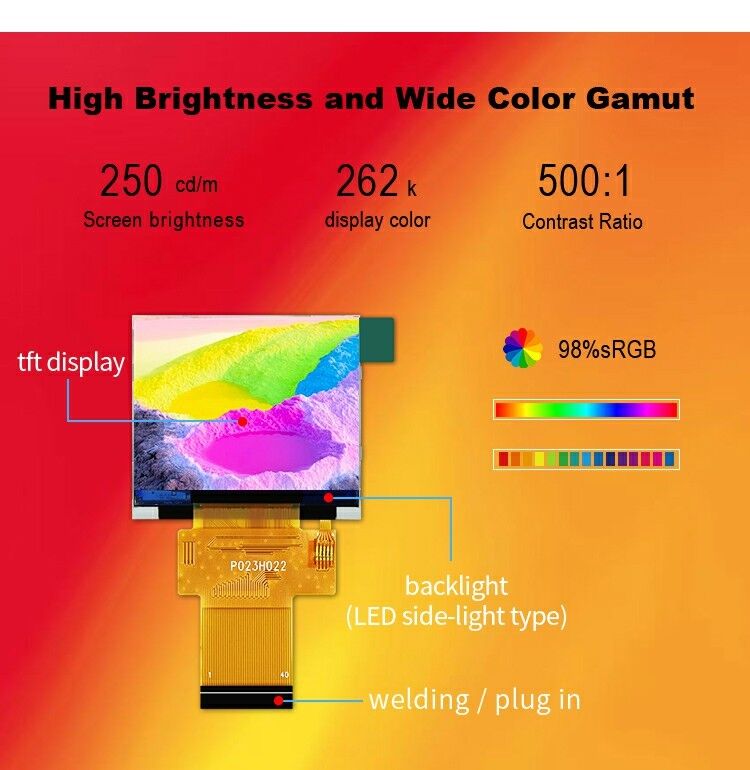

Polcd 2.31 Inch IPS LCD 320x240 SPI ILI9342C Serial Port Touch Screen Dots Matrix TFT Display


This Medical LCD Display is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 2.31 inch then our lcd is just what you need. Improve your product design by adding our 320 * 240 resolution product. QC department measured the luminance is 300 nits under normal operating.


Item Specification
Model P023H022
Screen Size 2.31 inch
Number of Pixel 320RGB(H)x240(V)
Display area 46.75(H)x35.06(V)mm
Pixel pitch 0.1461(H)x0.1461(V)mm
Pins 40 pins
Outline Dimension 50.96x45.80x2.40mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally White
Viewing Direction(eye) 12 0'CLOCK
Gray inversion direction --
Display Color 262K
Luminance(cd/m2) 250 nit
Contrast Ratio 500:1
Surface treatment --
Interface MCU8/16BIT SPI3/4wire RGB18BIT
Back-light LED Side-light type
Drive IC ILI9342C
Operation Temperature -20~70℃
Storage Temperature -30~80℃
Weight --


This type of RGB 18bit can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ILI9342C. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).


SPI ILI9342C Serial Port Dots Matrix Touch Screen TFT Display 2.31 Inch IPS LCD 320x240 0


Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.

Q: How long can I get the goods?
A: It depends on the quantity. Our inventory is mainly raw materials, semi-finished and a small number of finished products. Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days include producing; Large batch delivery takes 20-30 working days. We will list the time cost for you before order.

Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
