Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P043B018-CTP
Contact Us
Video
Video
Video
Video

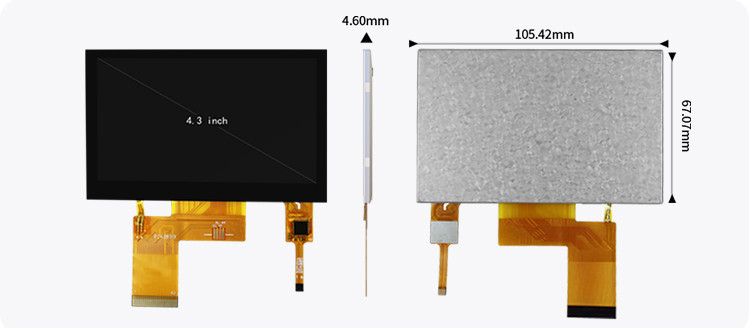

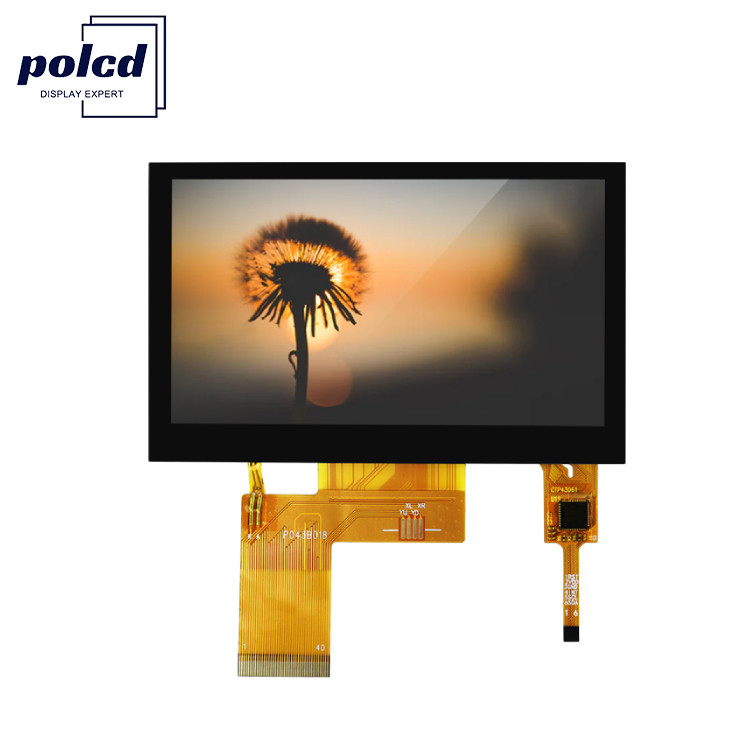

What can we expect from this one? Before this question it is better to know some information about this LCD Touch Panel. Screen size is 4.3 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 800 * 480, clear enough for most scenes to be used. 280 nits allow this lcd to work well indoors.
| P/N | P043B018-CTP |
| Size(inch) | 4.3 |
| Resolution | 800*480 |
| Brightness(cd/m²) | 280 |
| Interface | RGB 24bit |
| Driver Ic | ST7262E43 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |
Supported by RGB 24bit, this type of TFT LCD can be used in many applications. ST7262E43 is the driver IC of the tft lcd. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.
Q: Is there a Touch Panel (Touch Screen) on the display?
A: We can offer you the RTP (Resistive Touch Panel) and CTP (Capacitive Touch Panel) if you need.
Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.
Q: Do you have products in stock? How long will it take for delivery?
A: Our inventory is mainly raw materials, semi-finished and a small number of finished products. After payment, sample available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 3-4 weeks. Our sales will serve you these details before shipping.
Q: What if the goods get lost/ damaged on the way?
A: We strongly suggest to buy insurance in case of any problem. We will discuss these details with you before order.
