Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD

Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028B151-IPS

Contact Us

Request A Quote
Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD
Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD
Product Details
Size (inch):
2.8
Resolution:
240*320
Brightness (cd/m²):
350 Nit
Display Area:
43.20(H)x57.60(V)mm
Interface:
4wire SPI
Driver Ic:
ST7789P3-G6
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability
25,000 PCS per day
RELATED PRODUCTS
Good price Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD online Video

Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD

Get Best Price
Good price Polcd 2.8 inch matrix 240x320 TFT Display 20 Pin FPC LCM ST7789 Customizable Manufacturer LCD Module online Video

Polcd 2.8 inch matrix 240x320 TFT Display 20 Pin FPC LCM ST7789 Customizable Manufacturer LCD Module

Get Best Price
Good price Polcd 1.9 Inch 170*320 ST7789P3-G6 SPI Bar TFT LCD Module Screen 8 Pin IPS Vertical LCM Display online Video

Polcd 1.9 Inch 170*320 ST7789P3-G6 SPI Bar TFT LCD Module Screen 8 Pin IPS Vertical LCM Display

Get Best Price
Good price Polcd 3.5 Inch IPS Viewing Angle 320x480 TFT Display Mipi Interface 3.5'' LCD Screen Modules online Video

Polcd 3.5 Inch IPS Viewing Angle 320x480 TFT Display Mipi Interface 3.5'' LCD Screen Modules

Get Best Price
Contact Us
00-86-13714394335
anna@polcd.com
86-755-21011746
Contact Now
Product Description

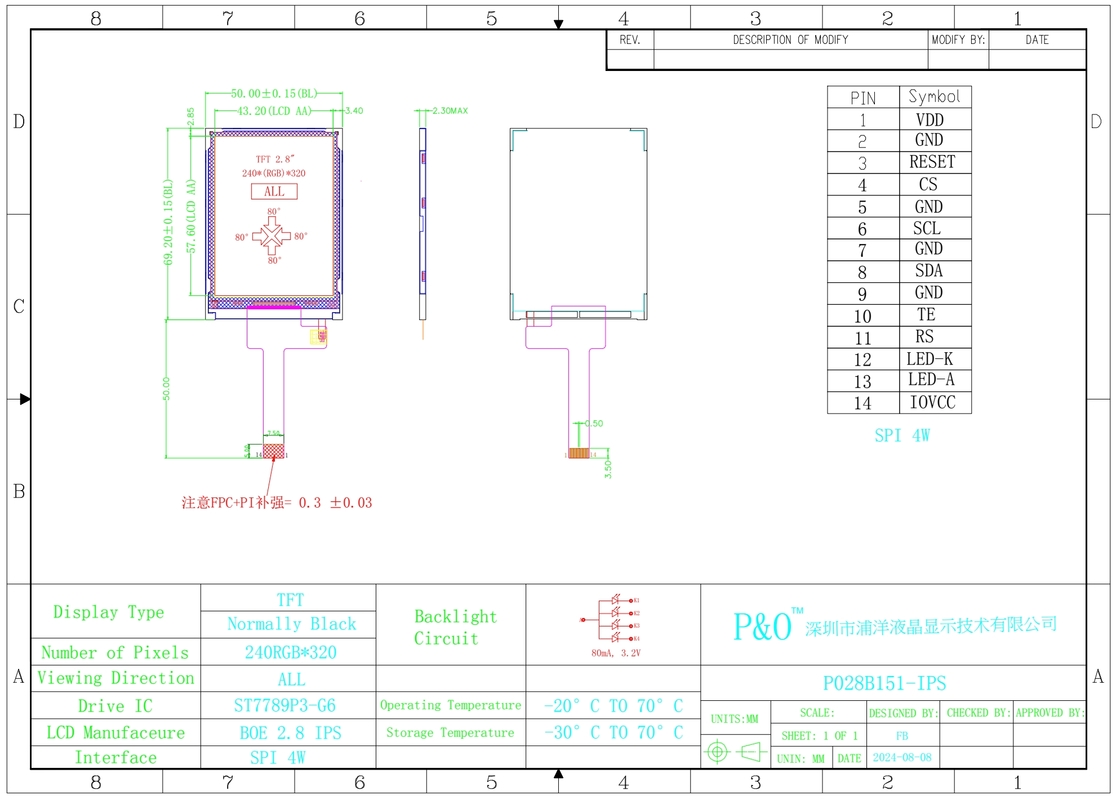

Parameter:

Model P028B151-IPS
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Display area 43.2(H)x57.6(V)mm
Pixel pitch 0.18(H)x0.18(V)mm
Pins 14 pins
Outline Dimension 50.00x69.20x2.30mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 350 nit
Contrast Ratio 1200:1
Interface 4wire SPI
Back-light LED Side-light type
Drive IC ST7789P3-G6
Operation Temperature -20~70℃
Storage Temperature -30~80℃


Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD 0

Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD 1
