Name: Polcd 300 Nit 3.5 Inch Capacitive Touch Screen ILI9488 Touch Screen Tft Lcd
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P035C018-TP
Availability: InStock

Home > Products > TFT Resistive Touch Screen >

Polcd 300 Nit 3.5 Inch Capacitive Touch Screen ILI9488 Touch Screen Tft Lcd

250 Nit 3.5 Inch Capacitive Touch Screen

3.5 Inch Capacitive Touch Screen ILI9488

ILI9488 Touch Screen Tft Lcd

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P035C018-TP

Request A Quote

Product Details

Size (inch):

3.5

Resolution:

320*480

Brightness (cd/m²):

300

PIN:

50 Pin

Driver Ic:

ILI9488

Interface:

RGB MCU SPI

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd Brightness 300 4.3 Inch Tft Lcd Display 800X480 TFT Resistive Touch Screen

Get Best Price

Video

Polcd RGB 24 Bit 4.3 Inch Touch Screen ST7262E43 800x480 Lcd Display

Get Best Price

Video

Polcd ST7262E43 4.3 Inch Tft Lcd Module 280 40Pin Lcd Display Indoors

Get Best Price

Video

Polcd 300 Brightness 4.3 Inch Capacitive Touch Screen 24 Bit 480x272 Tft

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

What can we expect from this one? Before this question it is better to know some information about this TFT Touch Screen. Screen size is 3.5 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 320 * 480, clear enough for most scenes to be used. 250 nits allow this lcd to work well indoors.

Parameter:

Model	P035C018-TP
Screen Size	3.5 inch
Number of Pixel	320RGB(H)x480(V)
Display area	48.96(H)x73.44(V)mm
Pixel pitch	0.153(H)x0.153(V)mm
Pin	50 pin

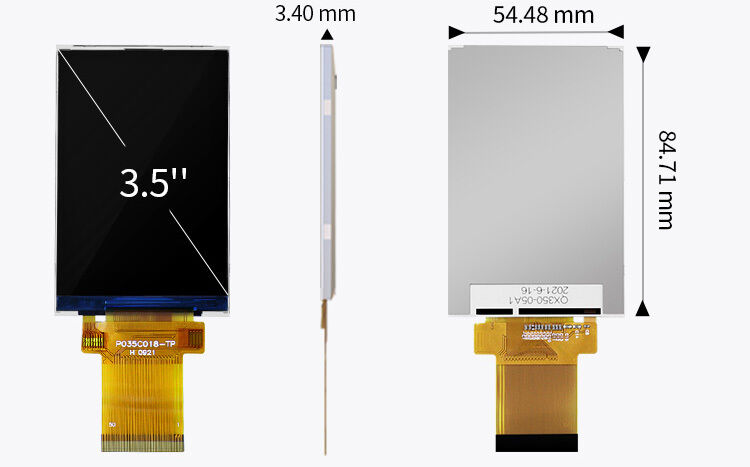

Outline Dimension	54.48x84.71x2.25mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	12 0'CLOCK
Display Color	262k
Luminance(cd/m²)	300 nit
Contrast Ratio	500:1
Interface	MCU 8/16bit RGB 18bit SPI 3/4wire
Back-light	LED Side-light type
Drive IC	ILI9488

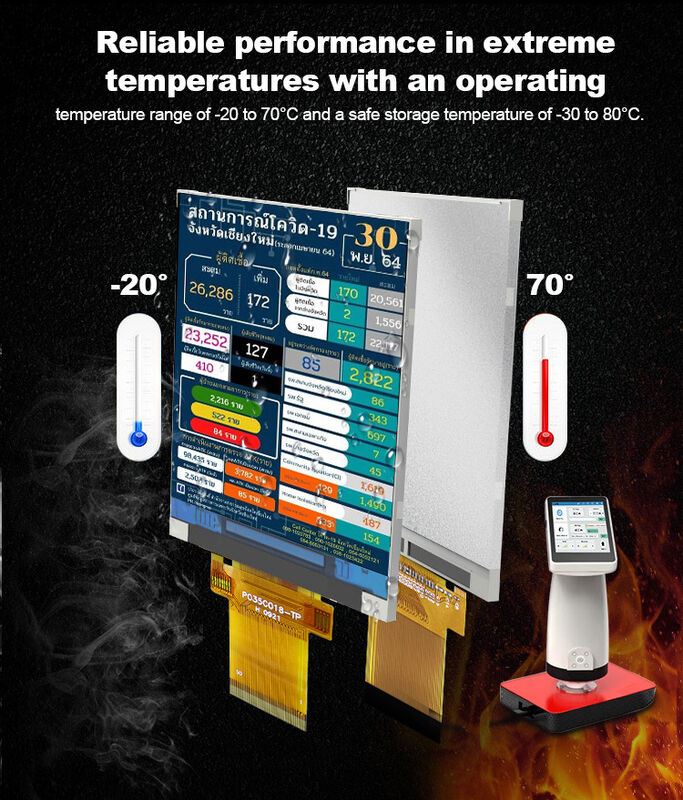

Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Supported by MCU 16bit, this type of TFT LCD can be used in many applications. ILI9488 is the driver IC of the tft lcd. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.

Polcd 300 Nit 3.5 Inch Capacitive Touch Screen ILI9488 Touch Screen Tft Lcd 0

Q: Is there a Touch Panel (Touch Screen) on the display?
A: We can offer you the RTP (Resistive Touch Panel) and CTP (Capacitive Touch Panel) if you need.

Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.

Q: How long can I get the goods?
A: It depends on the quantity. Our inventory is mainly raw materials, semi-finished and a small number of finished products. Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days include producing; Large batch delivery takes 20-30 working days. We will list the time cost for you before order.

Q: Can I trust the quality? We want good quality first.
A: Our company has a professional Quality Control Department, and all products are 100% inspected prior to ship. We welcome all the customers from the wolrd visiting our factory for checking any time.
