Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P028H025-V2
Contact Us
Video

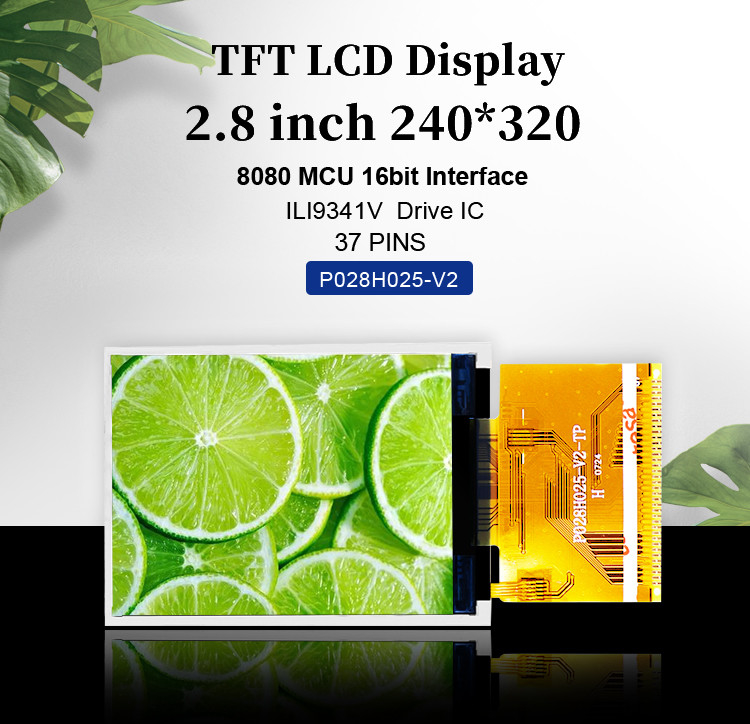

New published LCD Touch Panel for commercial and industrial use. Screen size is 2.8 inch. A very common and hot selling size for small size TFT display. Improve your product design by adding our 240 * 320 resolution product. 300 nits allow this lcd to work well indoors.

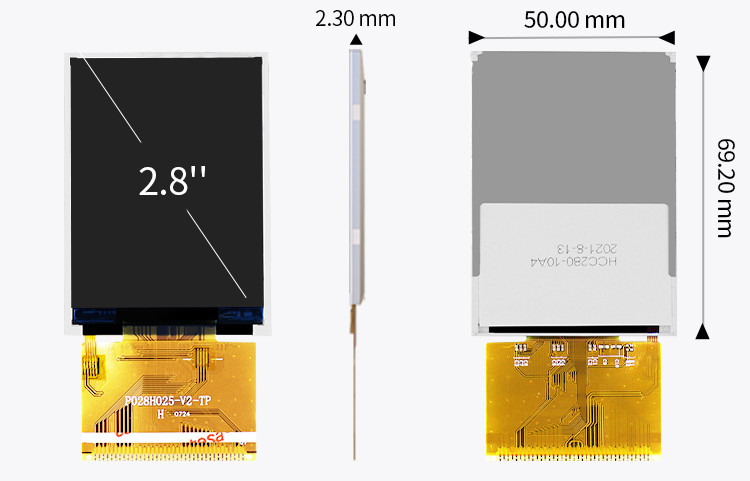

| P/N | P028H025-V2 |
| Size(inch) | 2.8 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 300 |
| Interface | 8080 MCU 16bit |
| Driver Ic | ILI9341V |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 37 |
The Interface of this LCD is 8080 MCU 16bit. We can also customize other types of interfaces and FPCs for you. ILI9341V is the driver IC of the tft lcd. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).
Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: Can I pay the order with credit cards or PayPal?
A: We accept PayPal and credit card for sample, T/T paid for mass order. We also accept advanced percentage (usually 30% before producing) for large orders.
Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.
Q: What if the goods get lost/ damaged on the way?
A: We strongly suggest to buy insurance in case of any problem. We will discuss these details with you before order.
