Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P028H025-V2
Contact Us
Video
Video

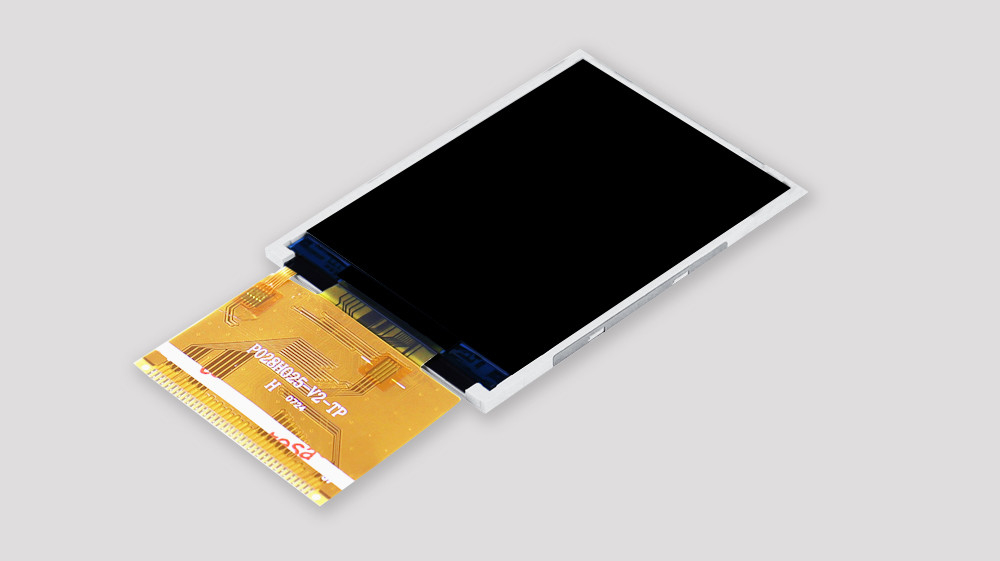

This LCD Touch Panel is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 2.8 inch then our lcd is just what you need. Improve your product design by adding our 240 * 320 resolution product. QC department measured the luminance is 300 nits under normal operating.

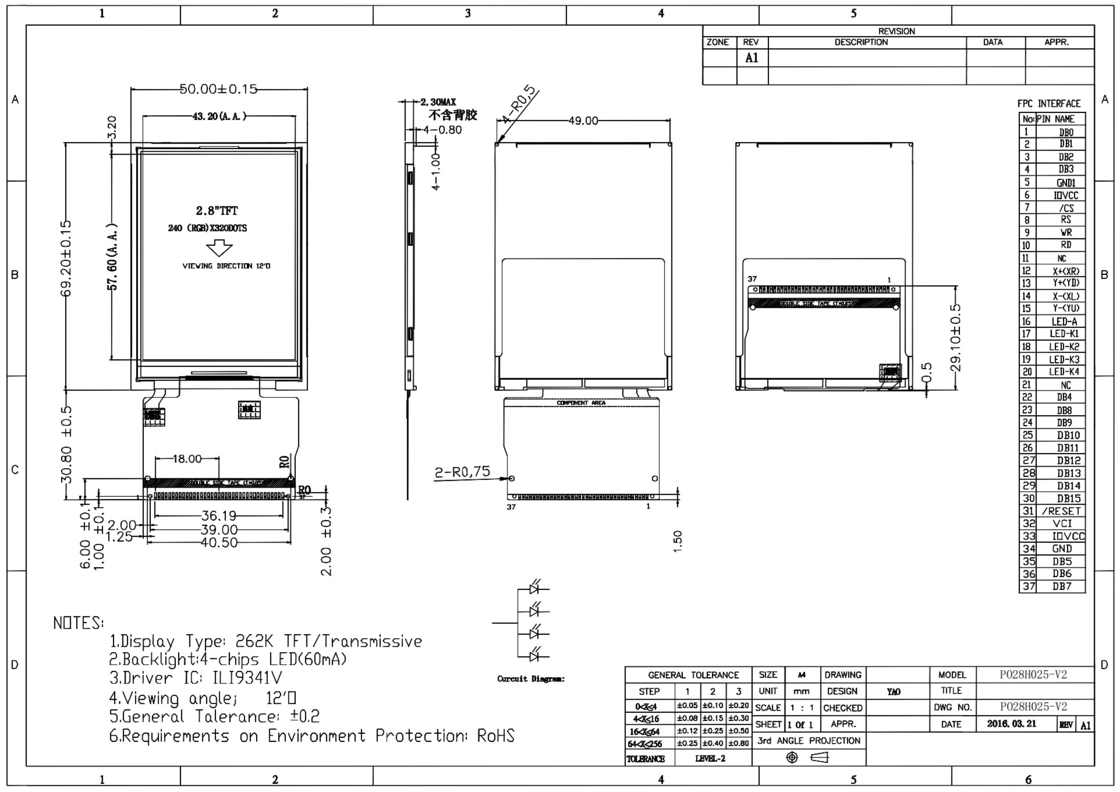

Parameter:
| Model | P028H025-V2 |
| Screen Size | 2.8 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 43.20(H)x57.60(V)mm |
| Pixel pitch | 0.06(H)x0.18(V)mm |
| Pins | 37 pins |

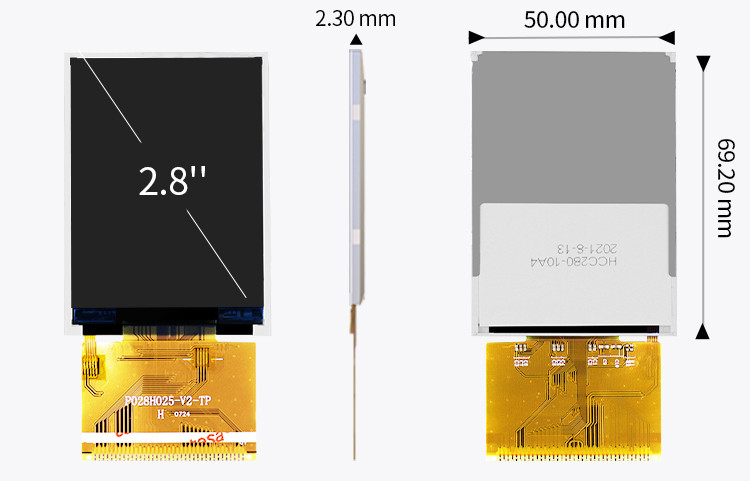

| Outline Dimension | 50.00x69.20x2.30mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally White |
| Viewing Direction(eye) | 12 0'CLOCK |
| Display Color | 262K |
| Luminance(cd/m2) | 270 nit |
| Contrast Ratio | 500:1 |
| Interface | MCU 16bit |
| Back-light | LED Side-light type |
| Drive IC | ILI9341V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
This type of 8080 MCU 16bit can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ILI9341V. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).
Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: Can I pay the order with credit cards or PayPal?
A: We accept PayPal and credit card for sample, T/T paid for mass order. We also accept advanced percentage (usually 30% before producing) for large orders.
Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.
Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
