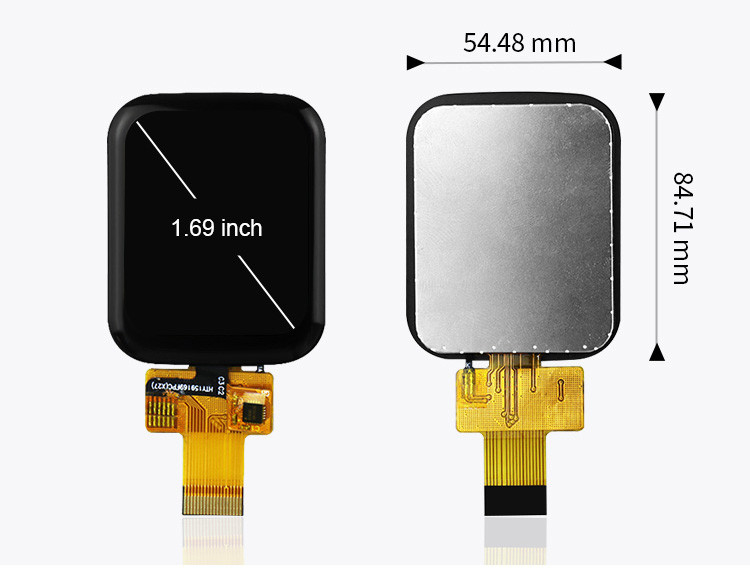

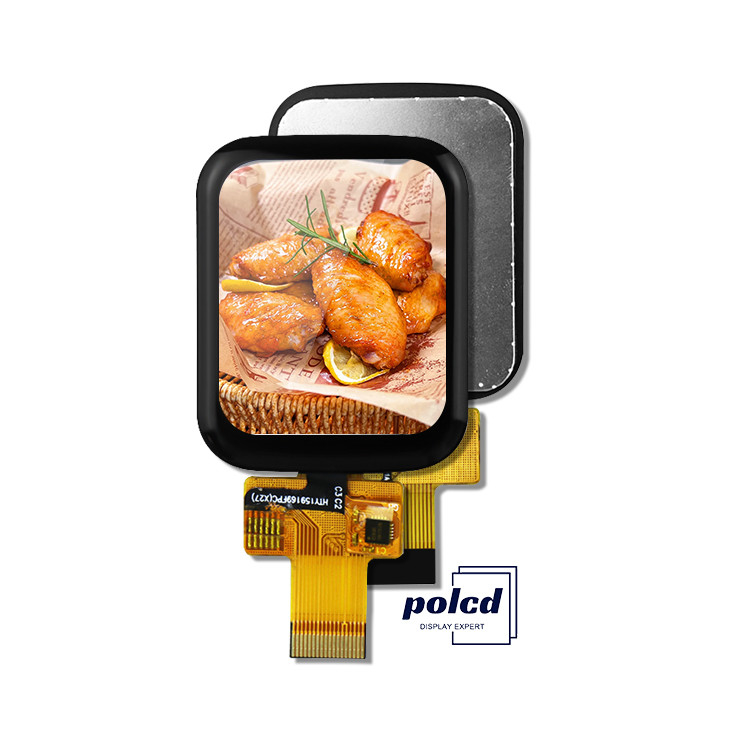

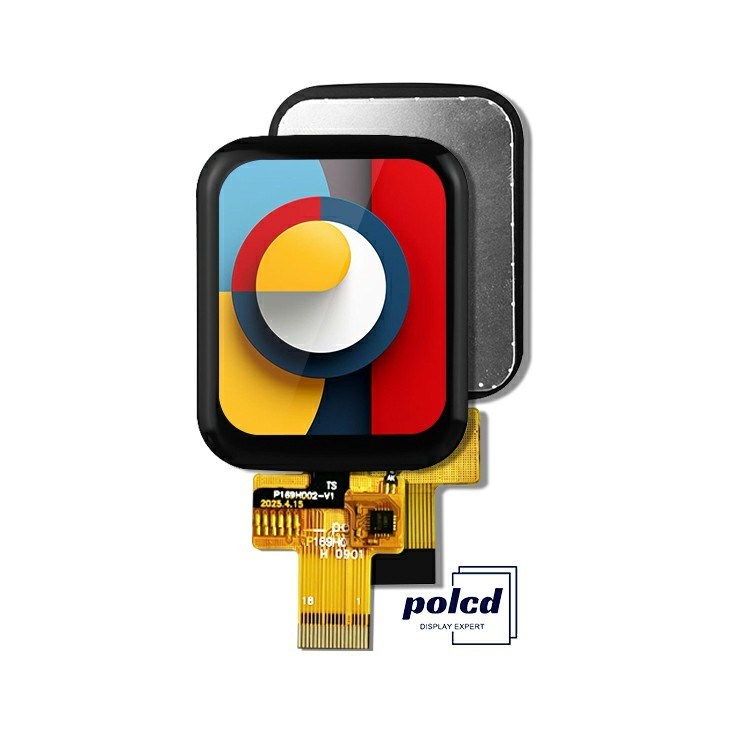

Polcd 18 Pin 1.69 Inch Small TFT Display ST7789V 240x240 Ips Lcd

Polcd 18 Pin 1.69 Inch Small TFT Display ST7789V 240x240 Ips Lcd

Small TFT Display ST7789V

1.69 Inch Small TFT Display

ST7789V 240x240 Ips Lcd

Place of Origin:

Shenzhen, China

Brand Name:



RoHS, ISO9001

Model Number:


Contact Us

Request A Quote
Product Details
Size (inch):
Brightness (cd/m²):
4 Line SPI
Driver Ic:
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

What can we expect from this one? Before this question it is better to know some information about this LCD Touch Panel. If your product requires a size 1.69 inch then our lcd is just what you need. The TFT LCD offers a physical resolution of 240 * 240, clear enough for most scenes to be used. The normal brightness is 350 nits under the test of laboratory.

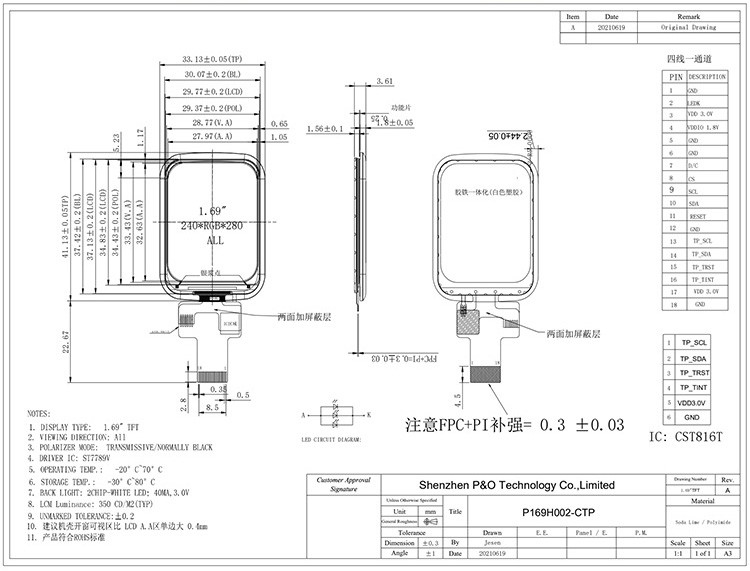

P/N P169H002-CTP
Size(inch) 1.69
Resolution 240*240
Active Area(mm) 27.97*32.63
Pixel pitch(um) 116.55*116.55

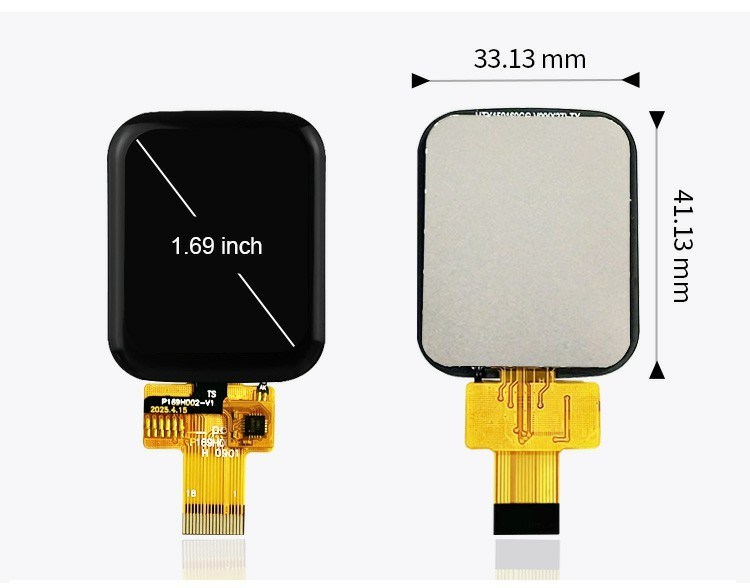

Outline Dimension(mm) 33.13*41.13*3.61
Pixel arrangement RGB Vertical Stripe
Display Mode Normally Black
Viewing Angle ALL
Display colors 262K
Contrast Ratio 800:1
Interface 4 Line SPI
Back-light LED Side-light type
Driver Ic ST7789V
Operation Temperature(°C) -20~70
Storage Temperature(°C) -30~80
Response time(ms) 35
Pin Number 18


Supported by 4 Line SPI , this type of TFT LCD can be used in many applications. From the datasheet we can know the driver of the LCD is is ST7789V. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.


Polcd 18 Pin 1.69 Inch Small TFT Display ST7789V 240x240 Ips Lcd 0


Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: Can I pay the order with credit cards or PayPal?
A: We accept PayPal and credit card for sample, T/T paid for mass order. We also accept advanced percentage (usually 30% before producing) for large orders.

Q: How long can I get the goods?
A: It depends on the quantity. Our inventory is mainly raw materials, semi-finished and a small number of finished products. Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days include producing; Large batch delivery takes 20-30 working days. We will list the time cost for you before order.

Q: What if the goods get lost/ damaged on the way?
A: We strongly suggest to buy insurance in case of any problem. We will discuss these details with you before order.

Q: Do you accept sample order or small quantity order?

A: Yes, you can place sample orders for testing first, and small quantity order as trial production (no less than MOQ).
