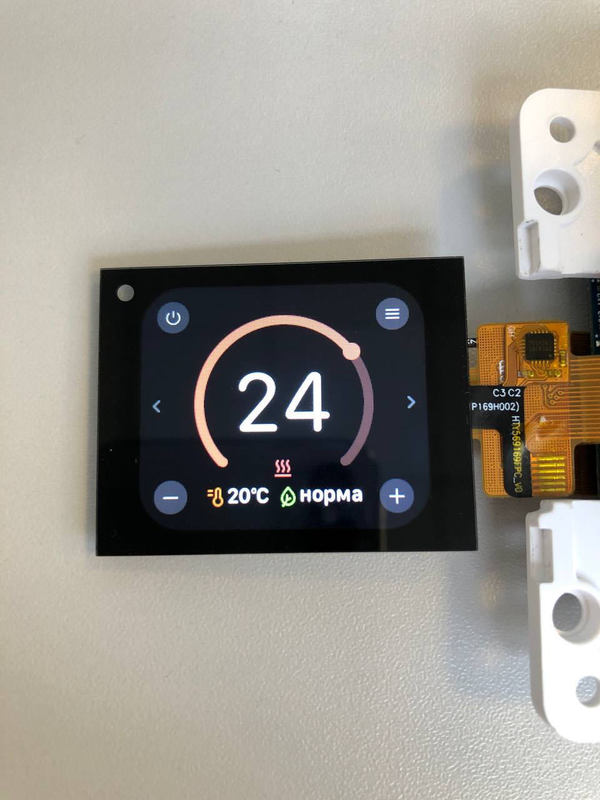

Polcd 1.69 Inch TFT Multi Capacitive Touch Screen 4 Line SPI 240x280 IPS Lcd

Polcd 1.69 Inch TFT Multi Capacitive Touch Screen 4 Line SPI 240x280 IPS Lcd

1.69 Inch TFT Capacitive Touch Screen

TFT Capacitive Touch Screen 4 Line SPI

4 Line 240x240 Ips Lcd

Place of Origin:

Shenzhen, China

Brand Name:



RoHS, ISO9001

Model Number:


Contact Us

Request A Quote
Product Details
Size (inch):
Brightness (cd/m²):
4 Line SPI
Driver Ic:
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

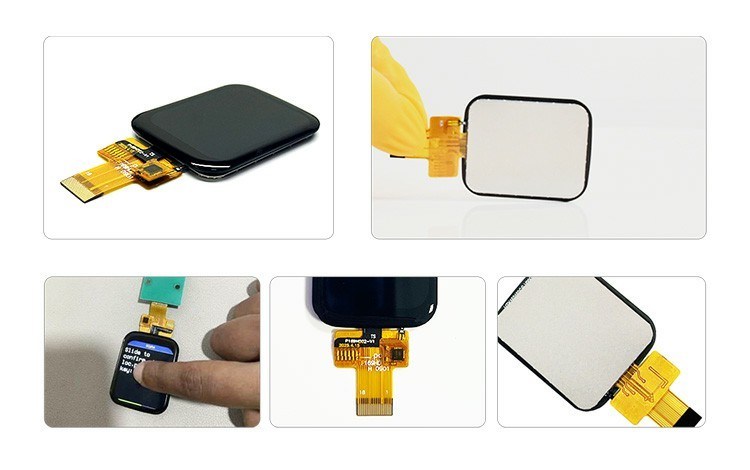

New published LCD Touch Panel for commercial and industrial use.   Screen size is 1.69 inch. A very common and hot selling size for small size TFT display. Improve your product design by adding our 240 * 240 resolution product. 350 nits allow this lcd to work well indoors.


P/N P169H002-CTP
Size(inch) 1.69
Resolution 240*280
Active Area(mm) 27.97*32.63
Pixel pitch(um) 116.55*116.55
Outline Dimension(mm) 33.13*41.13*3.61
Pixel arrangement RGB Vertical Stripe
Display Mode Normally Black
Viewing Angle ALL
Display colors 262K
Contrast Ratio 800:1
Interface 4 Line SPI
Back-light LED Side-light type
Driver Ic ST7789V
Operation Temperature(°C) -20~70
Storage Temperature(°C) -30~80
Response time(ms) 35
Pin Number 18


The Interface of this LCD is 4 Line SPI . We can also customize other types of interfaces and FPCs for you. ST7789V is the driver IC of the tft lcd. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).


Polcd 1.69 Inch TFT Multi Capacitive Touch Screen 4 Line SPI 240x280 IPS Lcd 0


Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: Can I pay the order with credit cards or PayPal?
A: We accept PayPal and credit card for sample, T/T paid for mass order. We also accept advanced percentage (usually 30% before producing) for large orders.

Q: How long can I get the goods?
A: It depends on the quantity. Our inventory is mainly raw materials, semi-finished and a small number of finished products. Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days include producing; Large batch delivery takes 20-30 working days. We will list the time cost for you before order.

Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.

Q: How can you guarantee you product quality?

A: Most of our products have one year quality insurance. We will also happy to answer your question and help you solve problems no matter when you buy our products. We trust quality and service first.
