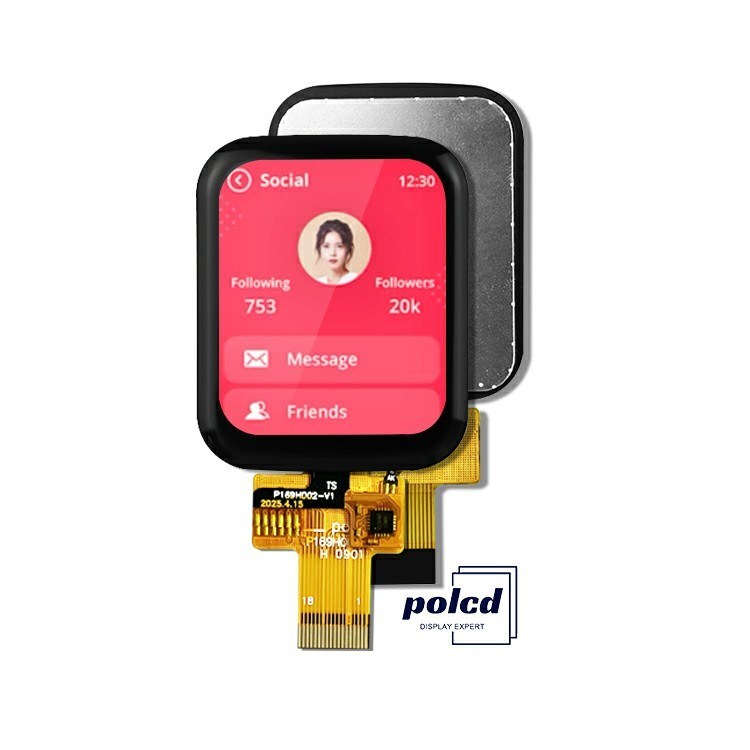

Polcd 1.69 Inch TFT Capacitive Touch Screen 240x280 Normally Black IPS LCD Module

Polcd 1.69 Inch TFT Capacitive Touch Screen 240x280 Normally Black IPS LCD Module

1.69 Inch TFT Capacitive Touch Screen

TFT Capacitive Touch Screen 262K

262K Tft 240x240

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P169H002-CTP

Contact Us

Request A Quote
Product Details
Size (inch):
1.69
Resolution:
240*280
Active Area:
27.97(H)x32.63(V) Mm
Brightness (cd/m²):
300 Nit
Interface:
4 Line SPI
Driver Ic:
ST7789V
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability
25,000 PCS per day
Product Description

This LCD Touch Panel is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 1.69 inch then our lcd is just what you need. Improve your product design by adding our 240 * 280 resolution product. QC department measured the luminance is 300 nits under normal operating.

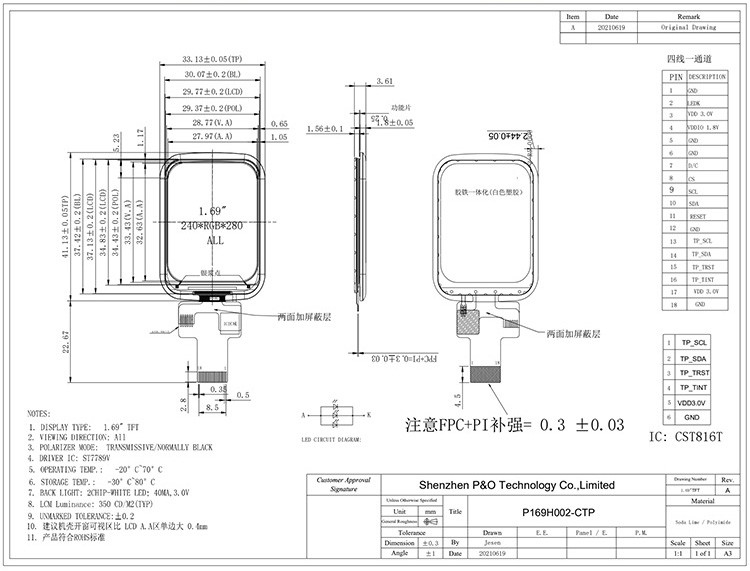

Parameter:

Model P169H002-CTP
Screen Size 1.69 inch
Number of Pixel 240RGB(H)x280(V)
Display area 27.97(H)x32.63(V)mm
Pixel pitch 0.11655(H)x0.11655(V)mm
Pins 18 Pins

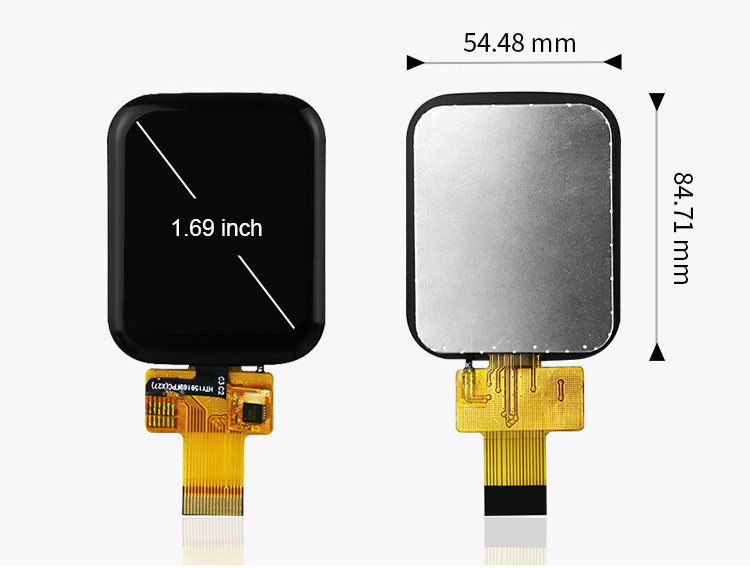

Outline Dimension 33.13x41.13x3.61 mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction ALL
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 1000:1
Interface 4-line SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70℃
Storage Temperature -30~80℃



This type of 4 Line SPI can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ST7789V. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).

Polcd 1.69 Inch TFT Capacitive Touch Screen 240x280 Normally Black IPS LCD Module 0Polcd 1.69 Inch TFT Capacitive Touch Screen 240x280 Normally Black IPS LCD Module 1

Polcd 1.69 Inch TFT Capacitive Touch Screen 240x280 Normally Black IPS LCD Module 2


Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: Can I pay the order with credit cards or PayPal?
A: We accept PayPal and credit card for sample, T/T paid for mass order. We also accept advanced percentage (usually 30% before producing) for large orders.

Q: Do you have products in stock? How long will it take for delivery?
A: Our inventory is mainly raw materials, semi-finished and a small number of finished products. After payment, sample available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 3-4 weeks. Our sales will serve you these details before shipping.

Q: Can I trust the quality? We want good quality first.
A: Our company has a professional Quality Control Department, and all products are 100% inspected prior to ship. We welcome all the customers from the wolrd visiting our factory for checking any time.
