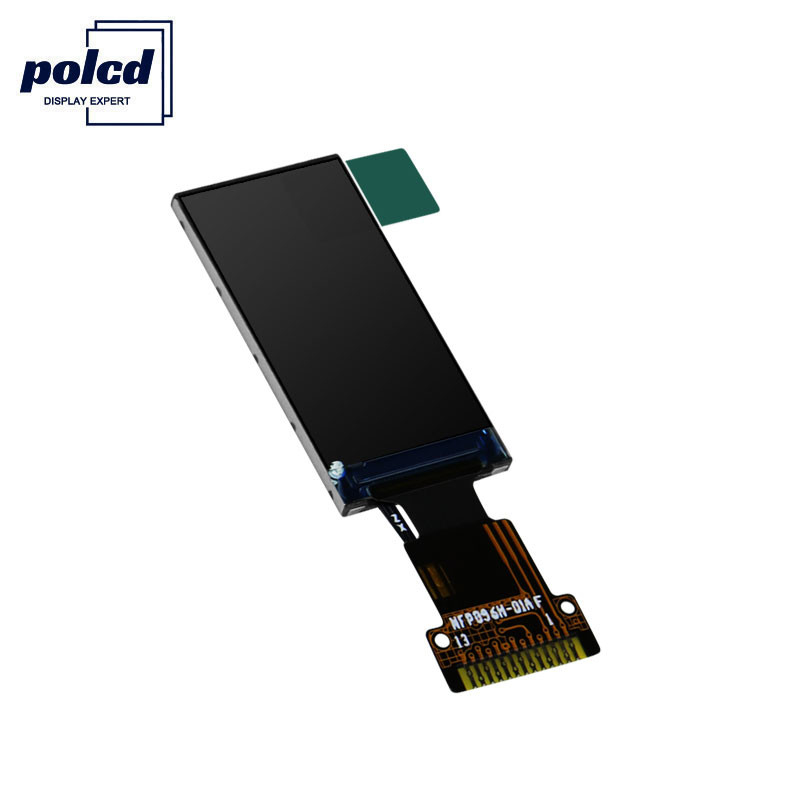

Polcd 0.96 Inch St7735 80x160 400 Nit Medical LCD Display 4 Line SPI

Polcd 0.96 Inch St7735 80x160 400 Nit Medical LCD Display 4 Line SPI

0.96 Inch St7735 80x160

St7735 80x160 400 Nit

80x160 400 Nit Medical LCD Display

Place of Origin:

Shenzhen, China

Brand Name:



RoHS, ISO9001

Model Number:


Contact Us

Request A Quote
Product Details
Size (inch):
Brightness (cd/m²):
4 Line SPI
Driver Ic:
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

New published TFT LCD Display for commercial and industrial use. Screen size is 0.96 inch. A very common and hot selling size for small size TFT display. Improve your product design by adding our 80 * 160 resolution product. 400 nits allow this lcd to work well indoors.

P/N N096-1608TBBIG11-H13
Size(inch) 0.96
Resolution 80*160
Active Area(mm) 10.8*21.7
Pixel pitch(um) 135*135.6
Outline Dimension(mm) 13.5*27.95*1.5
Pixel arrangement RGB Vtertical stripe
Display Mode Normally Black
Viewing Angle ALL
Display colors 262K
Contrast Ratio 600 : 1
Interface 4 Line SPI
Back-light 1 White LED
Driver Ic ST7735S
Operation Temperature(°C) -20~70
Storage Temperature(°C) -30~80
Response time(ms) 30
Pin Number 13



The Interface of this LCD is 4 Line SPI . We can also customize other types of interfaces and FPCs for you. ST7735S is the driver IC of the tft lcd. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).


Polcd 0.96 Inch St7735 80x160 400 Nit Medical LCD Display  4 Line SPI 0


Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: Can I pay the order with credit cards or PayPal?
A: We accept PayPal and credit card for sample, T/T paid for mass order. We also accept advanced percentage (usually 30% before producing) for large orders.

Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.

Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
