Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P028H025-V2
Contact Us
Video
Video

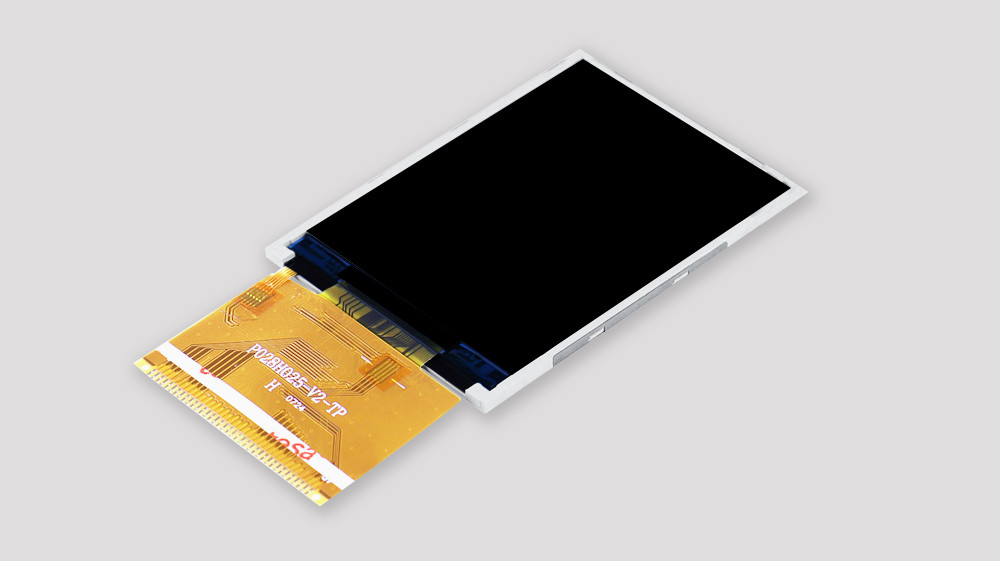

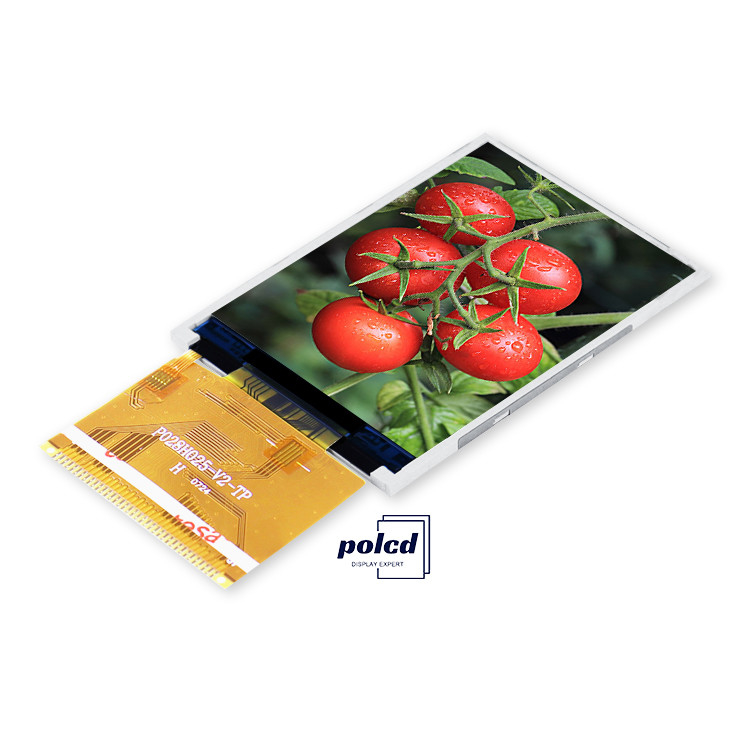

New published LCD Touch Panel for commercial and industrial use. Our TFT LCD has a 2.8 inch diagonally. The resolution of our tft lcd is 240 * 320. The resolution of our tft lcd is 240 * 320. The normal brightness is 300 nits under the test of laboratory. The Interface of this LCD is 8080 MCU 16bit. We can also customize other types of interfaces and FPCs for you. The ILI9341V driver IC provides on-chip storage and power system. If your products need to work under a temperature from -20°C to 70°C, then it can meet your needs.
Parameter:

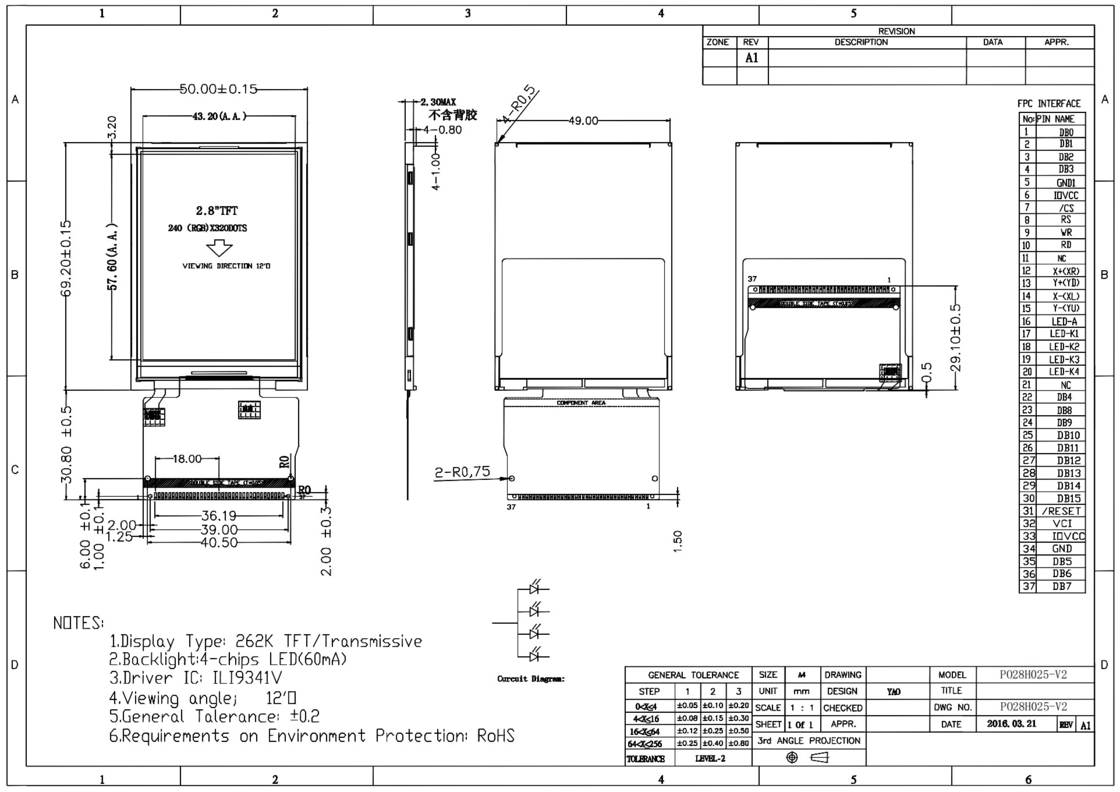

| Model | P028H025-V2 |
| Screen Size | 2.8 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 43.20(H)x57.60(V)mm |
| Pixel pitch | 0.06(H)x0.18(V)mm |
| Pins | 37 pins |

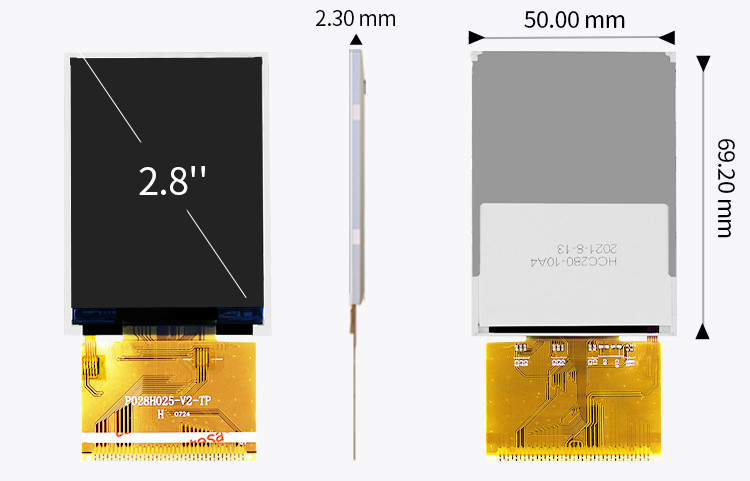

| Outline Dimension | 50.00x69.20x2.30mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally White |
| Viewing Direction(eye) | 12 0'CLOCK |
| Display Color | 262K |
| Luminance(cd/m2) | 270 nit |
| Contrast Ratio | 500:1 |
| Interface | MCU 16bit |
| Back-light | LED Side-light type |
| Drive IC | ILI9341V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Features of 2.8 inch TFT LCD :
1.Display Size: 2.8-inch TFT LCDs have a diagonal screen size of 2.8 inches, which makes them compact and suitable for use in small electronic devices.
2.Display Technology: TFT LCD technology provides a high-quality display with good color accuracy and contrast. It uses thin-film transistors (TFTs) to control the brightness and color of each pixel.
3.High Resolution: 2.8-inch TFT LCDs typically have a higher resolution than other small-size displays, such as OLED or TN LCDs. They can offer resolutions up to 240x320 pixels or higher, providing a clear and detailed image for their size.
4.Color Depth: TFT LCDs are available in both monochrome and color configurations, with color depths ranging from 16-bit to 24-bit. This allows for the display of high-quality images and graphics with accurate colors.
5.Viewing Angle: TFT LCDs have a wider viewing angle than TN LCDs, typically around 160 degrees in all directions. This means that the display remains clear and readable from a wider range of viewing angles.

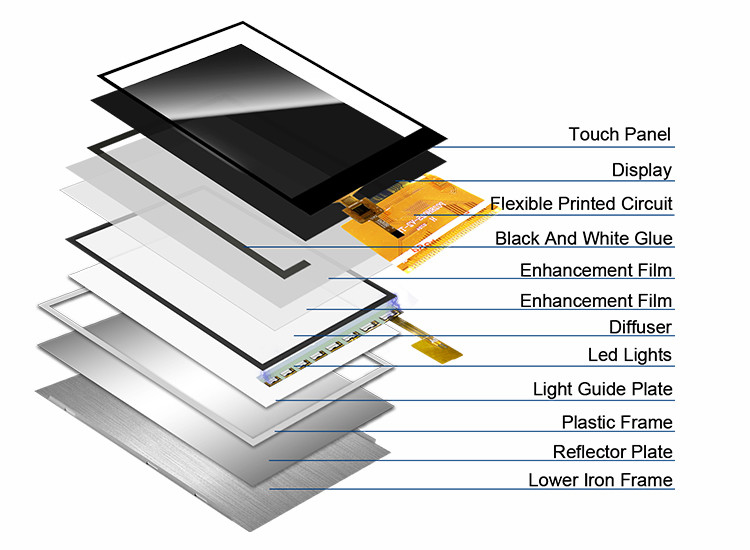

6.Backlighting: TFT LCDs use a backlighting system to illuminate the display. The backlight can be customized to suit specific application requirements, such as brightness or power consumption.
7.Touch Input: Many 2.8-inch TFT LCDs also come with a resistive or capacitive touch panel, which allows for touch input and interaction with the display.
