Place of Origin:
Shenzhen, China
Brand Name:
POLCD
Certification:
RoHS, ISO9001
Model Number:
P027-40-V2
Contact Us
Video
Video
2.7 inch P027-40-V2 lcd screen with 40.5 × 54 mm
| P/N | P027-40-V2 |
| Size(inch) | 2.7 |
| Resolution | 960*240 |
| Active Area(mm) | 40.50*54.00 |
| Pixel pitch(um) | 56.25*168.75 |

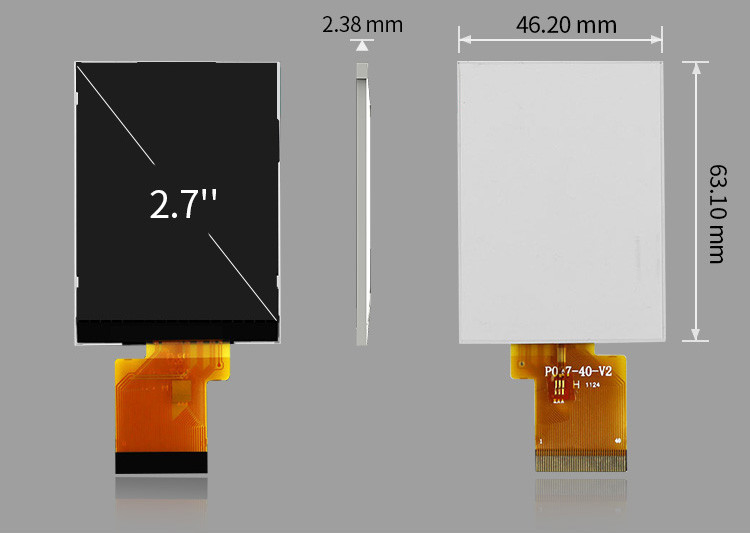

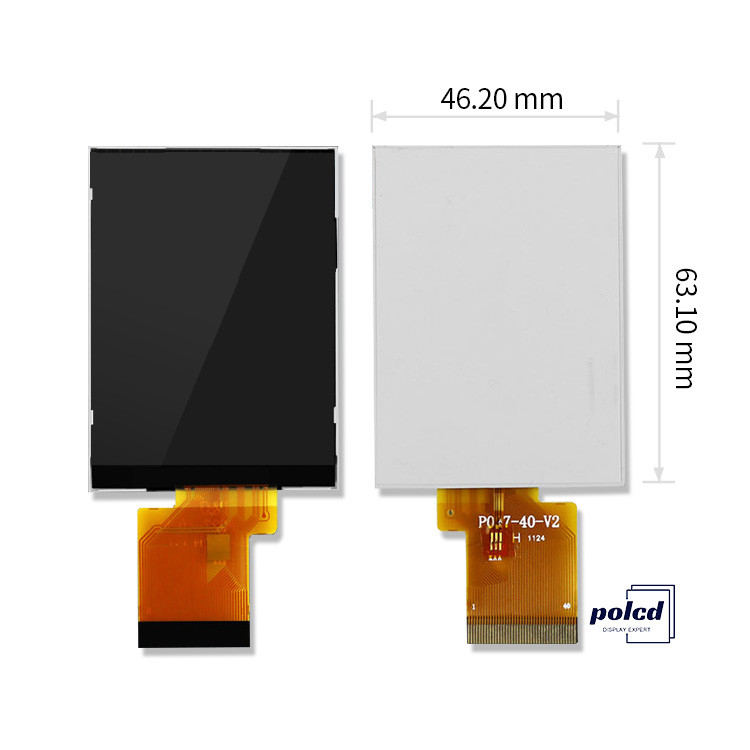

| Outline Dimension(mm) | 46.20*63.10*2.38 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally White |
| Viewing Angle | 6 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 280 |
| Contrast Ratio | 600:1 |
| Interface | RGB 8bit |
| Back-light | LED Side-light type |
| Driver Ic | ILI8191 |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 40 |
Our Advantages
| Hot selling P/N | Size (inch) | Resolution | Interface |
| P096H001 | 0.96 | 80*160 | 4 Line SPI |
| P114H002 | 1.14 | 135*240 | 4 Wire SPI |
| P133H002 | 1.33 | 240*240 | 4 Wire SPI |
| P169H002-CTP | 1.69 | 240*240 | 4 Line SPI |
| P177C011 | 1.77 | 800*480 | RGB 24bit |
| P020H017-IPS | 2 | 240*320 | MCU 8BIT |
| HINK-E0213A189-A0 | 2.13 | 122*250 | 3 Line SPI 4 Line SPI |
| P022H002 | 2.2 | 240*320 | 4 Line SPI |
| P023H005-V2 | 2.31 | 320*240 | 8080 MCU 16bit |
| EO-DIS-TFT24V03 | 2.4 | 240*320 | 8080 MCU 8bits |
| P027-40-V2 | 2.7 | 960*240 | RGB 8bit |
| P028H042 | 2.8 | 240*320 | MCU 8/16bit SPI3/4-wire |
| P032010A | 3.2 | 320*820 | SPI+16BIT RGB |
| P035C013-CTP | 3.5 | 320*480 | 8080 MCU 16bit |
| P035M048-IPS | 3.5 | 320*480 | 18BIT RG |
| P043B018 | 4.3 | 800*480 | RGB 24bit |
| P050B028-IPS-CTP | 5 | 800*480 | RGB 24bit |
| P055H018-IPS-V3 | 5.5 | 720*1280 | MIPI |
| P070C012 | 7 | 800*480 | RGB 24bit |
| T10150UX-V01 | 10.1 | 1024*600 | RGB 24bit |
We also have other industrial LCD screens, please contact us for the further information.
FAQ
Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.
Q: How you ship the goods?
A: Usually we will ship the sample by fast delivery. No matter how we will take the best shipping method you agree with. Shipping cost should pay by your side, please kindly know.
Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
