Name: Polcd 480x800 4.0 Inch TFT LCD Screen 300 Brightness 24pin IPS view angle Touch Panel Lcd Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P040B019-MIPI-CTP-V3
Price: Negotiable USD
Availability: InStock

Home > products > TFT LCD Module >

Polcd 480x800 4.0 Inch TFT LCD Screen 300 Brightness 24pin IPS view angle Touch Panel Lcd Display

4.0 inch TFT LCD screen

IPS view angle LCD display

24pin touch panel LCD

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P040B019-MIPI-CTP-V3

Request A Quote

Product Details

Size (inch):

4 Inch 480x800

Brightness (cd/m²):

300

Interface:

MIPI

Driver IC:

ST7701P

PIN:

24 Pin

Viewing Direction(eye):

IPS Full View Angle

Contrast Ratio:

1200:1

Display Area:

61x103x3.85mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

5-8 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P

Supply Ability

40,000 PCS per day

Polcd ST7789V 1.14 Tft 135X240 1.56Mm Touchscreen Display Module

Get Best Price

Video

Polcd 550 Nit Tft 1.14 135X240 TFT LCD Display RGB Vertical Stripe

Get Best Price

Video

Polcd 1.14 Inch 550 nit Brightness IPS Screen St7789v 135X240 Tft Colour Display

Get Best Price

Video

Polcd Small Round 1.28 Inch Lcd Screen 240*240 1.3 Inch Spi Interface IPS Circular Tft Lcd Module Panel

Get Best Price

008613714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

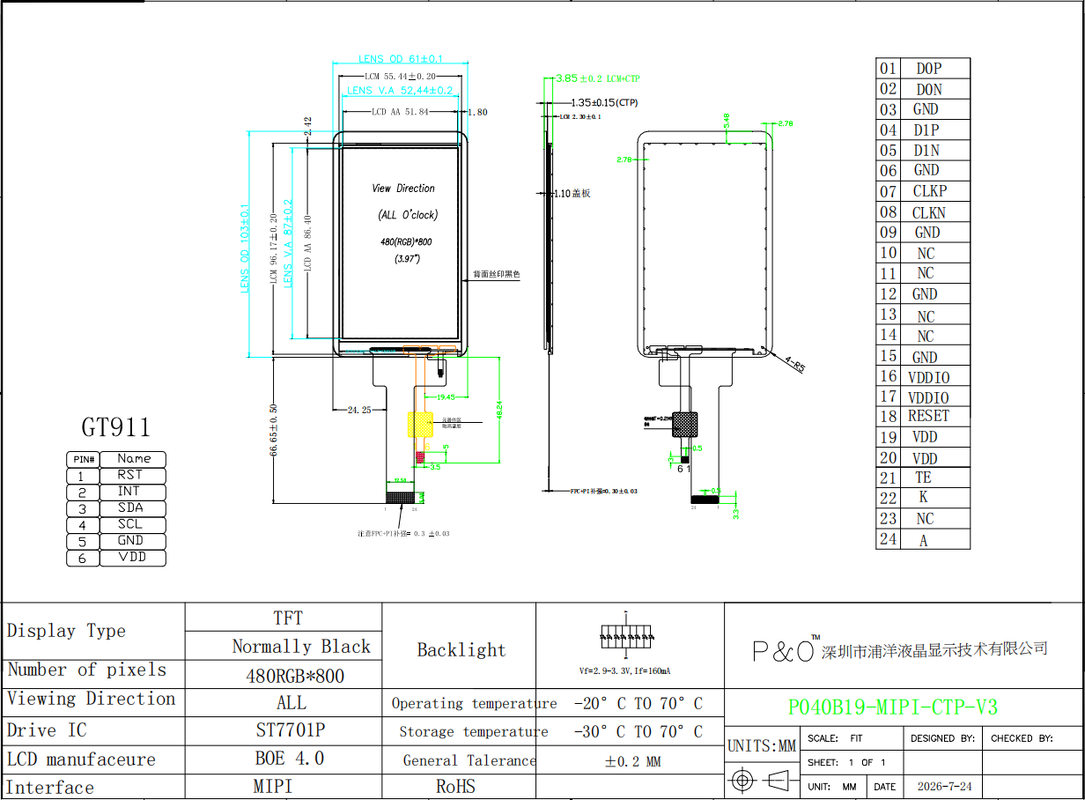

Parameter:

Model	P040B019-MIPI-CTP-V3
Screen Size	3.97 inch
Number of Pixel	480RGB(H)x800(V)
Display area	51.84(H)x86.4(V)mm
Pixel pitch	0.180(H)x0.180(V)mm
Pin	24 pin
Outline Dimension	61x103x3.85mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	1200:1
Interface	MIPI
Back-light	LED Side-light type
Drive IC	ST7701P
CTP IC	GT911
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
