Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P024C118
Contact Us
Description:
2.4 inch TFT LCD are commonly used in a variety of electronic devices, including handheld gaming devices, automotive displays, industrial controllers, medical devices, and smart home devices. They typically have low power consumption, wide viewing angles, and can be customized to meet specific application requirements, including touch screen support and different backlight options.
Parameter:
|
Model |
P024C118 |
|
Screen Size |
2.4 inch |
|
Number of Pixel |
240RGB(H)x320(V) |
|
Display area |
36.72(H)x48.96(V)mm |
|
Pixel pitch |
51(H)x153(V)um |
|
Pins |
18 pin |
|

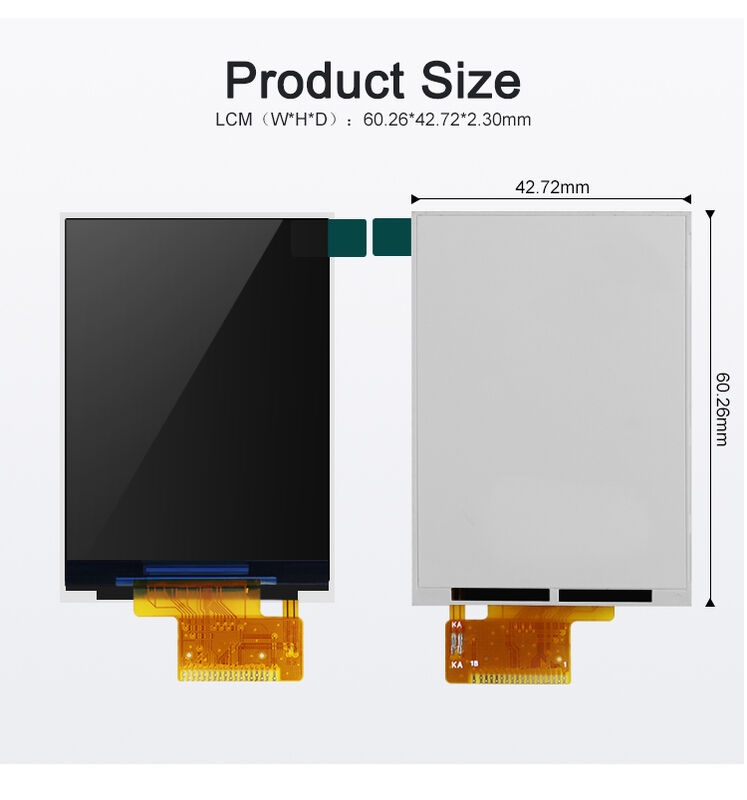

Outline Dimension |
42.72x60.26x2.30mm |
|
Pixel arrangement |
RGB Vertical Stripe |
|
Display mode |
Normally White |
|
Viewing Direction(eye) |
12 0'CLOCK |
|
Display Color |
262K |
|
Luminance(cd/m2) |
300 nit |
|
Contrast Ratio |
250:1 |
|
Interface |
3 Wire 2 Line SPI |
|
Back-light |
LED Side-light type |
|
Drive IC |
ST7789V2 |
|
Operation Temperature |
-20~70℃ |
|
Storage Temperature |
-30~80℃ |
![]()
