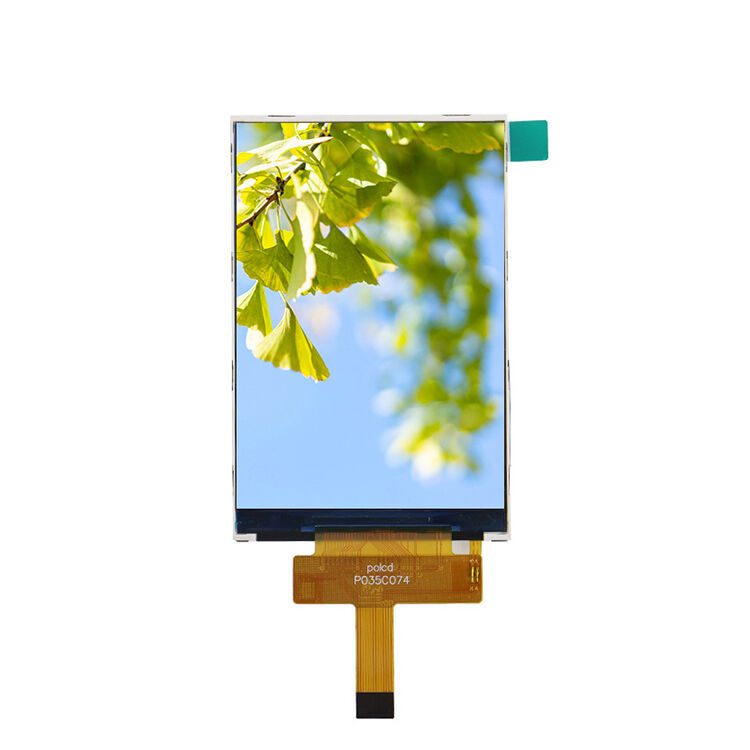

Name: Polcd 3.5 inch TFT LCD Screen 320*480 SPI interface High brightness 400nit 3.5 LCD Display Module
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P035C074
Availability: InStock

Home > Products > Small TFT Display >

Polcd 3.5 inch TFT LCD Screen 320*480 SPI interface High brightness 400nit 3.5 LCD Display Module

3.5 inch TFT LCD screen

320x480 SPI display module

high brightness 400nit LCD

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P035C074

Request A Quote

Product Details

Number Of Pixel:

320xRGBx480

Screen Size:

3.5 Inch

Display Area:

48.96(H)x73.44(V)

Brightness (cd/m²):

400

Interface:

4Line SPI

Driver Ic:

ILI9488

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union

Supply Ability

40,000 PCS per day

Polcd 3.2 inch 240x320 pixel size Small TFT Display ILI9488 Driver ic Lcd

Get Best Price

Video

Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display

Get Best Price

Video

Polcd 2.8 inch TFT Display 240x320 Pixel IPS Screen Panel 37 Pin MCU ST7789V TFT LCD Module

Get Best Price

Video

Polcd OEM 2.8" tft lcd 240x320 262K Color ST7789V driver IC MCU 18bit interface Customized LCD Screen

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

TFT Display Description:

This is a 3.5-inch TFT LCD display with a 4-line SPI interface and a 12 o'clock viewing angle. It provides high-quality display performance and is easy to integrate into various electronic devices. With a compact design and low power consumption, it is a reliable solution for applications that require a small display with clear images.

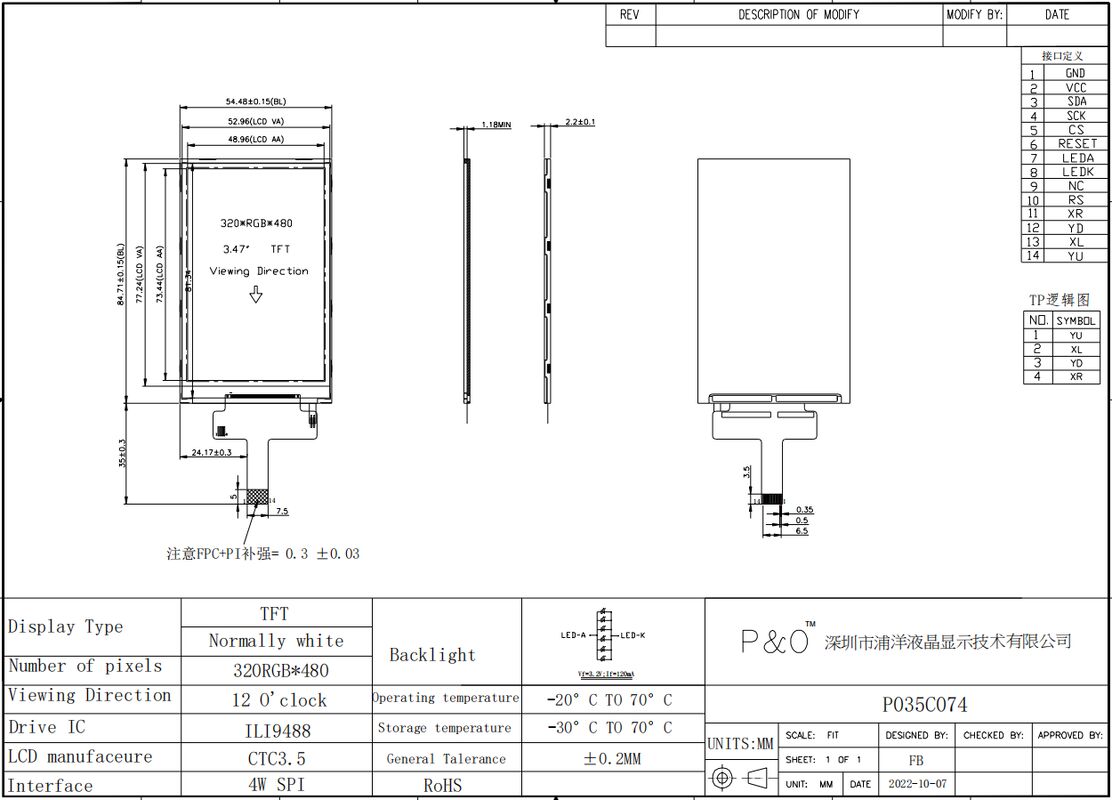

Parameter:

Model No.	P035C074
Screen Size	3.5 inch
Number of Pixel	320RGB(H)x480(V)
Pin	14 pin
Display area	48.96(H)x73.44(V)mm
Pixel pitch	0.153(H)x0.153(V)mm
Outline Dimension	54.48x84.71x2.20
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	12 0'CLOCK
Display Color	262K
Luminance(cd/m²)	400 nit
Contrast Ratio	500:1
Interface	4Line SPI
Back-light	LED Side-light type
Drive IC	ILI9488
Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃

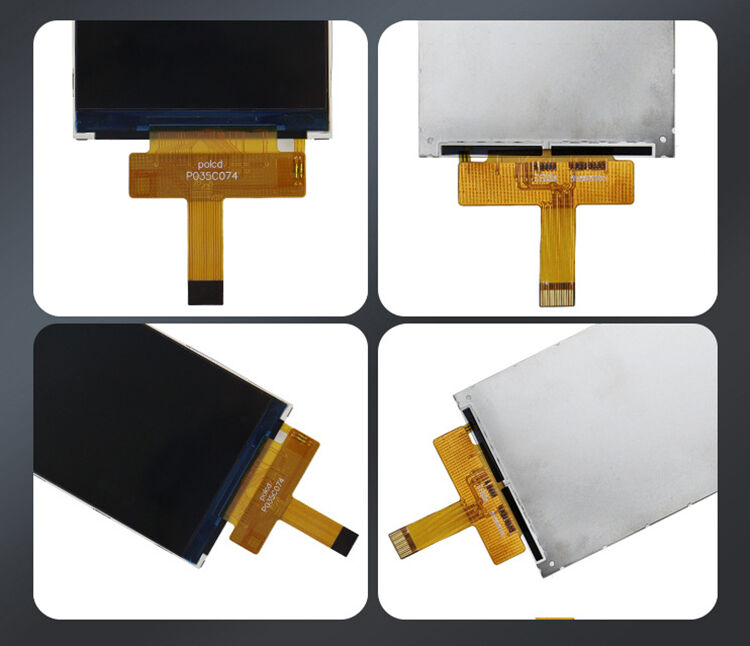

Polcd 3.5 inch TFT LCD Screen 320*480 SPI interface High brightness 400nit 3.5 LCD Display Module 0

Polcd 3.5 inch TFT LCD Screen 320*480 SPI interface High brightness 400nit 3.5 LCD Display Module 1
