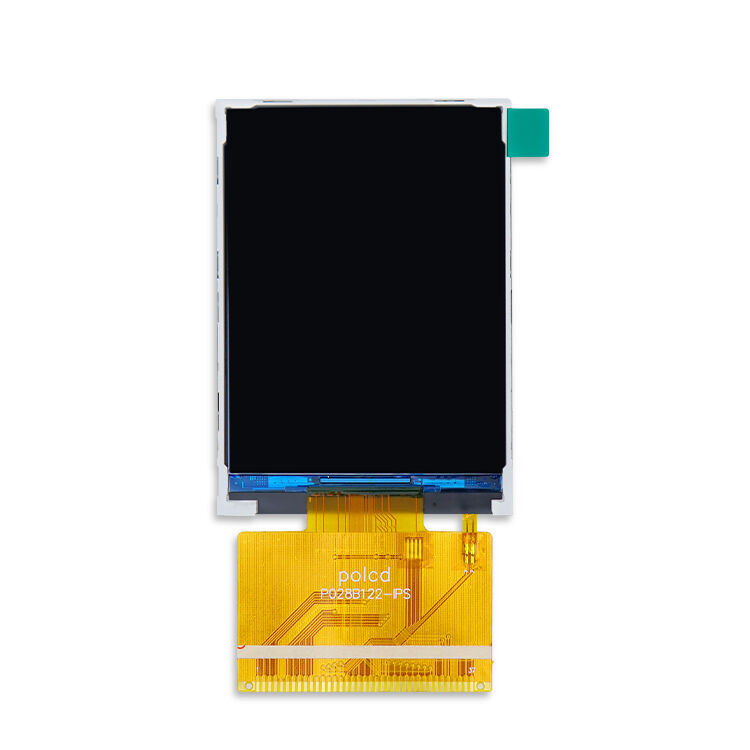

Name: Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P028B122-IPS
Availability: InStock

Home > Products > Small TFT Display >

Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display

2.8 inch QVGA TFT display

high brightness 300nits IPS display

MCU RGB interface TFT screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028B122-IPS

Request A Quote

Product Details

Number Of Pixel:

240RGB(H)x320(V)

Screen Size:

2.8 Inch

Display Area:

43.20(H)x57.60(V)

Brightness (cd/m²):

300

Interface:

MCU 8/16bit

Driver Ic:

ST7789V

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd 2.8 inch TFT Display 240x320 Pixel IPS Screen Panel 37 Pin MCU ST7789V TFT LCD Module

Get Best Price

Video

Polcd OEM 2.8" tft lcd 240x320 262K Color ST7789V driver IC MCU 18bit interface Customized LCD Screen

Get Best Price

Video

Polcd Small LCD 2.8'' 240x320 Industrial IPS Color Screen Full View 2.8 inch Parallel Port TFT LCD Display

Get Best Price

Video

SPI Interface 240x320 Touch Display IPS 2.8 Inch Tft Lcd Module Polcd Screen

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Description:

2.8 inch IPS TFT LCDs are commonly used in various electronic devices, including handheld gaming devices, industrial controllers, portable multimedia players, medical devices, and automotive displays, among others. Their compact size, high-quality display performance, and low power consumption make them a reliable and versatile display solution for various applications. The customizable display driver in some models also allows for greater flexibility and control over the display performance and features, making them suitable for a wide range of applications.

Parameter:

Model	P028B055-IPS
Screen Size	2.8 inch
Number of Pixel	240RGB(H)x320(V)
Display area	43.20(H)x57.60(V)mm
Pixel pitch	0.06(H)x0.18(V)mm
Pins	15 pins

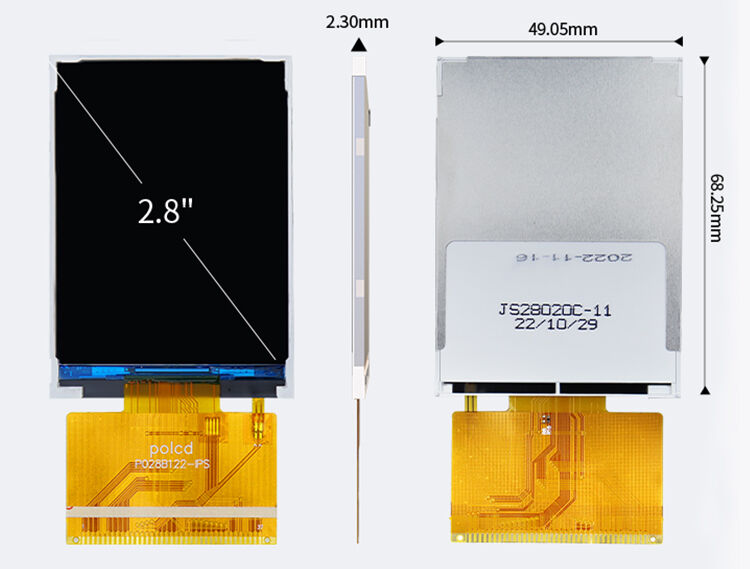

Outline Dimension	50.00x69.20x2.30mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m2)	300 nit
Contrast Ratio	800:1
Interface	4-wire SPI
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display 0
