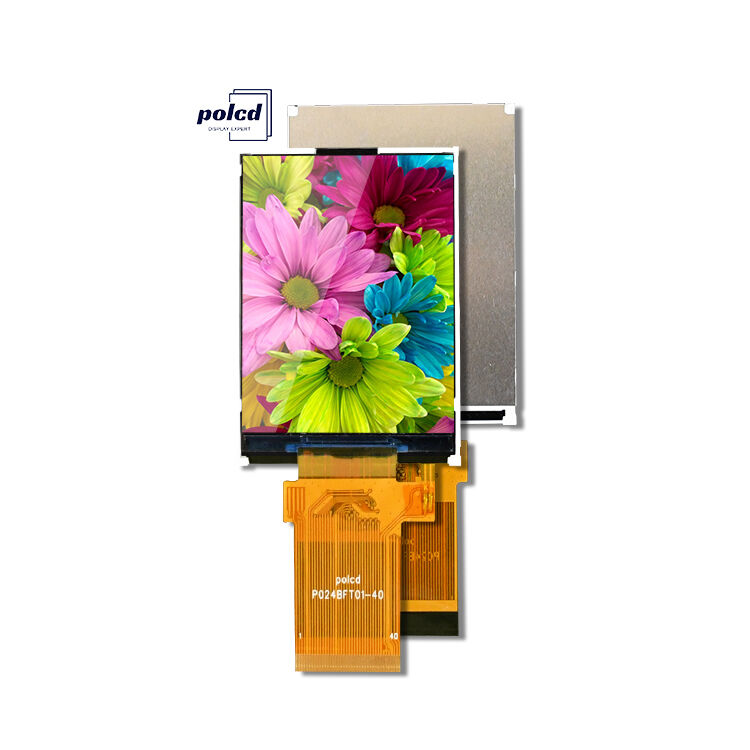

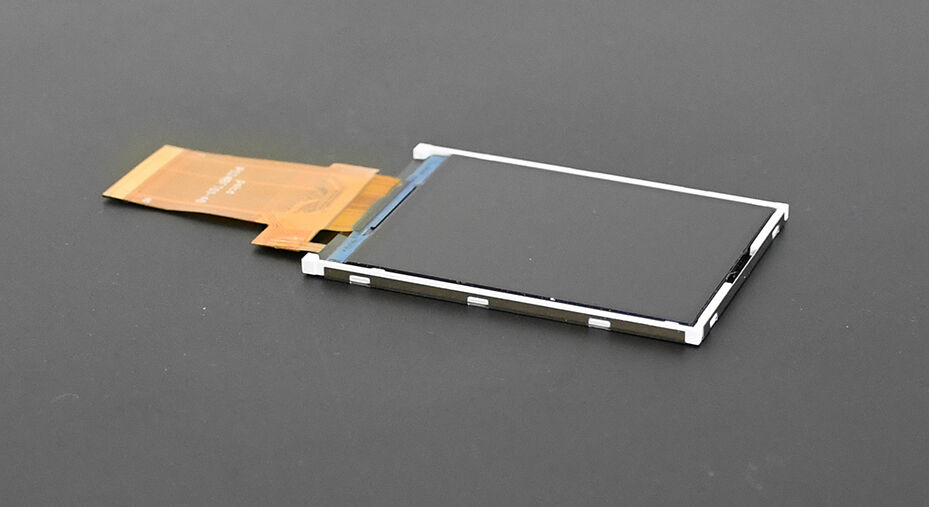

Name: Polcd Custom 2.4 Inch 20 Pin Tft Lcd 240x320 Transflective Color Screen with ST7789T3 Lcd Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P024BFT01-40
Availability: InStock

Home > Products > TFT LCD Module >

Polcd Custom 2.4 Inch 20 Pin Tft Lcd 240x320 Transflective Color Screen with ST7789T3 Lcd Display

2.4 inch TFT LCD display

20 pin transflective LCD screen

ST7789T3 LCD module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P024BFT01-40

Request A Quote

Product Details

Size (inch):

2.4

Resolution:

240*320

Brightness (cd/m²):

300 Nit

Viewing Direction:

IPS Full View Angle

Interface:

3W4W SPI / MCU 8bit 16bit

Driver Ic:

ST7789T3

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd 4.3" Custom Resolution Display Module 480x272 IPS Screen Transmissive 4.3 Inch TFT LCD Display

Get Best Price

Video

LQ035NC111 3.5 Inch Tft Lcd Touch Screen Module Original 320x240 Resolution Square

Get Best Price

Video

LQ035NC111 3.5 inch LCD Module 320x240 Rgb Spi interface 54 pin Color TFT Display

Get Best Price

Video

Polcd 3.5 Inch Lcd Panel Module 320x480 Rgb Spi Interface Full Color Tft Lcm Display

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

Model	P024BFT01-40
Screen Size	2.4 inch
Number of Pixel	240RGB(H)x320(V)
Display area	36.72(H)x48.96(V)mm
Pixel pitch	51(H)x153(V)um
Pin	20 pin
Outline Dimension	42.72x60.26x2.30mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black

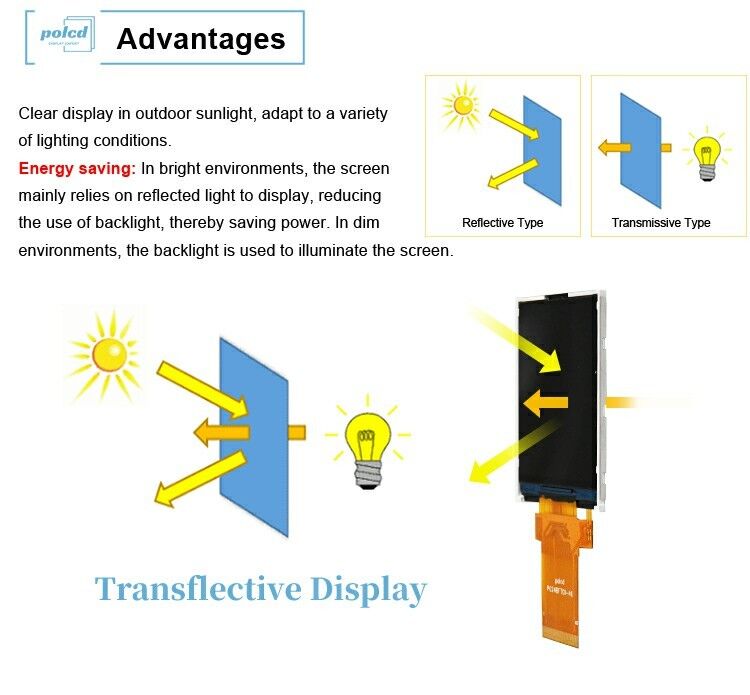

Viewing Direction(eye)	Transflective
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	250:1
Interface	3W4W SPI / MCU 8bit 16bit
Back-light	LED Side-light type
Drive IC	ST7789T3
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
