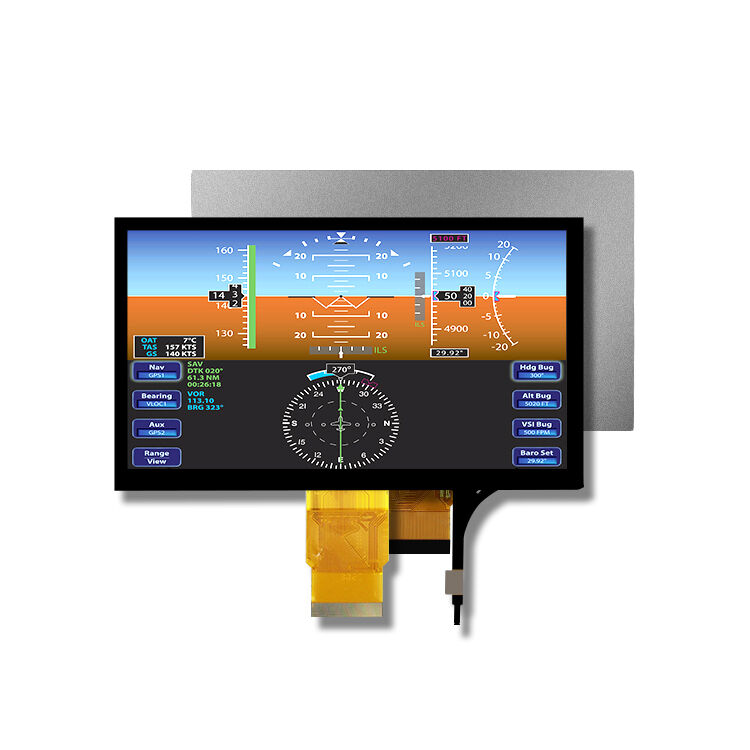

Name: Polcd 7 inch Capacitive PCAP Touch Panel 800x480 Resolution RGB interface TFT LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P070C012-CTP
Availability: InStock

Home > Products > TFT LCD Module >

Polcd 7 inch Capacitive PCAP Touch Panel 800x480 Resolution RGB interface TFT LCD Display

7 inch capacitive PCAP touch panel

800x480 resolution TFT LCD display

RGB interface TFT LCD module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P070C012-CTP

Request A Quote

Product Details

Size (inch):

7 Inch 800x480

Brightness (cd/m²):

400 Nit

Interface:

RGB 24bit

Driver Ic:

1*EK9716BD4 + 1*EK73002AB2

Viewing Direction(eye):

6 O'clock

Contrast Ratio:

500:1

Display Area:

153.84(H)x85.63(V)mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd 7 Inch 800*480 Resolution 50 Pin RGB Screen 7" Capacitive Touch TFT Display For Industrial Medical

Get Best Price

Video

Polcd 2.1" Circular TFT Panel Module 480x480 Mipi Interface Colorful 2.1 Inch Round LCD Display Screen

Get Best Price

Video

Polcd 4.0 inch 480x480 Square TFT Touch Screen RGB interface 4" LCD TFT Color Display Projector Module

Get Best Price

Video

Polcd IPS Screen 1.9 inch 170x320 Resolution ST7789P3-G6 ic High Brightness 330nits 1.9" TFT LCD Display

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Description:

7.0-inch TFT LCD is a high-quality display screen commonly used in portable electronic devices such as smartphones, tablets, and handheld gaming devices. It offers a clear and sharp visual display with vibrant colors, making it an ideal choice for a wide range of applications.

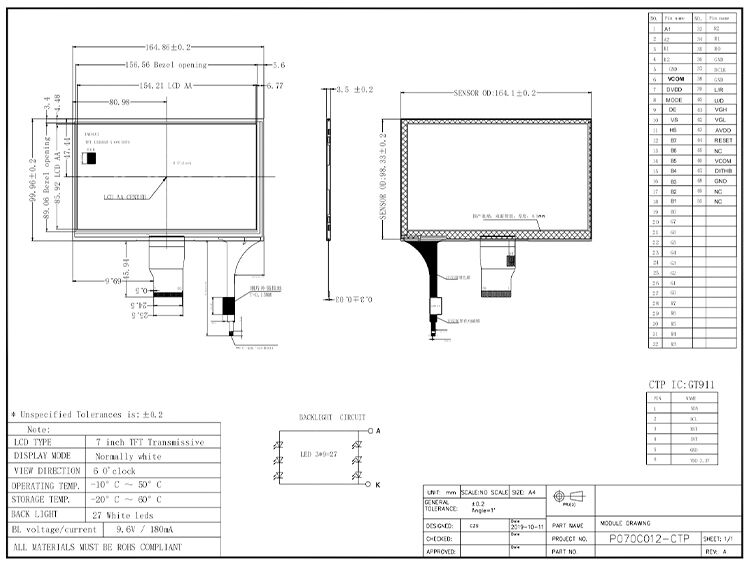

Model	P070C012-CTP
Screen Size	7 inch
Number of Pixel	800RGB(H)x480(V)
PIN	50 pin
Display area	154.21(H)x85.92(V)mm
Pixel pitch	0.0641(H)x0.1784(V)mm
Outline Dimension	164.86x99.96x6.00mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	6 o'clock
Display Color	262k
Luminance(cd/m²)	300 nit
Contrast Ratio	500:1
Interface	RGB 24bit
Back-light	LED Side-light type
Drive IC	*1EK9716BD4 + 1EK73002AB2*
Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃

Polcd 7 inch Capacitive PCAP Touch Panel 800x480 Resolution RGB interface TFT LCD Display 0
