Name: Polcd IPS Screen 1.9 inch 170x320 Resolution ST7789P3-G6 ic High Brightness 330nits 1.9" TFT LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P019B01-8
Availability: InStock

Home > Products > TFT LCD Module >

Polcd IPS Screen 1.9 inch 170x320 Resolution ST7789P3-G6 ic High Brightness 330nits 1.9" TFT LCD Display

1.9 inch IPS TFT LCD display

ST7789P3-G6 TFT LCD module

330nits high brightness LCD screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P019B01-8

Request A Quote

Product Details

Screen Size:

1.9 Inch

Resolution:

170x320

Active Area:

22.7(H)x42.72(V)mm

Brightness (cd/m²):

600 Nit

Interface:

4 Line SPI

Driver Ic:

ST7789P3-G6

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1~7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

anna@polcd.com

86-755-21011746

Contact Now

Product Description

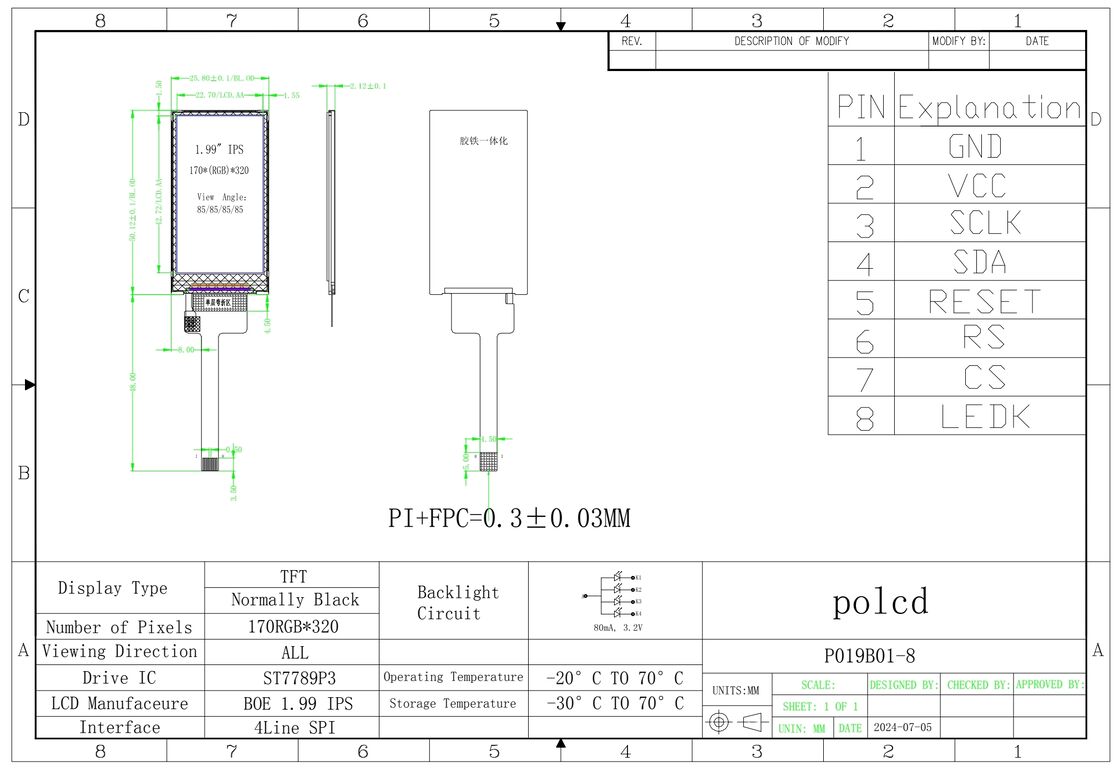

Parameter:

Model	P019B01-8
Screen Size	1.9 inch
Number of Pixel	170RGB(H)x320(V)
Display area	22.7(H)x42.72(V)mm
Pixel pitch	133.5(H)x133.5(V)um
Pins	8 pins
Outline Dimension	25.8x50.12x2.12±0.1mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	600 nit
Contrast Ratio	800:1
Interface	4W SPI
Back-light	LED Side-light type
Drive IC	ST7789P3-G6
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
