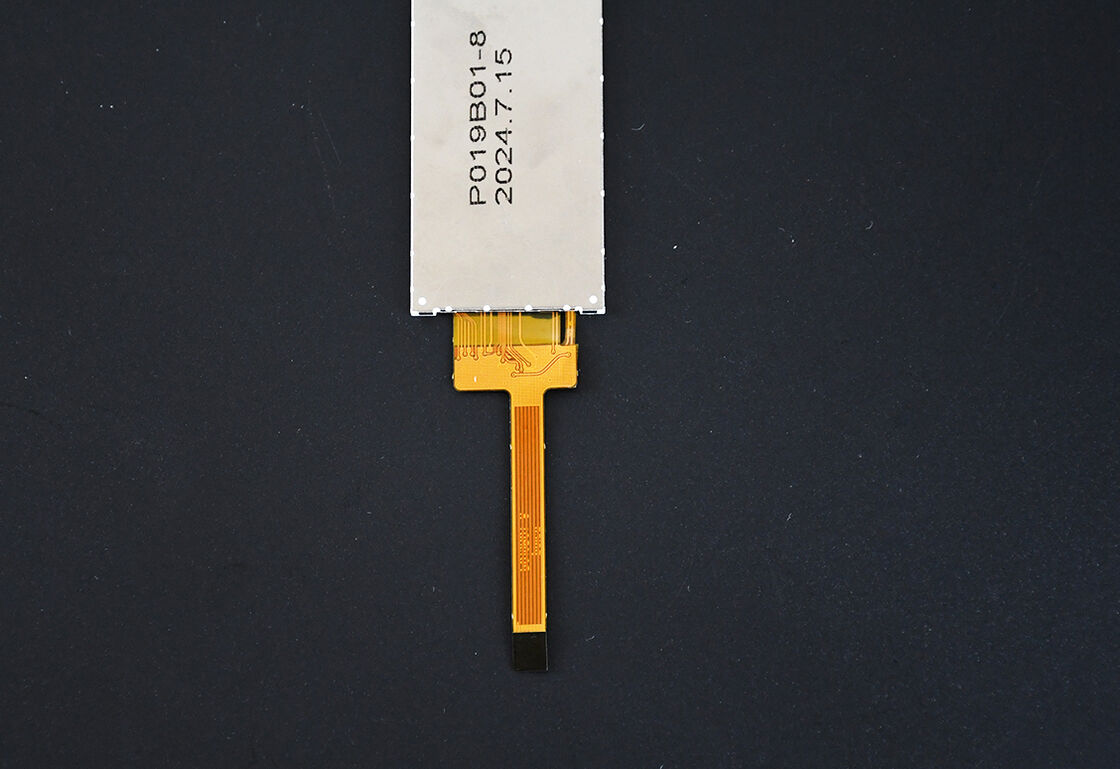

Name: Polcd 1.9 Inch LCD Modules 170x320 IPS All Viewing Angle SPI interface 8pin Product Bartype TFT Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P019B01-8
Availability: InStock

Home > Products > TFT LCD Module >

Polcd 1.9 Inch LCD Modules 170x320 IPS All Viewing Angle SPI interface 8pin Product Bartype TFT Display

1.9 inch IPS TFT LCD module

SPI interface TFT display module

170x320 resolution LCD module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P019B01-8

Request A Quote

Product Details

Screen Size:

1.9 Inch

Resolution:

170x320

Active Area:

22.7(H)x42.72(V)mm

Brightness (cd/m²):

600 Nit

Interface:

4 Line SPI

Driver Ic:

ST7789P3-G6

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1~7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

Model	P019B01-8
Screen Size	1.9 inch
Number of Pixel	170RGB(H)x320(V)
Display area	22.7(H)x42.72(V)mm
Pixel pitch	133.5(H)x133.5(V)um
Pins	8 pins
Outline Dimension	25.8x50.12x2.12±0.1mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	600 nit
Contrast Ratio	800:1
Interface	4W SPI
Back-light	LED Side-light type
Drive IC	ST7789P3-G6
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
