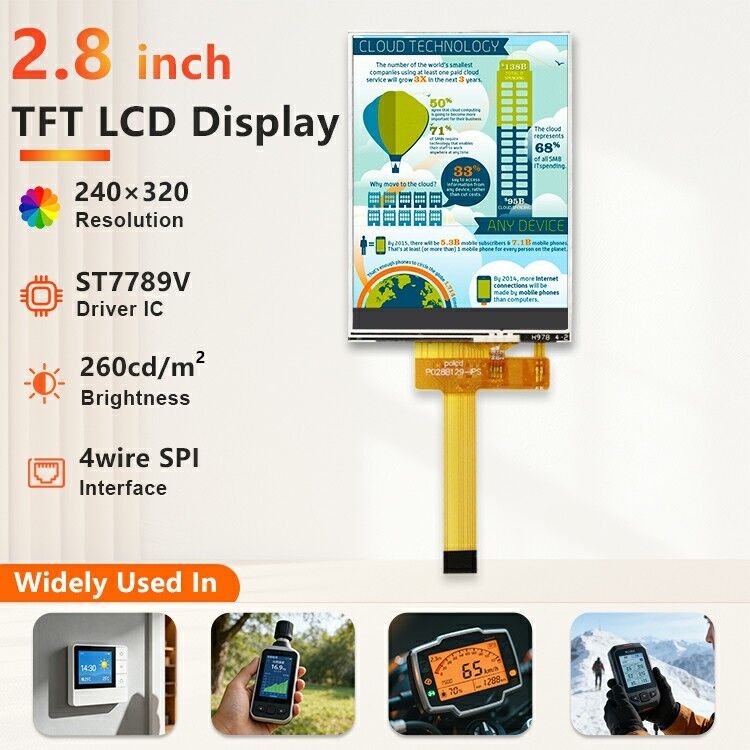

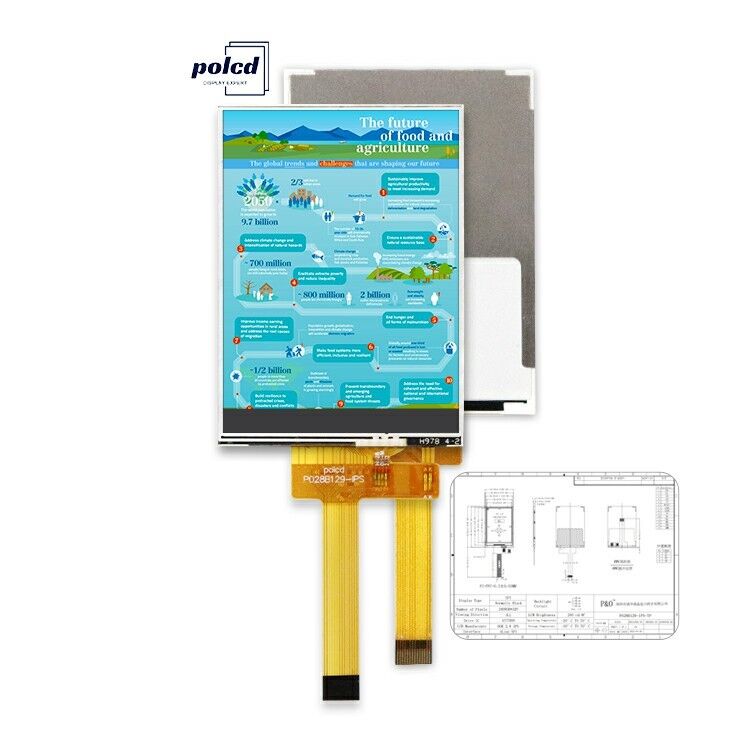

Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface

Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface

2.8 inch TFT LCD display module

240x320 resolution LCD module

SPI RGB MCU interface LCD

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028B129-IPS-TP

Contact Us

Request A Quote
Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface
Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface
Product Details
Resolution:
240x320
Interface:
4wire SPI
Driver IC:
ST7789V
Brightness (cd/m²):
260 Nit
Viewing Angle:
IPS All View Angle
Display Area:
43.20(H)x57.60(V)mm
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability
25,000 PCS per day
RELATED PRODUCTS
Good price Polcd 2.8 Inch ST7789V IC 240*400 Resolution 15 Pins 2.8 Video

Polcd 2.8 Inch ST7789V IC 240*400 Resolution 15 Pins 2.8" SPI LCD Display

Get Best Price
Good price Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface online Video

Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface

Get Best Price
Good price Polcd 2.8 Inch LCD Screen 240x320 MCU Interface Wide View Angle TFT Transflective LCD Module with ST7789P3-G6 online Video

Polcd 2.8 Inch LCD Screen 240x320 MCU Interface Wide View Angle TFT Transflective LCD Module with ST7789P3-G6

Get Best Price
Good price Polcd LCD Manufacturer 4.5 inch 480x854 Gc9503v Rgb interface High Brightness IPS TFT Screen Panel Display online Video

Polcd LCD Manufacturer 4.5 inch 480x854 Gc9503v Rgb interface High Brightness IPS TFT Screen Panel Display

Get Best Price
Contact Us
00-86-13714394335
anna@polcd.com
86-755-21011746
Contact Now
Product Description

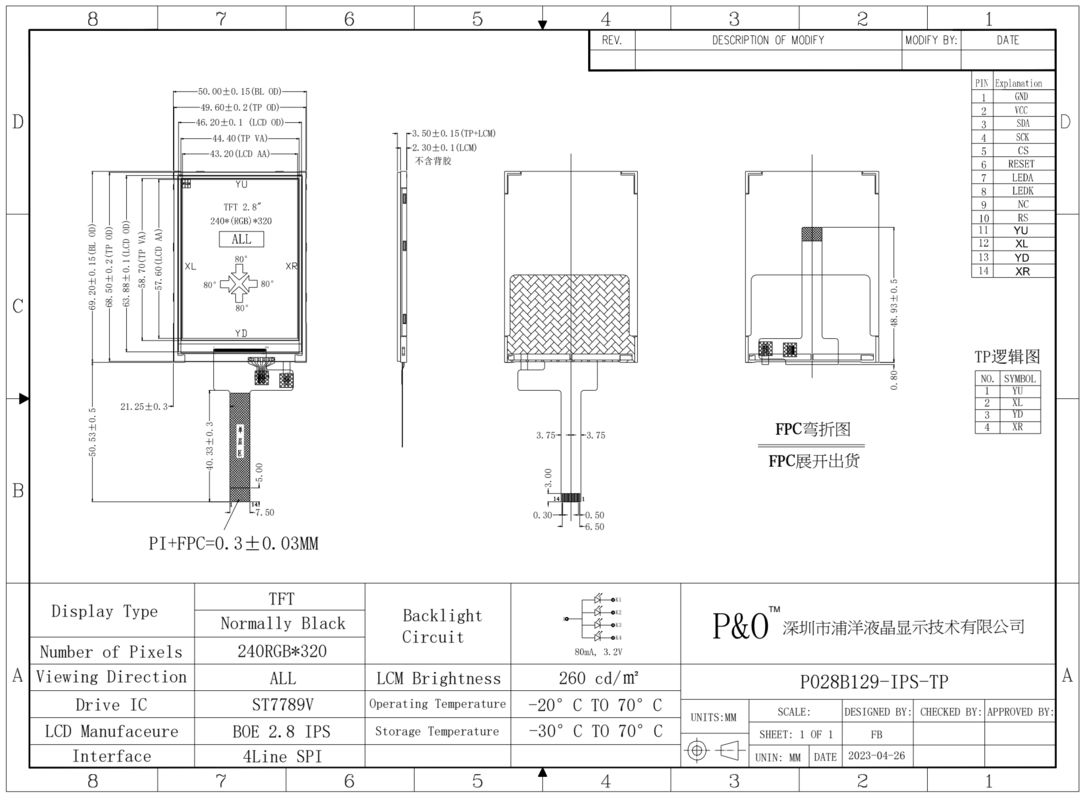

Parameter:

Item Specification
Model P028B129-IPS-TP
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Display area 43.20(H)x57.60(V)
Pixel pitch 0.180(H)x0.180(V)mm
Pins 14 pins
Outline Dimension 50.00x69.20x3.50mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Gray inversion direction --
Display Color 262K
Luminance(cd/m2) 260 nit
Contrast Ratio 1200:1
Surface treatment --
Interface 4wire SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70℃
Storage Temperature -30~80℃


Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface 0

Polcd 2.8 Inch TFT LCD Display Module with 240*320 Resolution SPI/RGB/MCU 14-Pin Interface 1
