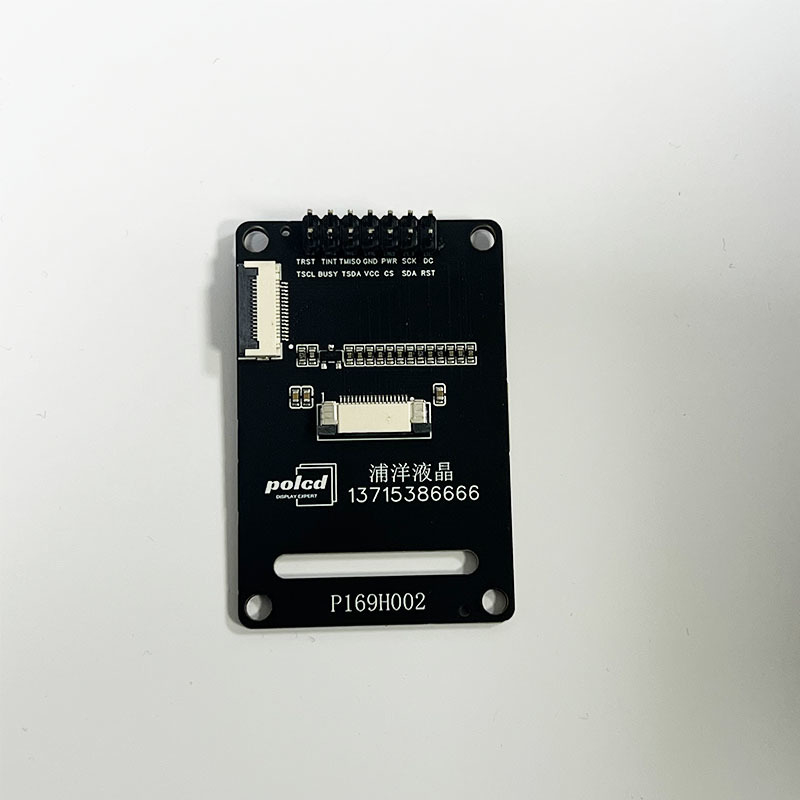

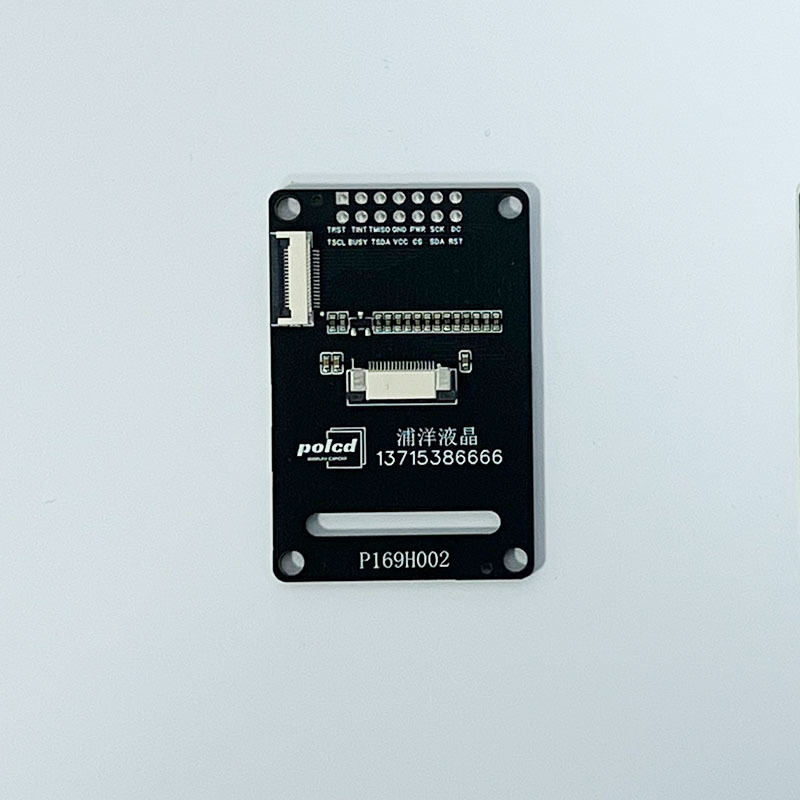

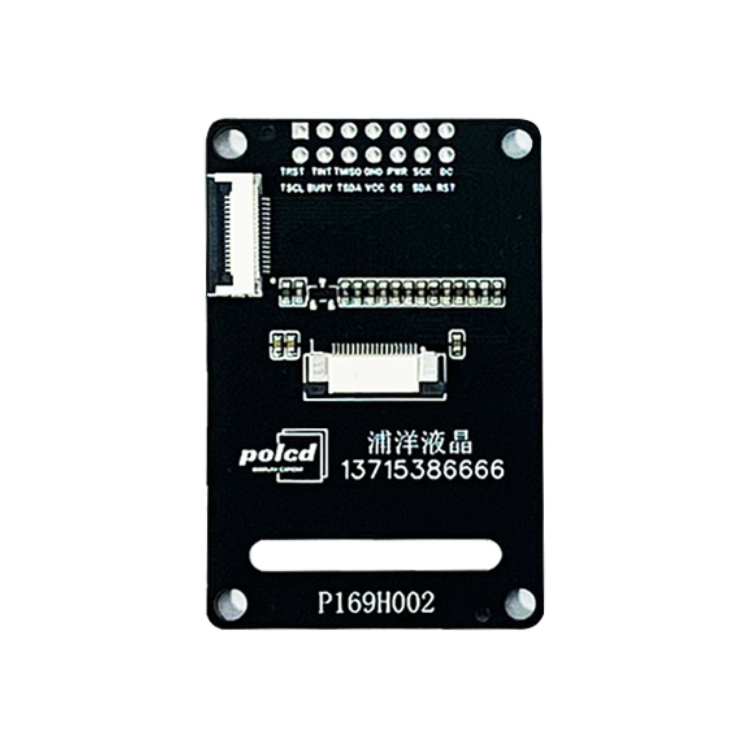

Polcd 1.69 Inch Lcd Screen PCB Printed Circuit Board Design and PCBA Assembly Board

Polcd 1.69 Inch Lcd Screen PCB Printed Circuit Board Design and PCBA Assembly Board

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

PCB28X101

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
1~7 working days
Payment Terms
T/T,L/C,Credit card,PayPal
Supply Ability
500,000 piece per week
Product Description

Key Responsibilities:

Signal Processing & Driving: Converts low-voltage digital video signals (e.g., via RGB, LVDS, MIPI DSI interfaces) into the complex timing and voltage waveforms needed to activate individual pixels on the LCD glass.


Power Management: Generates and regulates the various specific voltage levels required by the LCD panel (logic power, gate/source driver voltages) and often the backlight (LED driver).


Timing Control: Generates critical clock signals (Hsync, Vsync, Dot Clock) to synchronize the row-by-row, pixel-by-pixel updating of the display.


Physical Connection Hub:

Connects to the host device via a cable/connector.

Connects to the LCD glass panel itself, usually via a fine-pitch Flexible Printed Circuit (FPC).

Connects to the backlight unit.

Polcd 1.69 Inch Lcd Screen PCB Printed Circuit Board Design and PCBA Assembly Board 0
