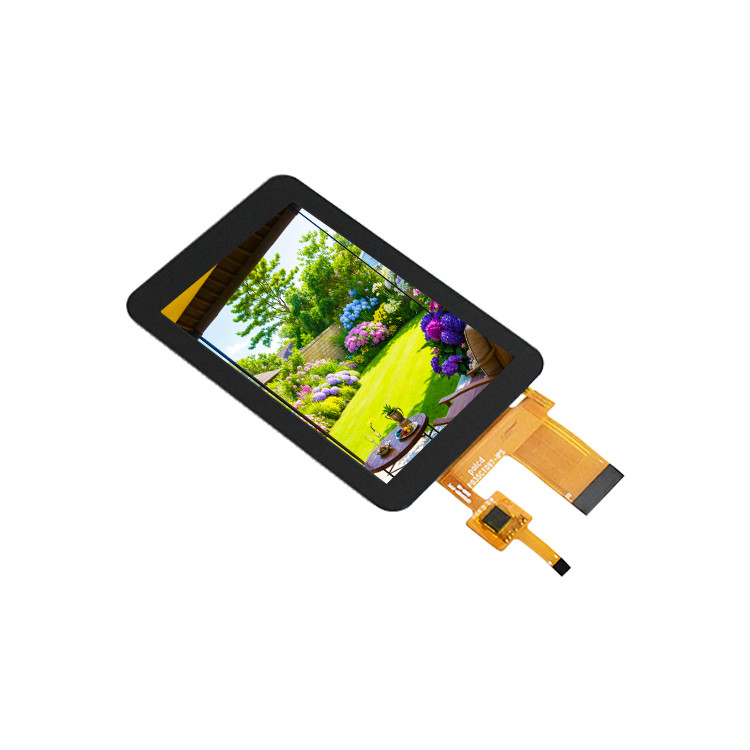

Polcd High Luminance 3.5 Inch Small TFT LCD Display 30pin 320*480 Capacitive Touch Screen

Polcd High Luminance 3.5 Inch Small TFT LCD Display 30pin 320*480 Capacitive Touch Screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P035CT097-IPS-CTP

Contact Us

Request A Quote
Polcd High Luminance 3.5 Inch Small TFT LCD Display 30pin 320*480 Capacitive Touch Screen
Polcd High Luminance 3.5 Inch Small TFT LCD Display 30pin 320*480 Capacitive Touch Screen Polcd High Luminance 3.5 Inch Small TFT LCD Display 30pin 320*480 Capacitive Touch Screen Polcd High Luminance 3.5 Inch Small TFT LCD Display 30pin 320*480 Capacitive Touch Screen Polcd High Luminance 3.5 Inch Small TFT LCD Display 30pin 320*480 Capacitive Touch Screen
Product Details
Resolution:
320*480
Interface:
4Line SPI
LCM Driver Ic:
ST7796U
Brightness (cd/m²):
330 Nit
Viewing Angle:
IPS All View Angle
Display Area:
48.96(H)x73.44(V)mm
CTP Drive Ic:
GT911
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability
25,000 PCS per day
RELATED PRODUCTS
Good price Polcd 3.5 Inch IPS TFT LCD 320*480 Ili9488 Drive Ic 600:1 Contrast Ratio LCD Display Modules online Video

Polcd 3.5 Inch IPS TFT LCD 320*480 Ili9488 Drive Ic 600:1 Contrast Ratio LCD Display Modules

Get Best Price
Good price Polcd High Luminance 3.5 Inch Small TFT LCD Display 30pin 320*480 Capacitive Touch Screen online Video

Polcd High Luminance 3.5 Inch Small TFT LCD Display 30pin 320*480 Capacitive Touch Screen

Get Best Price
Good price Polcd High Contrast Ratio 3.5 Inch LCD Screen High Brightness 320x480 Capacitive Touch Panel Tft Lcd Display online Video

Polcd High Contrast Ratio 3.5 Inch LCD Screen High Brightness 320x480 Capacitive Touch Panel Tft Lcd Display

Get Best Price
Good price Polcd Custom 3.5 Inch 320x480 Capacitive Touch Panel 500nit ST7796U IPS Tft Lcd Display Module online Video

Polcd Custom 3.5 Inch 320x480 Capacitive Touch Panel 500nit ST7796U IPS Tft Lcd Display Module

Get Best Price
Contact Us
00-86-13714394335
anna@polcd.com
86-755-21011746
Contact Now
Product Description

Parameter:

Model P035CT097-IPS-CTP
Screen Size 3.5 inch
Number of Pixel 320RGB(H)x480(V)
Display area 48.96(H)x73.44(V)mm
Pixel pitch 0.153(H)x0.153(V)mm
Pins 30 pins
Outline Dimension 61x92.44x3.8±0.2mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 330 nit
Contrast Ratio 1000:1
Interface 4Line SPI
Back-light LED Side-light type
Drive IC ST7796U
CTP IC GT911
Operation Temperature -20~70℃
Storage Temperature -30~80℃



Polcd High Luminance 3.5 Inch Small TFT LCD Display 30pin 320*480 Capacitive Touch Screen 0
