Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module

Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module

240x320 TFT Display

2.8 Inch TFT Display

1200:1 TFT Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028HK9853-24P

Contact Us

Request A Quote
Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module
Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module
Product Details
Screen Size:
2.8 Inch
Resolution:
240RGB(H)x320(V)
Brightness (cd/m²):
200 Nit
Interface:
4wire SPI
Driver Ic:
JD9853
Display Area:
43.20(H)x57.60(V)
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
1~7 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
RELATED PRODUCTS
Good price Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module online Video

Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module

Get Best Price
Good price Polcd ST7262E43 Small Tft Lcd Display RGB 24 Bit 4.3 Inch Tft Lcd 800x480 online Video

Polcd ST7262E43 Small Tft Lcd Display RGB 24 Bit 4.3 Inch Tft Lcd 800x480

Get Best Price
Good price Polcd 2.8'' 15 Pin 240x320 IPS All View Angel TFT LCD Touch Screen Display Panel online Video

Polcd 2.8'' 15 Pin 240x320 IPS All View Angel TFT LCD Touch Screen Display Panel

Get Best Price
Good price Polcd 2.8 inch LCD Module 240x320 ST7789V SPI Interface 14 pin 2.8 TFT Display LCD Screen online Video

Polcd 2.8 inch LCD Module 240x320 ST7789V SPI Interface 14 pin 2.8 TFT Display LCD Screen

Get Best Price
Contact Us
00-86-13714394335
anna@polcd.com
86-755-21011746
Contact Now
Product Description

Parameter:

Model P028HK9853-24P
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Display area 43.20(H)x57.60(V)mm
Pixel pitch 0.180(H)x0.180(V)mm
Pins 24 pins

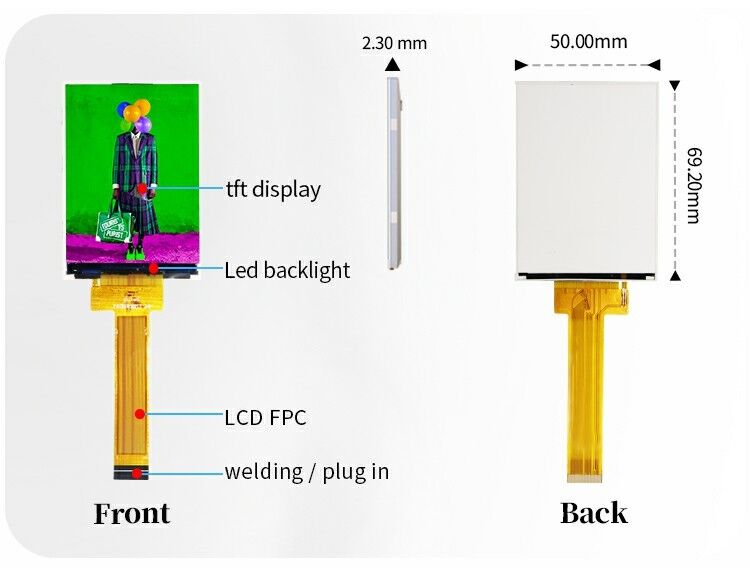

Outline Dimension 50.00x69.20x2.30mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally black
Viewing Direction(eye) ALL
Gray inversion direction --
Display Color 262K
Luminance(cd/m2) 200 nit
Contrast Ratio 1200:1
Surface treatment --
Interface 4-line SPI
Back-light LED Side-light type
Drive IC JD9853
Operation Temperature -20~70℃
Storage Temperature -30~80℃



Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module 0Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module 1Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module 2
