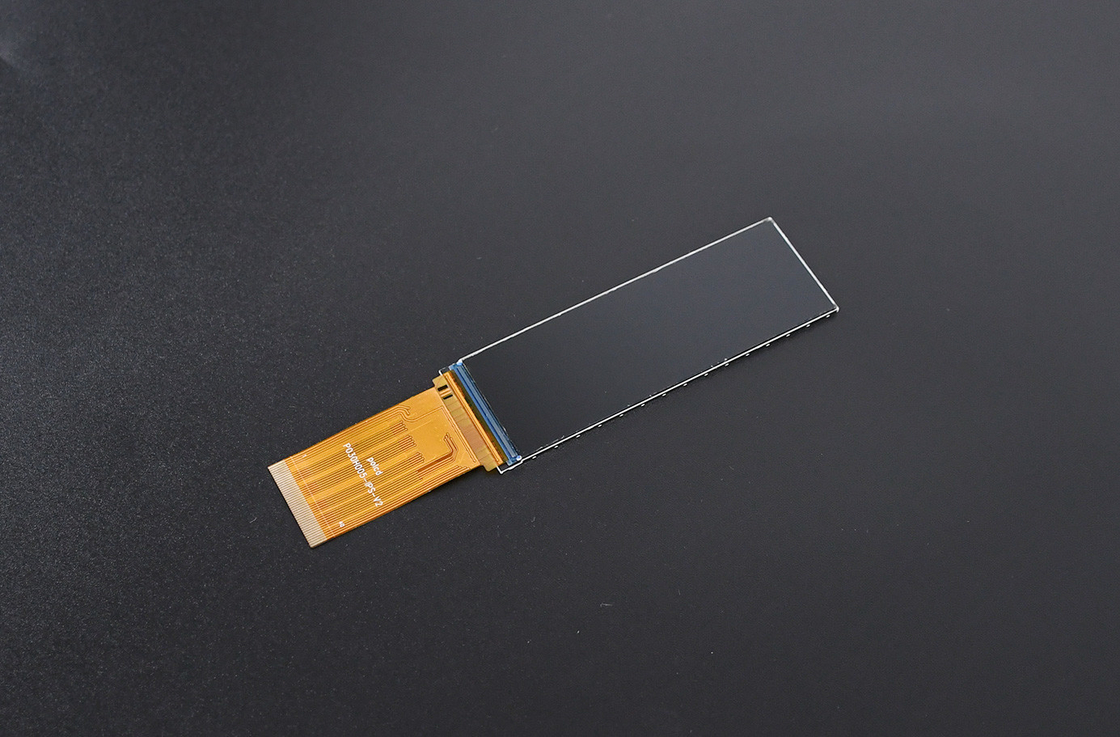

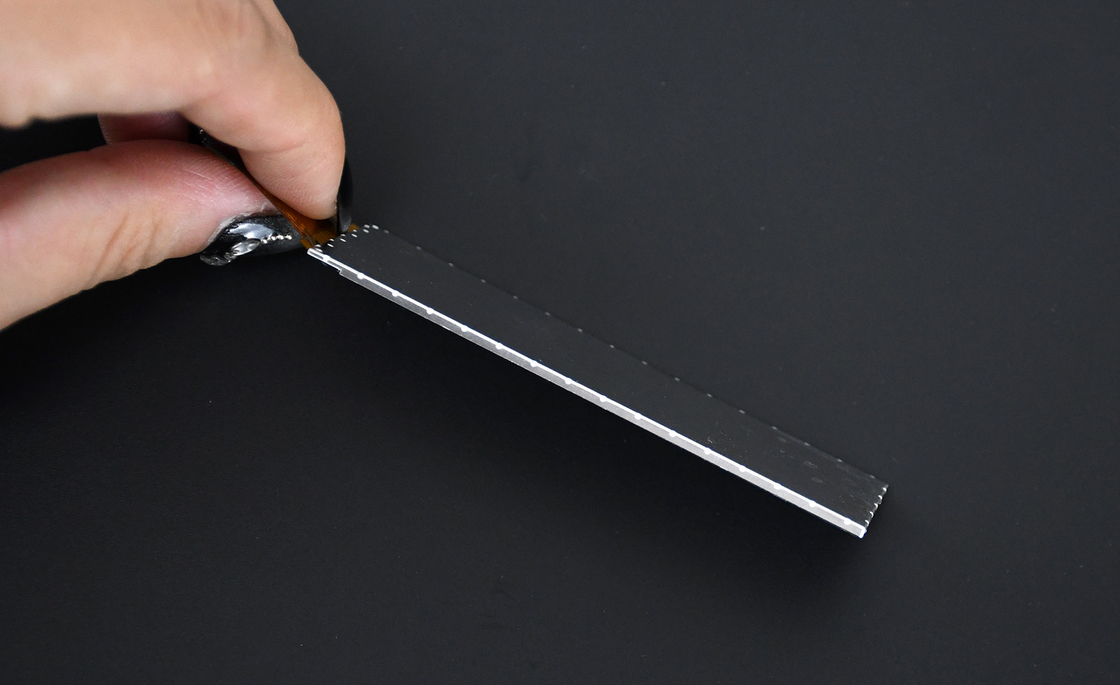

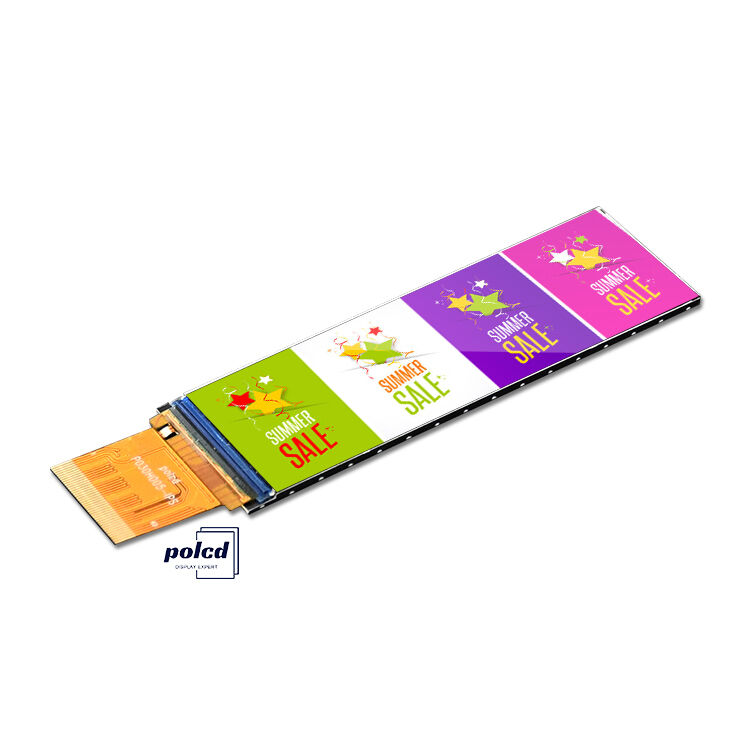

Name: Polcd Small TFT-LCD Display 3.0 Inch 268*800 RGB Interface Industrial IPS All View Angle Lcd Module
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P030H005-IPS
Availability: InStock

Home > Products > TFT LCD Module >

Polcd Small TFT-LCD Display 3.0 Inch 268*800 RGB Interface Industrial IPS All View Angle Lcd Module

RGB Interface TFT LCD Module

3.0 Inch TFT LCD Module

Industrial IPS TFT LCD Module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P030H005-IPS

Request A Quote

Product Details

Screen Size:

3 Inch

Resolution:

268x800

Brightness (cd/m²):

700 Nit

Interface:

RGB565

Driver Ic:

ST7701S

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1~7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd Custom LCD 5.0 inch TFT Panel IPS LCD Screen 400nit 720x1280 LCM Display Module

Get Best Price

Video

Polcd 5 inch TFT Module 720x1280 High Resolution Mipi IPS All Viewing Angle LCD Screen Display

Get Best Price

Video

Polcd 5 inch TFT Module Vertical Screen 720x1280 Mipi interface ST7703 IPS LCD Screen Display

Get Best Price

Video

Polcd 2.1 Inch 480x480 IPS round TFT Color Display LCD Module with MIPI Interface for LCM and Panel

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

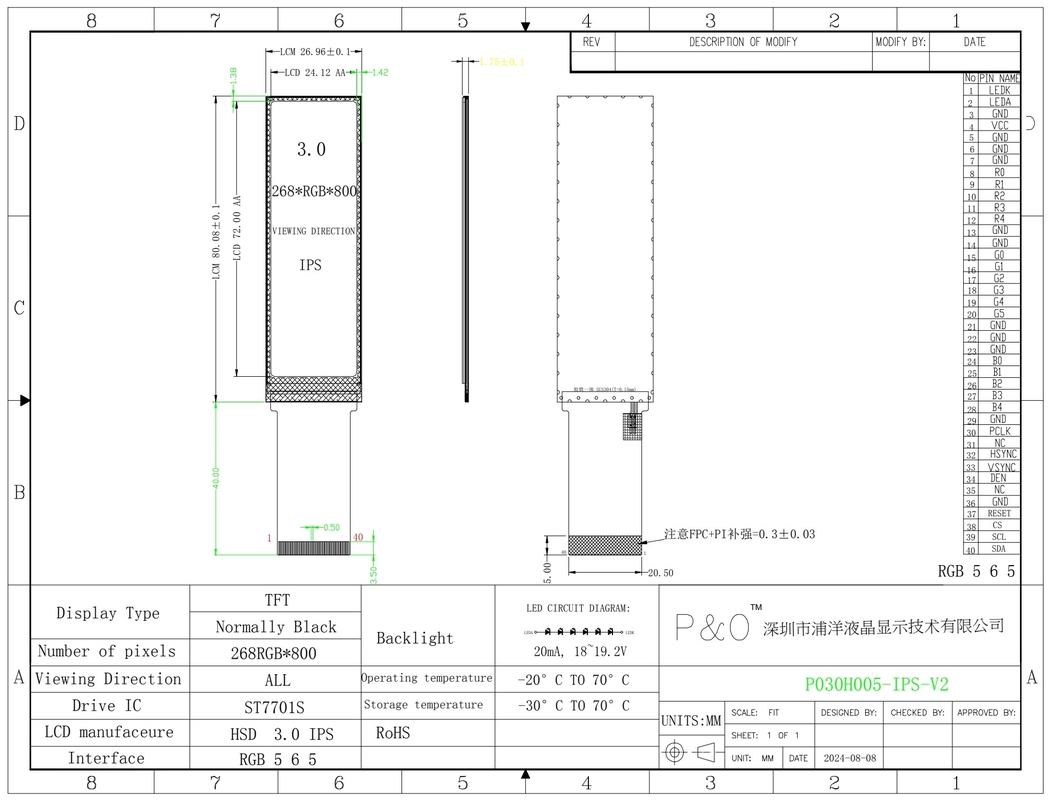

Parameter:

Model	P030H005-IPS-V2
Screen Size	3 inch
Number of Pixel	268RGB(H)x800(V)
Display area	24.12(H)x72(V)mm
Pixel pitch	0.09(H)x0.09(V)mm
Pins	40 pins
Outline Dimension	26.96x80.08x1.75mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	700 nit
Contrast Ratio	1200:1
Interface	RGB565
Back-light	LED Side-light type
Drive IC	ST7701S
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
