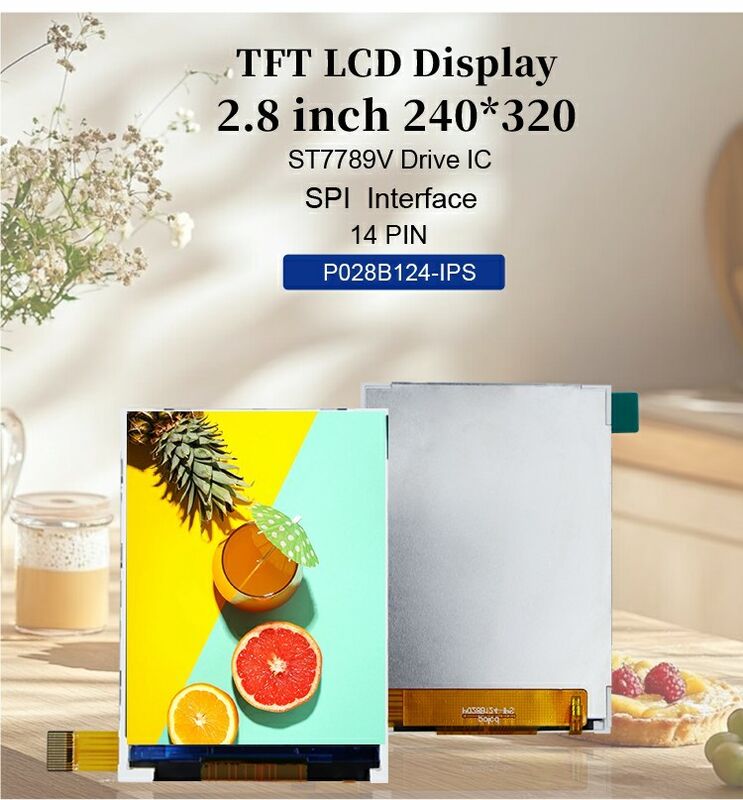

Polcd 2.8 inch LCD Module 240x320 ST7789V SPI Interface 14 pin 2.8 TFT Display LCD Screen

Polcd 2.8 inch LCD Module 240x320 ST7789V SPI Interface 14 pin 2.8 TFT Display LCD Screen

2.8 inch TFT Display LCD Screen

240x320 LCD Module

2.8 inch LCD Module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028B124-IPS

Contact Us

Request A Quote
Polcd 2.8 inch LCD Module 240x320 ST7789V SPI Interface 14 pin 2.8 TFT Display LCD Screen
Polcd 2.8 inch LCD Module 240x320 ST7789V SPI Interface 14 pin 2.8 TFT Display LCD Screen Polcd 2.8 inch LCD Module 240x320 ST7789V SPI Interface 14 pin 2.8 TFT Display LCD Screen Polcd 2.8 inch LCD Module 240x320 ST7789V SPI Interface 14 pin 2.8 TFT Display LCD Screen Polcd 2.8 inch LCD Module 240x320 ST7789V SPI Interface 14 pin 2.8 TFT Display LCD Screen Polcd 2.8 inch LCD Module 240x320 ST7789V SPI Interface 14 pin 2.8 TFT Display LCD Screen
Product Details
Screen Size:
2.8 Inch
Number Of Pixel:
240RGB(H)x320(V)
Display Area:
43.20(H)x57.60(V)
Brightness (cd/m²):
300
Interface:
SPI
Driver Ic:
ST7789V
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
Sample packing box 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability
500,000 piece per week
RELATED PRODUCTS
Good price Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module online Video

Polcd 2.8 Inch TFT Display 240x320 IPS Screen High Contrast 1200:1 TFT Panel LCD Module

Get Best Price
Good price Polcd ST7262E43 Small Tft Lcd Display RGB 24 Bit 4.3 Inch Tft Lcd 800x480 online Video

Polcd ST7262E43 Small Tft Lcd Display RGB 24 Bit 4.3 Inch Tft Lcd 800x480

Get Best Price
Good price Polcd 2.8'' 15 Pin 240x320 IPS All View Angel TFT LCD Touch Screen Display Panel online Video

Polcd 2.8'' 15 Pin 240x320 IPS All View Angel TFT LCD Touch Screen Display Panel

Get Best Price
Good price Polcd 2.8 inch LCD Module 240x320 ST7789V SPI Interface 14 pin 2.8 TFT Display LCD Screen online Video

Polcd 2.8 inch LCD Module 240x320 ST7789V SPI Interface 14 pin 2.8 TFT Display LCD Screen

Get Best Price
Contact Us
00-86-13714394335
anna@polcd.com
86-755-21011746
Contact Now
Product Description

Description:

This 2.8-inch TFT LCD display features IPS technology and an SPI interface, delivering clear and accurate visuals suitable for a range of applications that require high-quality displays in a compact form factor.



Parameter:

Model P028B124-IPS
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Pin 14 pins
Display area 43.20(H)x57.60(V)mm
Pixel pitch 0.180(H)x0.180(V)mm

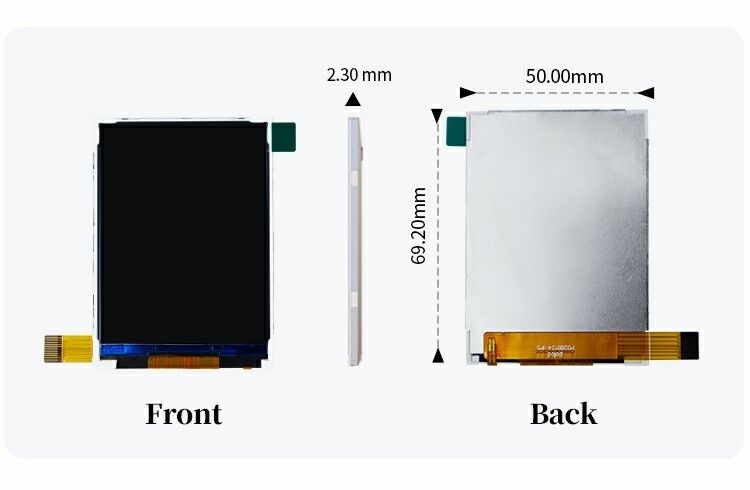

Outline Dimension 50.00x69.20x2.30mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 1200:1
Interface 4wire SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70℃
Storage Temperature -30~80℃



Polcd 2.8 inch LCD Module 240x320 ST7789V SPI Interface 14 pin 2.8 TFT Display LCD Screen 0

Polcd 2.8 inch LCD Module 240x320 ST7789V SPI Interface 14 pin 2.8 TFT Display LCD Screen 1

Polcd 2.8 inch LCD Module 240x320 ST7789V SPI Interface 14 pin 2.8 TFT Display LCD Screen 2
