Name: Polcd 1.9 Inch 170*320 ST7789P3-G6 SPI Bar TFT LCD Module Screen 8 Pin IPS Vertical LCM Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P019B01-8
Availability: InStock

Home > products > Custom TFT Displays >

Polcd 1.9 Inch 170*320 ST7789P3-G6 SPI Bar TFT LCD Module Screen 8 Pin IPS Vertical LCM Display

Bar TFT LCD Module Screen

170*320 TFT LCD Module Screen

1.9 inch TFT LCD Module Screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P019B01-8

Request A Quote

Product Details

Screen Size:

1.9 Inch

Resolution:

170x320

Active Area:

22.7(H)x42.72(V)mm

Brightness (cd/m²):

600 Nit

Interface:

4 Line SPI

Driver Ic:

ST7789P3-G6

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

20 cm * 30 cm * 40 cm

Delivery Time

1~7 working days

Payment Terms

T/T, L/C, Credit card, PayPal

Supply Ability

500,000 piece per week

Polcd 3.5'' 3.5 Inch SPI Interface 320x480 Resolution ST7796U Driver IC IPS TFT LCD Display Module

Get Best Price

Video

Polcd 2.8 Inch Matrix 240x320 TFT Display 20 Pin FPC LCM ST7789 Customizable Manufacturer LCD Module

Get Best Price

Video

Polcd 2.8 Inch TFT Color Display 240*320 Resolution SPI interface 14 pin 350nit LCD Screen

Get Best Price

Video

Polcd Small Display TFT IPS 2.8 Inch SPI Interface 240*320 RGB Color Screen ST7789P3-G6 TFT LCD

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

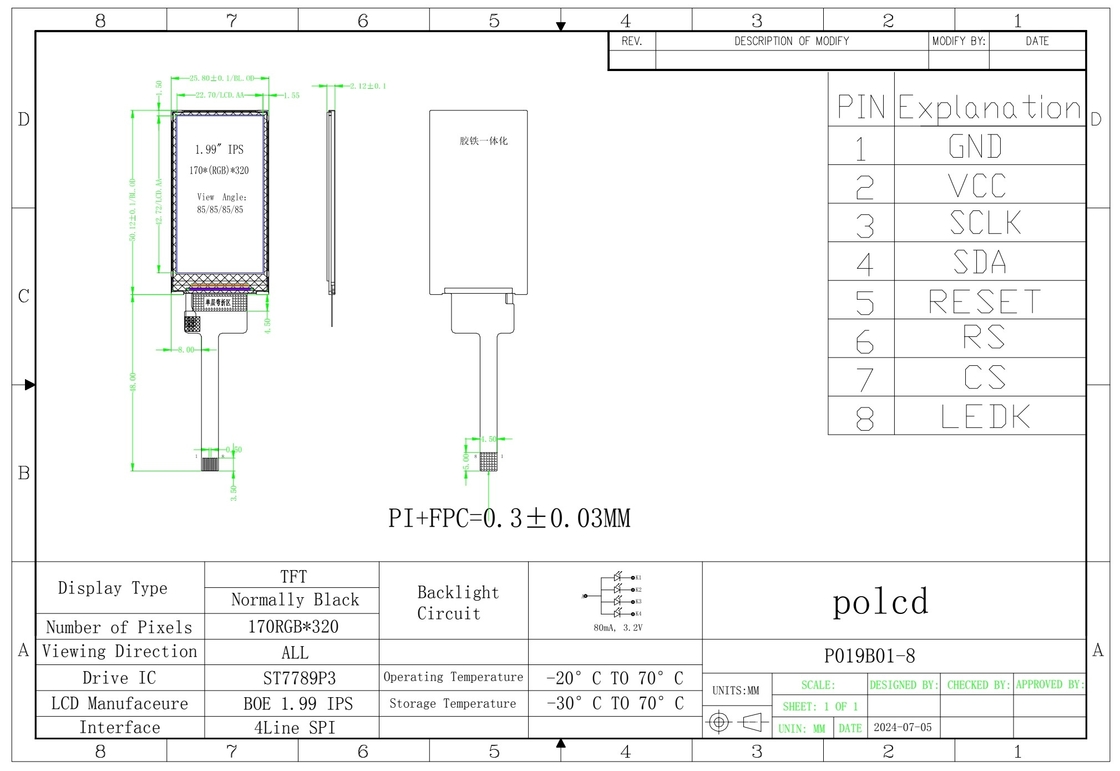

Product Description

Parameter:

Model	P019B01-8
Screen Size	1.9 inch
Number of Pixel	170RGB(H)x320(V)
Display area	22.7(H)x42.72(V)mm
Pixel pitch	133.5(H)x133.5(V)um
Pins	8 pins
Outline Dimension	25.8x50.12x2.12±0.1mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	600 nit
Contrast Ratio	800:1
Interface	4W SPI
Back-light	LED Side-light type
Drive IC	ST7789P3-G6
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
