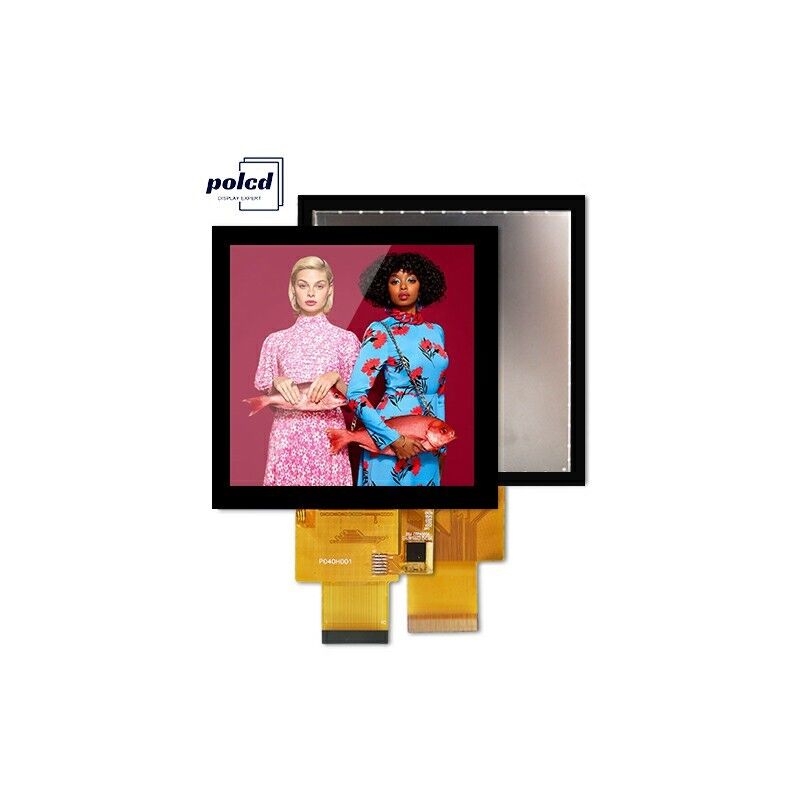

Name: Polcd 4 Inch Lcd Panel 480*480 IPS LCD Display High Brightness RGB Interface TFT LCD Module
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P040H001-CTP
Availability: InStock

Home > Products > TFT LCD Module >

Polcd 4 Inch Lcd Panel 480*480 IPS LCD Display High Brightness RGB Interface TFT LCD Module

480*480 IPS LCD Display

High Brightness TFT LCD Module

4 inch Lcd Panel

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P040H001-CTP

Request A Quote

Product Details

Size (inch):

3.97 Inch 480*480

Brightness (cd/m²):

350

Interface:

RGB 18bit

Driver IC:

ST7701S

PIN:

40 Pin

Viewing Direction(eye):

IPS Full View Angle

Contrast Ratio:

800:1

Display Area:

71.856(H)x70.176(V)mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd Custom LCD 5.0 inch TFT Panel IPS LCD Screen 400nit 720x1280 LCM Display Module

Get Best Price

Video

Polcd 5 inch TFT Module 720x1280 High Resolution Mipi IPS All Viewing Angle LCD Screen Display

Get Best Price

Video

Polcd 5 inch TFT Module Vertical Screen 720x1280 Mipi interface ST7703 IPS LCD Screen Display

Get Best Price

Video

Polcd 2.1 Inch 480x480 IPS round TFT Color Display LCD Module with MIPI Interface for LCM and Panel

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

TFT Display Description:

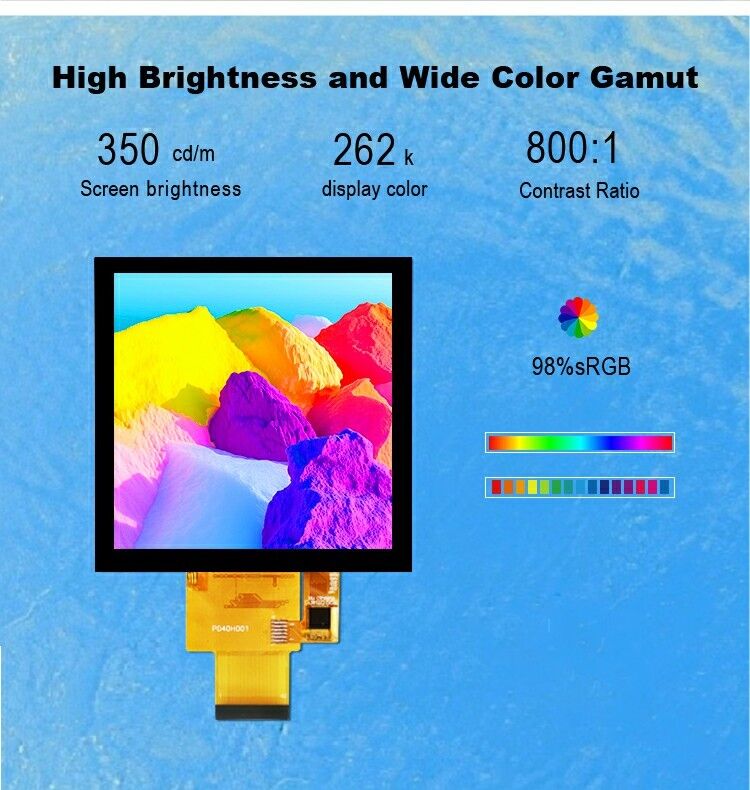

A 3.97 inch TFT LCD with IPS technology provides wider viewing angles and higher contrast ratios for clearer and more realistic image display, making it suitable for various applications.

Parameter:

Model No.	P040H001-CTP
Screen Size	3.97 inch
Number of Pixel	480RGB(H)x480(V)
Display area	71.856(H)x70.176(V)mm
Pixel pitch	0.1497(H)x0.1462(V)mm
Pin	40 pin
Outline Dimension	84.90x84.90x2.35mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black/Transmissive
Viewing Direction(eye)	ALL
Display Color	262k
Luminance(cd/m²)	350 nit
Contrast Ratio	800:1
Interface	RGB 18BIT
Back-light	LED Side-light type
Drive IC	ST7701S
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Product advantages

A 3.97 inch TFT LCD with IPS technology and an RGB interface has several product advantages. Firstly, its IPS technology provides wider viewing angles and higher contrast ratios, ensuring accurate color reproduction even at extreme viewing angles. Secondly, its high resolution and excellent color performance make it suitable for various applications such as portable devices, automotive electronics, medical equipment, and industrial control systems. Thirdly, its RGB interface enables easy integration with various display controllers, making it compatible with a wide range of devices. Additionally, it is a low-power consumption display, making it ideal for use in portable devices with limited battery life. Finally, its compact size and lightweight design make it easy to integrate into different applications, making it an attractive display option for manufacturers.
