Polcd 3.5 Inch TFT LCD Display Module RGB SPI interface 320x240 Colorful Square LCD Modules

Polcd 3.5 Inch TFT LCD Display Module RGB SPI interface 320x240 Colorful Square LCD Modules

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P035B084-IPS

Contact Us

Request A Quote
Polcd 3.5 Inch TFT LCD Display Module RGB SPI interface 320x240 Colorful Square LCD Modules
Polcd 3.5 Inch TFT LCD Display Module RGB SPI interface 320x240 Colorful Square LCD Modules Polcd 3.5 Inch TFT LCD Display Module RGB SPI interface 320x240 Colorful Square LCD Modules Polcd 3.5 Inch TFT LCD Display Module RGB SPI interface 320x240 Colorful Square LCD Modules Polcd 3.5 Inch TFT LCD Display Module RGB SPI interface 320x240 Colorful Square LCD Modules Polcd 3.5 Inch TFT LCD Display Module RGB SPI interface 320x240 Colorful Square LCD Modules
Product Details
Size (inch):
3.5 Inch 320*240
Brightness (cd/m²):
350 Nit
Interface:
3Line_SPI_24BIT_RGB
Driver IC:
ST7272A
Viewing Direction(eye):
ALL
Contrast Ratio:
1200:1
Display Area:
70.08(H) X 52.56(V) Mm
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
RELATED PRODUCTS
Good price Polcd 3 inch Color Screen Module 268*800 ST7701S ic High Brightness IPS 3 Video

Polcd 3 inch Color Screen Module 268*800 ST7701S ic High Brightness IPS 3" LCD Tft Display

Get Best Price
Good price Polcd Small Size 1.9 inch LCD Display 170*320 Transmissive IPS TFT LCD Module Screen online Video

Polcd Small Size 1.9 inch LCD Display 170*320 Transmissive IPS TFT LCD Module Screen

Get Best Price
Good price Polcd 3.5 Inch TFT LCD Display 320x240 SPI RGB Interface and Colorful Square Screen LCD Modules online Video

Polcd 3.5 Inch TFT LCD Display 320x240 SPI RGB Interface and Colorful Square Screen LCD Modules

Get Best Price
Good price Polcd 2.4 inch LCM Module Transflective SPI MCU Welding 20pin Resolution 240x320 TFT LCD Screen online Video

Polcd 2.4 inch LCM Module Transflective SPI MCU Welding 20pin Resolution 240x320 TFT LCD Screen

Get Best Price
Contact Us
00-86-13714394335
anna@polcd.com
86-755-21011746
Contact Now
Product Description

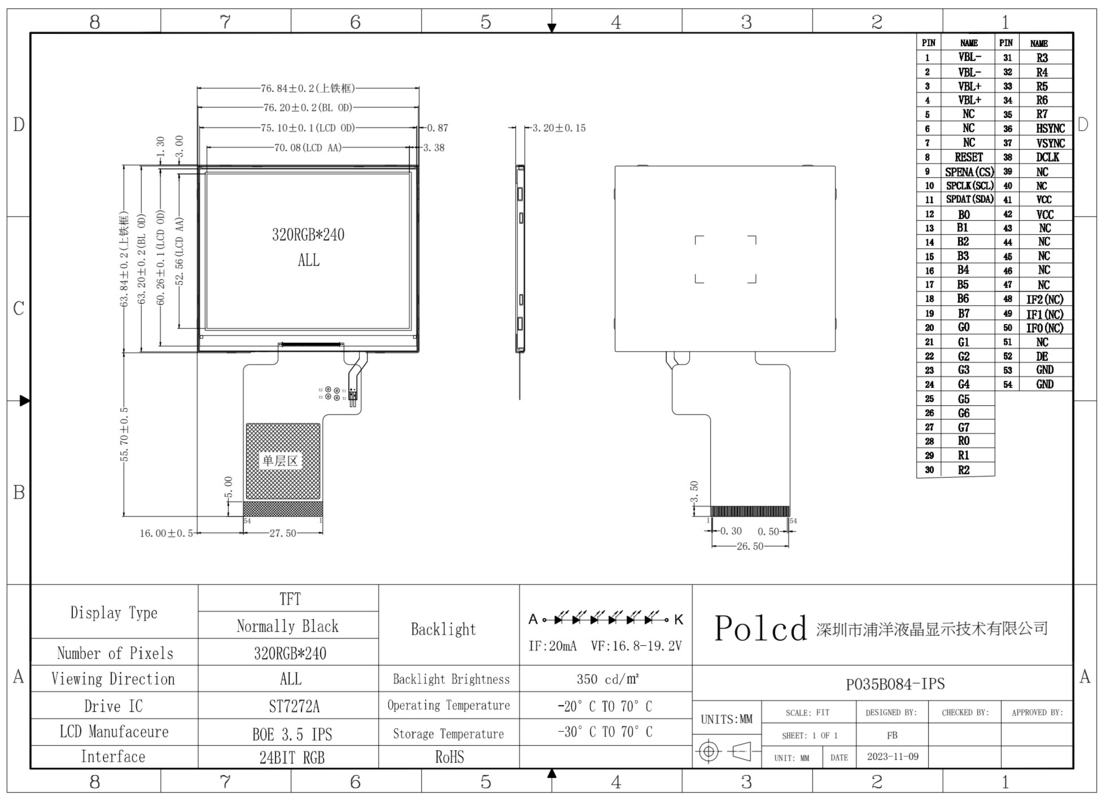

Parameter:

Model P035B084-IPS
Screen Size 3.5 inch
Number of Pixel 320RGB(H)x240(V)
Display area 70.08(H)x52.56(V)mm
Pixel pitch 0.073(H)x0.219(V)mm
Pins 54 pins

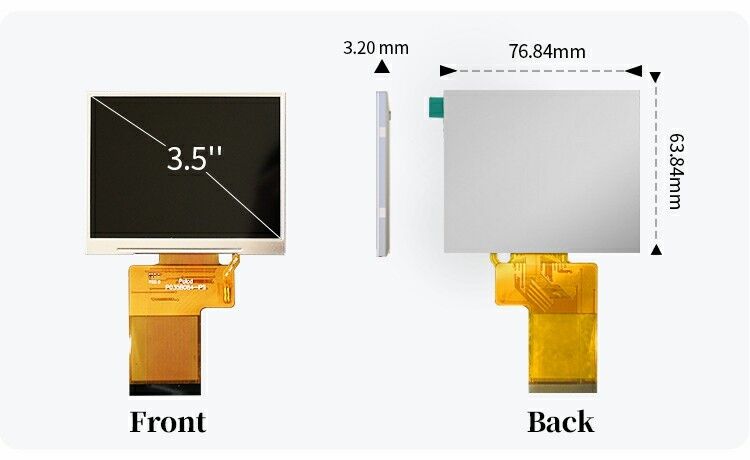

Outline Dimension 76.84x63.84x3.20mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 16.7M
Luminance(cd/m2) 350 nit
Contrast Ratio 1200:1
Interface 3Line_SPI_24BIT_RGB

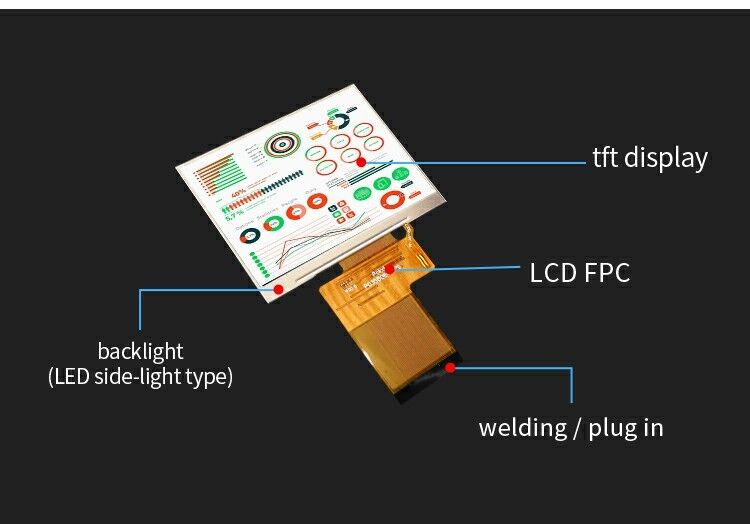

Back-light LED Side-light type
Drive IC ST7272A
Operation Temperature -20~70℃
Storage Temperature -30~80℃



Polcd 3.5 Inch TFT LCD Display Module RGB SPI interface 320x240 Colorful Square LCD Modules 0Polcd 3.5 Inch TFT LCD Display Module RGB SPI interface 320x240 Colorful Square LCD Modules 1
