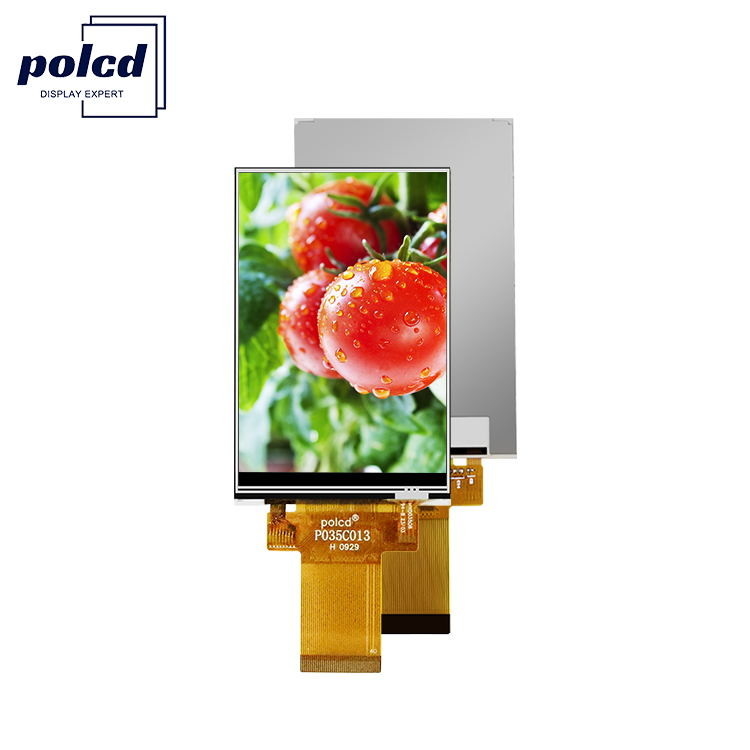

Name: Polcd 3.5 inch MCU SPI interface ILI9488 TFT LCD Screen with Resistive Touch Panel 320*480 3.5" IPS LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P035C013-RTP
Availability: InStock

Home > products > TFT LCD Module >

Polcd 3.5 inch MCU SPI interface ILI9488 TFT LCD Screen with Resistive Touch Panel 320*480 3.5" IPS LCD Display

3.5 inch TFT LCD Screen

320*480 TFT LCD Screen

Resistive Touch Panel TFT LCD Screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P035C013-RTP

Request A Quote

Product Details

Screen Size:

3.5 Inch

Resolution:

320*480

Brightness (cd/m²):

300 Nit

Interface:

MCU 8/16bit SPI 3/4wire

Driver Ic:

ILI9488

Display Area:

48.96(H)x73.44(V)mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

20 cm * 30 cm * 40 cm

Delivery Time

1~7 working days

Payment Terms

T/T, L/C, Credit card, PayPal

Supply Ability

500,000 piece per week

Polcd 3.5 Inch IPS TFT LCD 320*480 Ili9488 Drive Ic 600:1 Contrast Ratio LCD Display Modules

Get Best Price

Video

Polcd High Luminance 3.5 Inch Small TFT LCD Display 30pin 320*480 Capacitive Touch Screen

Get Best Price

Video

Polcd Colors 265K 2.8 inch TFT Module 57.6mm Normally White SPI interface Lcd tft Module

Get Best Price

Video

Polcd Custom 3.5 Inch 320x480 Capacitive Touch Panel 500nit ST7796U IPS Tft Lcd Display Module

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

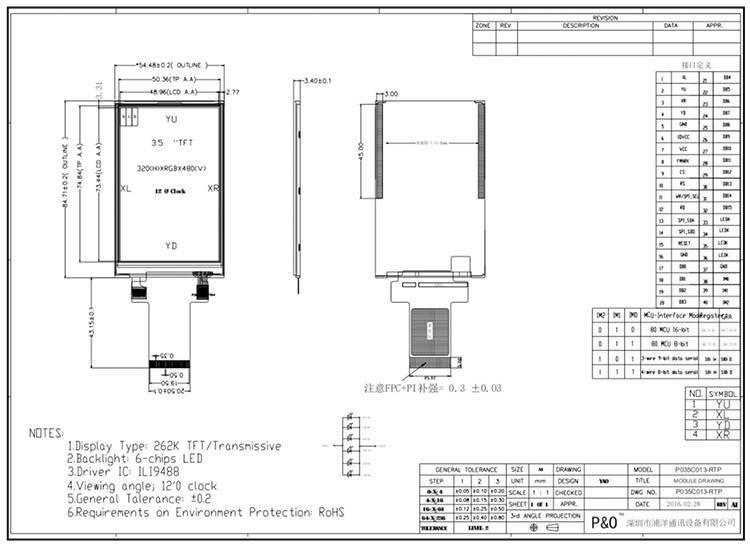

Model	P035C013-RTP
Screen Size	3.5 inch
Number of Pixel	320RGB(H)x480(V)
Display area	48.96(H)x73.44(V)mm
Pixel pitch	0.153(H)x0.153(V)mm
Pins	20 pins

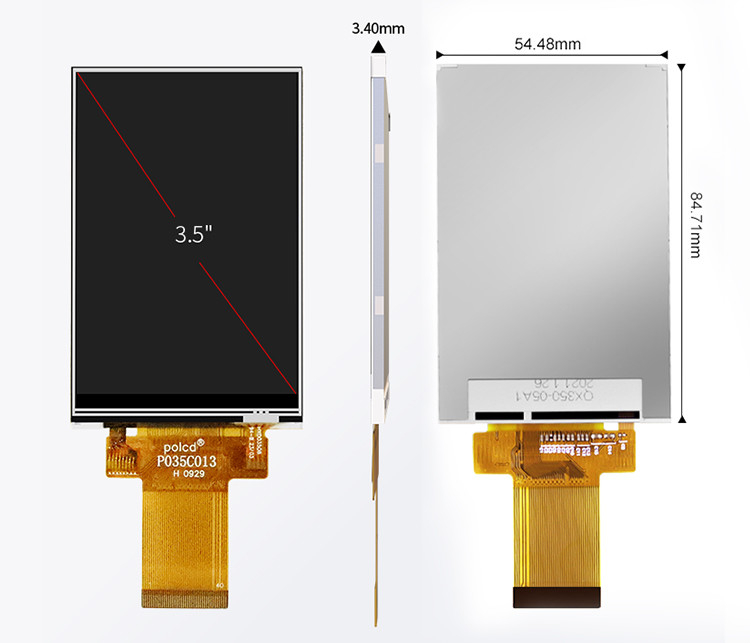

Outline Dimension	54.48x84.71x3.40mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	12 0'CLOCK
Display Color	262k
Luminance(cd/m²)	300 nit
Contrast Ratio	500:1
Interface	MCU 8/16bit SPI 3/4wire
Back-light	LED Side-light type
Drive IC	ILI9488
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Features and benefits of the 3.5 inch TFT LCD:

Size and resolution: The 3.5 inch TFT LCD has a diagonal size of 3.5 inches and typically has a resolution of 320x480 pixels, providing a high-quality display for various applications.

Color display: The TFT LCD can display up to 262,144 colors, providing accurate color representation and making it ideal for displaying images and videos.

Wide viewing angle: The TFT LCD typically has a wide viewing angle, allowing for clear viewing from different angles without distortion or color shift.

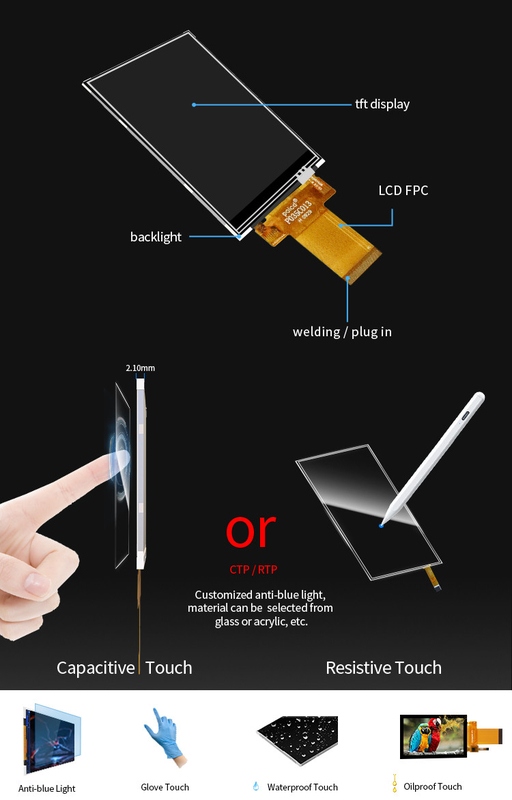

Touch screen support: The TFT LCD can support capacitive touch screen input, allowing users to select, slide, and zoom with their fingers.

Low power consumption: TFT LCD technology typically has low power consumption, which is important for devices that run on battery power.

Durability: TFT LCDs are durable and can withstand shock and vibration, making them suitable for use in various applications, including handheld devices, automotive displays, and medical equipment.

Customization: The 3.5 inch TFT LCD can be customized to meet specific application requirements, including different sizes, FPC Shape, and brightness.

Polcd 3.5 inch MCU SPI interface ILI9488 TFT LCD Screen with Resistive Touch Panel 320*480 3.5" IPS LCD Display 0
