Polcd Small LCD 2.8'' 240x320 Industrial IPS Color Screen Full View 2.8 inch Parallel Port TFT LCD Display

Polcd Small LCD 2.8'' 240x320 Industrial IPS Color Screen Full View 2.8 inch Parallel Port TFT LCD Display

Full View TFT LCD Display

2.8'' TFT LCD Display

240x320 TFT LCD Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028B123-10-IPS

Contact Us

Request A Quote
Product Details
Number Of Pixel:
240x320
Screen Size:
2.8 Inch
Display Area:
43.20(H)x57.60(V)
Brightness (cd/m²):
300 Nit
Interface:
4wire SPI
Driver Ic:
ST7789V
Viewing Direction(eye):
ALL
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
Sample packing box 20*18*13cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

TFT Display Description:

This is a 2.8-inch TFT LCD display with IPS technology, offering clear and accurate visuals. Its compact size and versatile functionality make it ideal for various applications, from consumer electronics to industrial equipment.

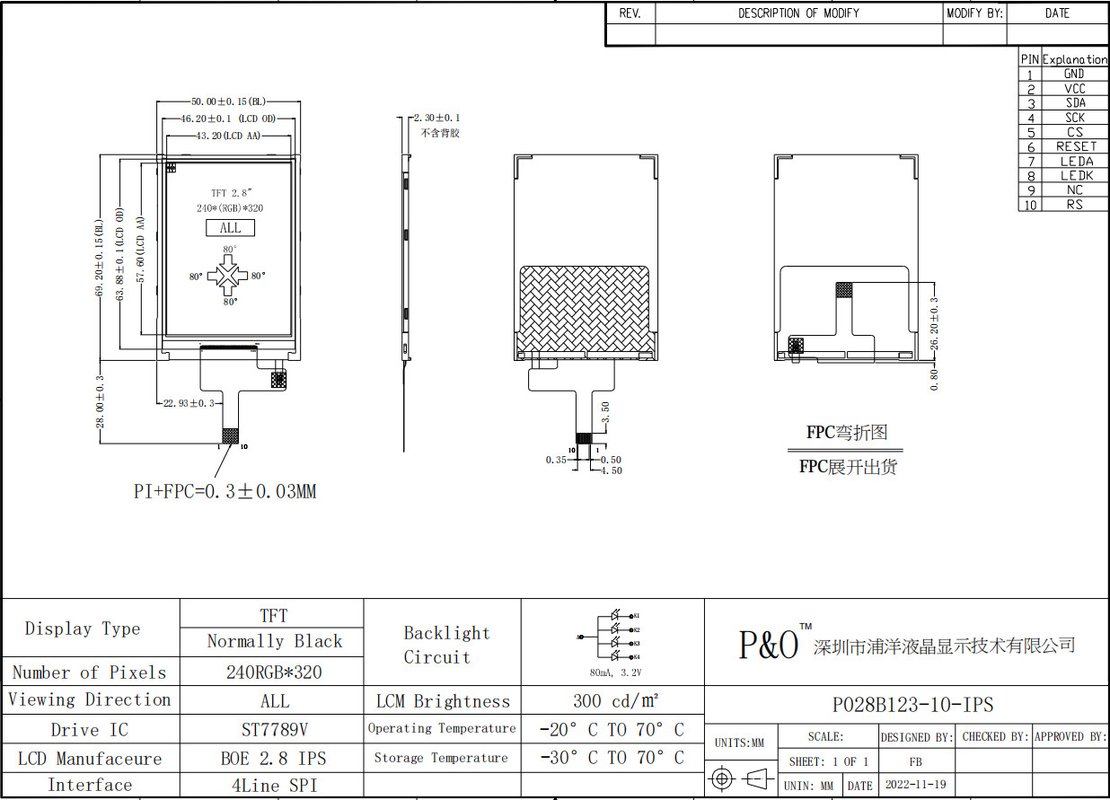

Parameter:

Model P028B123-10-IPS
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Pin 10 pin
Display area 43.20(H)x57.60(V)mm
Pixel pitch 0.180(H)x0.180(V)mm

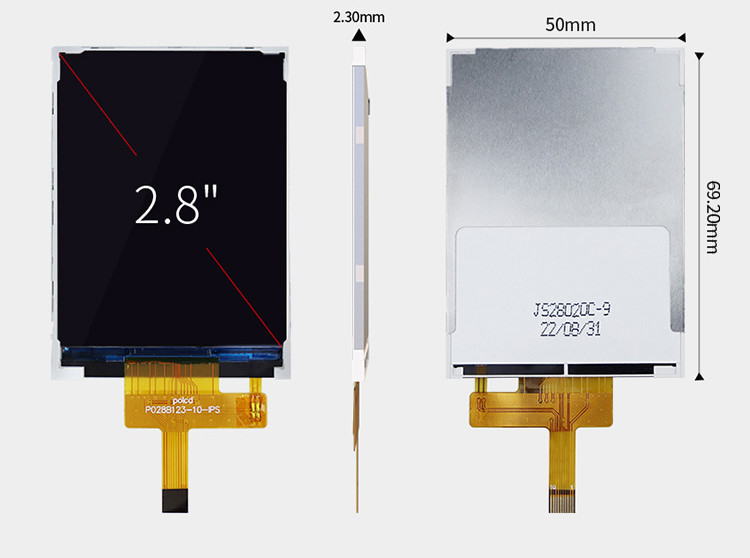

Outline Dimension 50.00x69.20x2.30mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 1200:1
Interface 4wire SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70℃
Storage Temperature -30~80℃



Polcd Small LCD 2.8'' 240x320 Industrial IPS Color Screen Full View 2.8 inch Parallel Port TFT LCD Display 0Polcd Small LCD 2.8'' 240x320 Industrial IPS Color Screen Full View 2.8 inch Parallel Port TFT LCD Display 1
