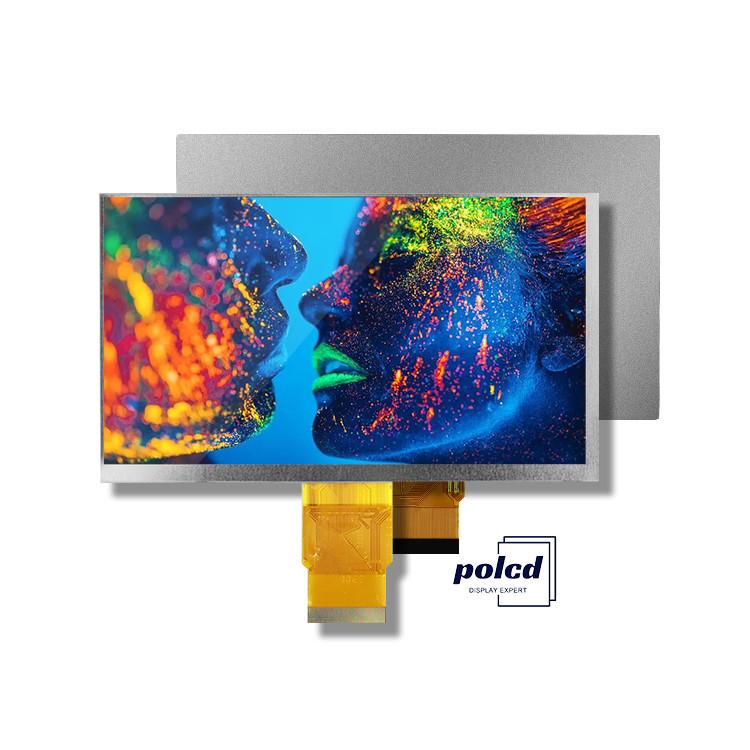

Polcd 7 inch Tft Module 800X480 High Brightness IPS Screen RGB Interface Capacitive Touch Panel 7" TFT LCD Display

Polcd 7 inch Tft Module 800X480 High Brightness IPS Screen RGB Interface Capacitive Touch Panel 7" TFT LCD Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P070C012

Contact Us

Request A Quote
Product Details
Size (inch):
7 Inch 800x480
Brightness (cd/m²):
300 Nit
Interface:
RGB 24bit
Driver Ic:
1*EK9716BD4 + 1*EK73002AB2
Viewing Direction(eye):
6 O'clock
Contrast Ratio:
500:1
Display Area:
153.84(H)x85.63(V)mm
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

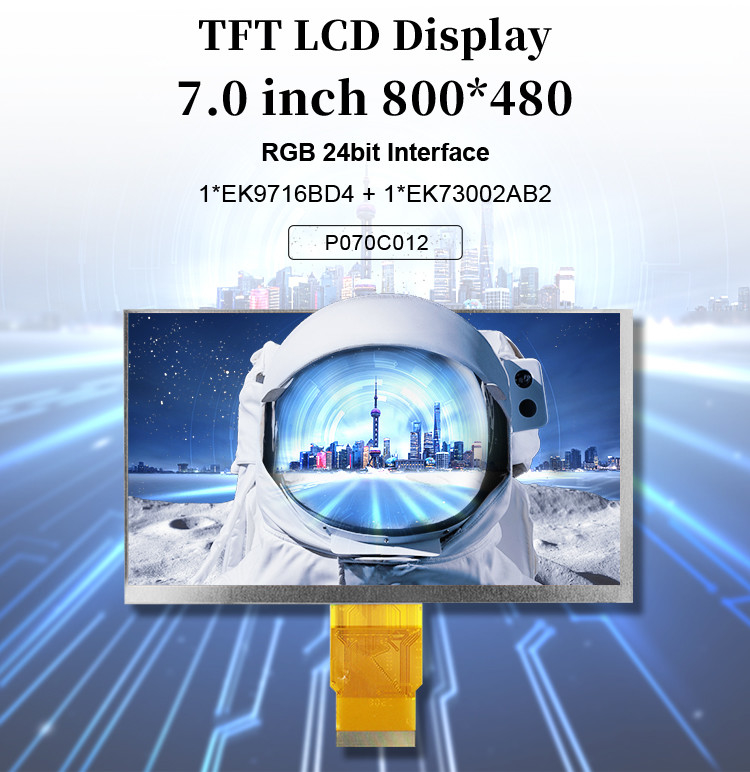

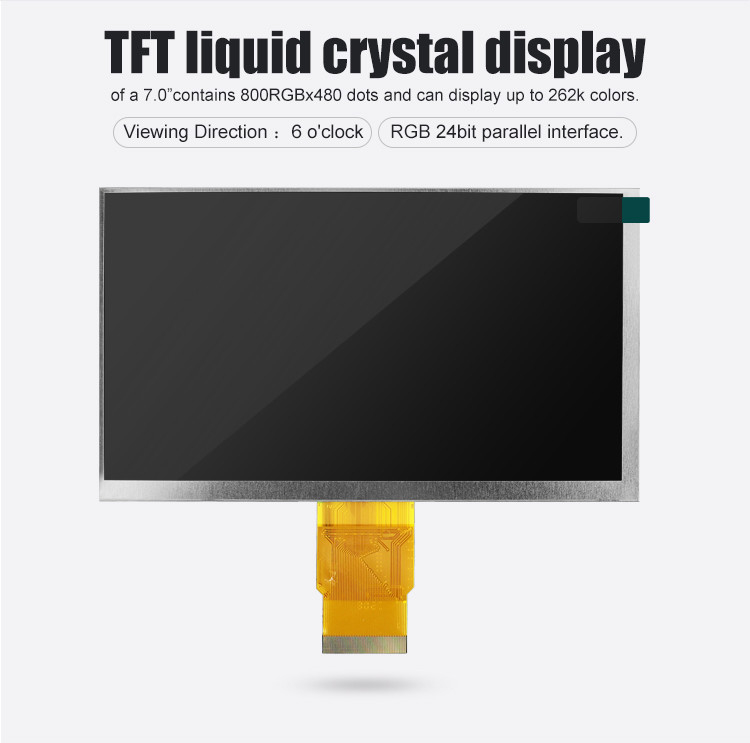

TFT Display Description:

7.0-inch TFT LCD is a high-quality display screen commonly used in portable electronic devices such as smartphones, tablets, and handheld gaming devices. It offers a clear and sharp visual display with vibrant colors, making it an ideal choice for a wide range of applications.

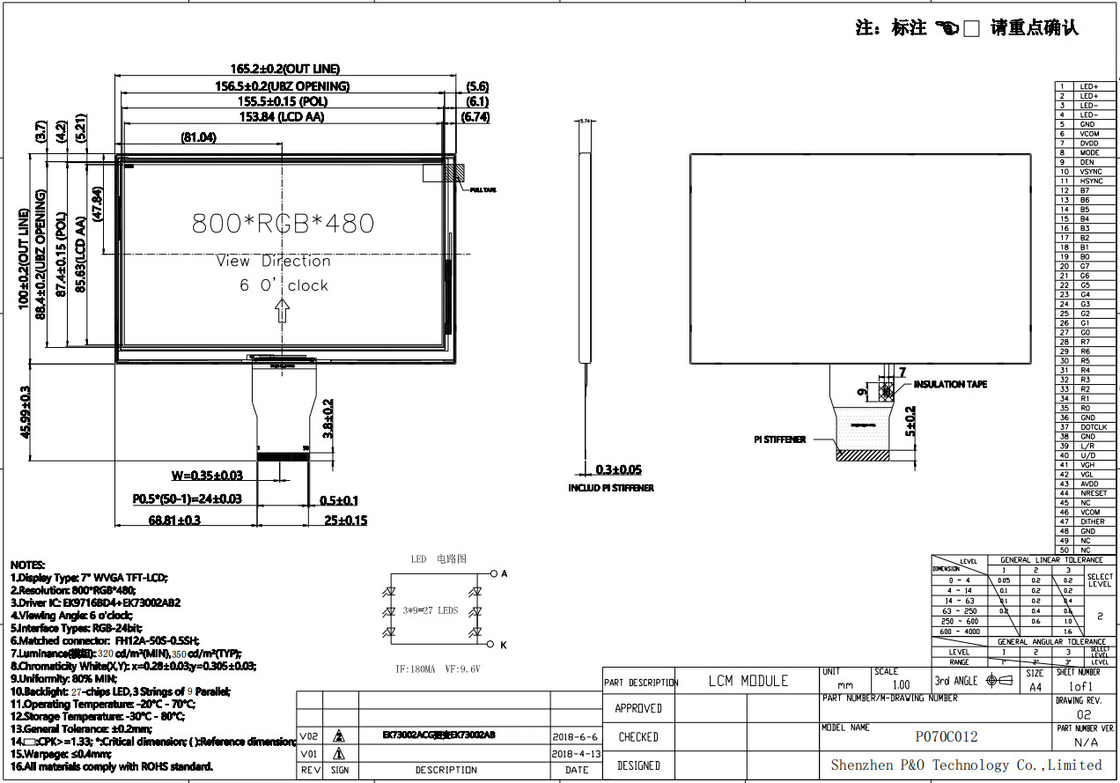

Parameter:

Model P070C012
Screen Size 7 inch
Number of Pixel 800RGB(H)x480(V)
Pin 50 pin
Display area 153.84(H)x85.63(V)mm
Pixel pitch 0.0641(H)x0.1784(V)mm

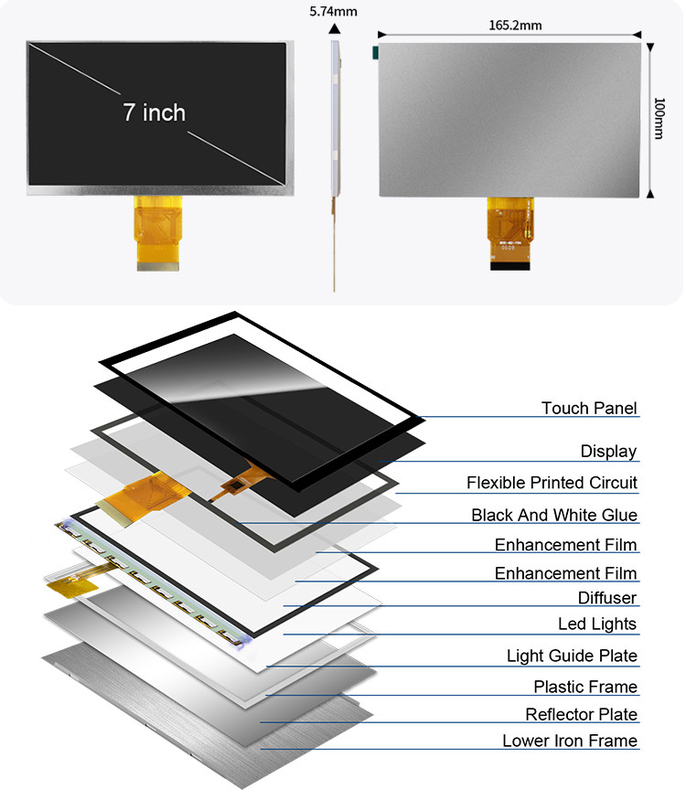

Outline Dimension 165.20x100.00x5.74mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally White
Viewing Direction(eye) 6 o'clock or IPS
Display Color 262k
Luminance(cd/m2) 350 nit
Contrast Ratio 500:1
Interface RGB 24bit
Back-light LED Side-light type
Drive IC 1*EK9716BD4 + 1*EK73002AB2
Operation Temperature -20~70℃
Storage Temperature

-30~80℃



Product Advantage

The 7.0-inch TFT LCD offers several advantages as a display technology. Its compact size makes it an ideal choice for portable devices, while its high resolution provides a clear and sharp visual display. The TFT LCD also offers vibrant colors, ensuring that images and videos are rendered with accuracy and clarity. Additionally, it is energy-efficient, consuming less power than other display technologies, which is beneficial for battery-powered devices. The LCD's durability and long lifespan make it a cost-effective solution for manufacturers. It is also designed to be highly responsive, with touch screen capabilities that enable seamless user interaction. Overall, the 7.0-inch TFT LCD provides a high-quality and reliable display solution for a wide range of portable electronic devices, making it a popular choice among manufacturers and consumers alike.



Production process

The production process of a 7.0-inch TFT LCD involves several steps, starting with the preparation of a glass substrate that is coated with a layer of transparent conductive material. This is followed by the deposition of a layer of thin-film transistors (TFTs) onto the substrate, which are responsible for controlling the individual pixels on the screen. A layer of color filters is then added to provide accurate and vibrant colors. The liquid crystal material is added, and the layers are bonded together using a sealant. The backlight module is added, which illuminates the screen and renders the images visible. After assembly, the LCD is tested for quality control, ensuring that it meets the required specifications for performance and reliability. The final stage involves packaging and shipping the LCD for use in electronic devices. This process requires precision and expertise to ensure that the finished product meets the high standards expected by manufacturers and consumers.

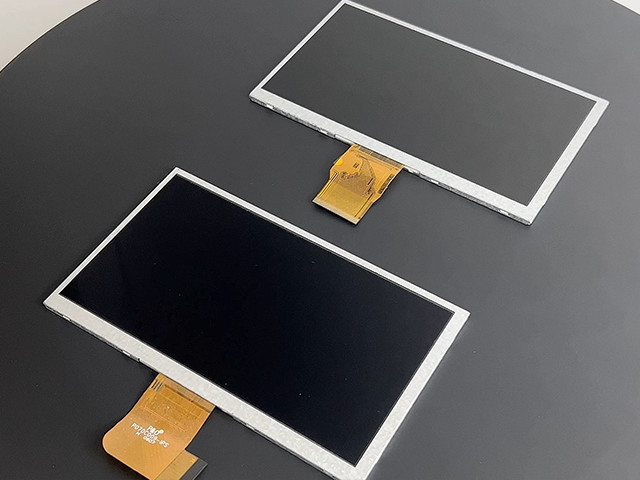

Polcd 7 inch Tft Module 800X480 High Brightness IPS Screen RGB Interface Capacitive Touch Panel 7" TFT LCD Display 0

Polcd 7 inch Tft Module 800X480 High Brightness IPS Screen RGB Interface Capacitive Touch Panel 7" TFT LCD Display 1Polcd 7 inch Tft Module 800X480 High Brightness IPS Screen RGB Interface Capacitive Touch Panel 7" TFT LCD Display 2
