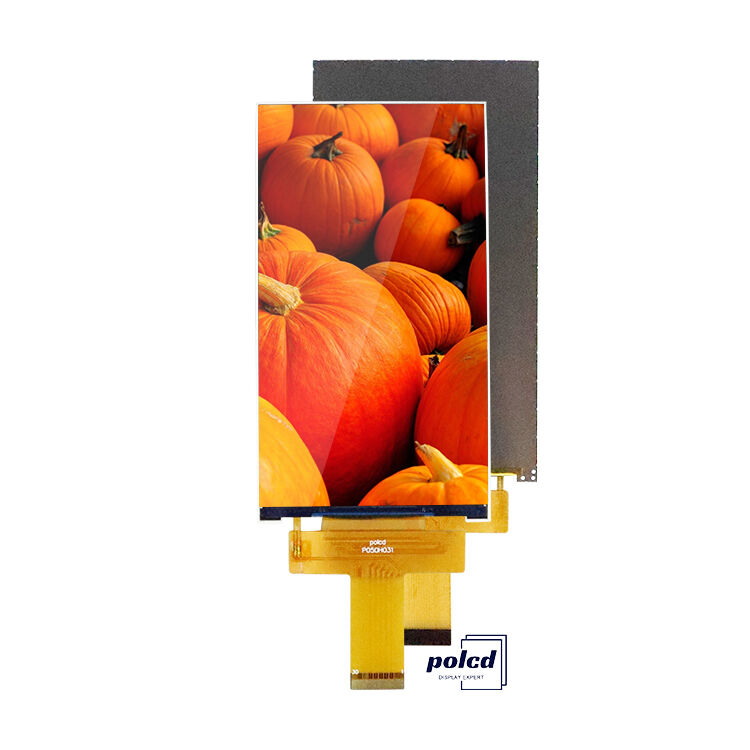

Name: Polcd 5 inch TFT Module 720x1280 High Resolution Mipi IPS All Viewing Angle LCD Screen Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P050H031-IPS
Availability: InStock

Home > products > TFT LCD Module >

Polcd 5 inch TFT Module 720x1280 High Resolution Mipi IPS All Viewing Angle LCD Screen Display

Mipi IPS TFT Module

Mipi IPS 5 inch TFT Module

IPS All Viewing Angle TFT Module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P050H031-IPS

Request A Quote

Product Details

Resolution:

720x1280

Interface:

MIPI

Driver IC:

ST7703

Brightness (cd/m²):

400 Nit

Viewing Angle:

IPS All View Angle

Display Area:

62.10(H)x110.40(V) Mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram

Supply Ability

25,000 PCS per day

Polcd 3.5 Inch IPS TFT LCD 320*480 Ili9488 Drive Ic 600:1 Contrast Ratio LCD Display Modules

Get Best Price

Video

Polcd High Luminance 3.5 Inch Small TFT LCD Display 30pin 320*480 Capacitive Touch Screen

Get Best Price

Video

Polcd Colors 265K 2.8 inch TFT Module 57.6mm Normally White SPI interface Lcd tft Module

Get Best Price

Video

Polcd Custom 3.5 Inch 320x480 Capacitive Touch Panel 500nit ST7796U IPS Tft Lcd Display Module

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Parameter:

Item	Specification
Model	P050H031-IPS
Screen Size	5 inch
Number of Pixel	720RGB(H)x1280(V)
Display area	62.10(H)x110.40(V)mm
Pixel pitch	0.0945(H)x0.0945(V)mm
Pins	30 pins

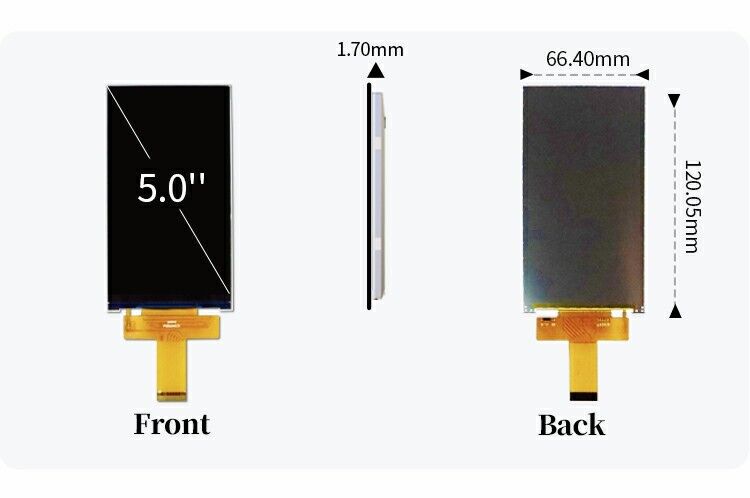

Outline Dimension	66.40x120.05x1.70mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Gray inversion direction	--
Display Color	262K
Luminance(cd/m2)	400 nit
Contrast Ratio	800:1
Surface treatment	--
Interface	MIPI
Back-light	LED Side-light type
Drive IC	ST7703
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
