Name: Polcd 2.1 inch IPS Small Round LCD 480*480 Mipi interface ST7701S Circle Circular TFT Display Module
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P021B001-IPS
Availability: InStock

Home > products > TFT LCD Module >

Polcd 2.1 inch IPS Small Round LCD 480*480 Mipi interface ST7701S Circle Circular TFT Display Module

ST7701S TFT LCD Module

Mipi interface TFT LCD Module

Small Round TFT LCD Module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P021B001-IPS

Request A Quote

Product Details

Resolution:

2.1 Inch 480x480

Interface:

2Line MIPI

Driver IC:

ST7701S

Brightness (cd/m²):

300 Nit

Viewing Angle:

IPS All View Angle

Display Area:

53.28(H)x53.28(V)mm

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram

Supply Ability

25,000 PCS per day

Polcd 3.5 Inch IPS TFT LCD 320*480 Ili9488 Drive Ic 600:1 Contrast Ratio LCD Display Modules

Get Best Price

Video

Polcd High Luminance 3.5 Inch Small TFT LCD Display 30pin 320*480 Capacitive Touch Screen

Get Best Price

Video

Polcd Colors 265K 2.8 inch TFT Module 57.6mm Normally White SPI interface Lcd tft Module

Get Best Price

Video

Polcd Custom 3.5 Inch 320x480 Capacitive Touch Panel 500nit ST7796U IPS Tft Lcd Display Module

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Introduction:

The 2.1-inch circular LCD (Liquid Crystal Display) is an innovative and compact display module that offers a versatile solution for various electronic applications. With its small form factor and excellent visual performance, this circular LCD is becoming increasingly popular in today's technology-driven world.

Application:

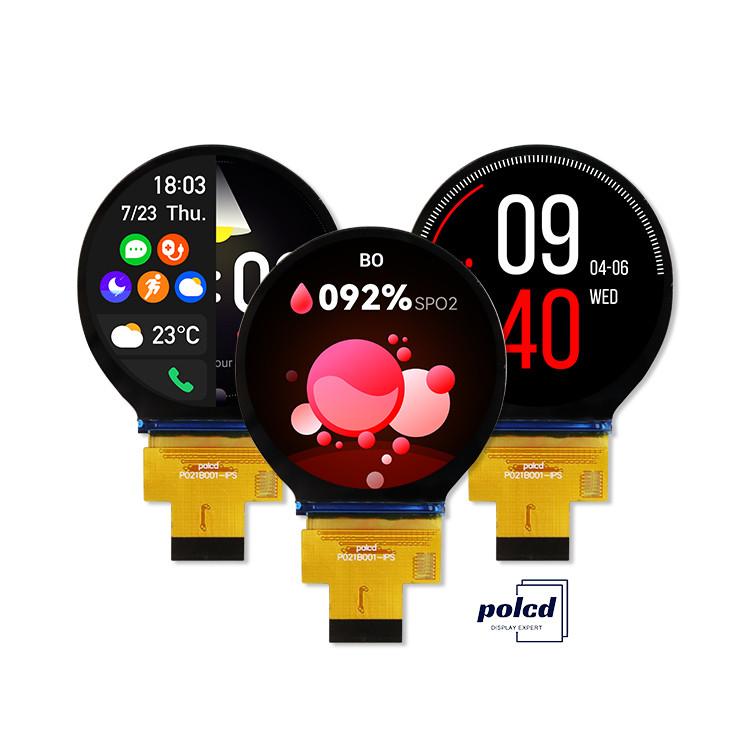

This LCD module finds applications in various industries, including smartwatches, fitness trackers, portable medical devices, electronic instruments, and smart home systems. Its small size and adaptability make it suitable for a wide range of products.

Parameter:

Model	P021B001-IPS
Screen Size	2.1 inch
Number of Pixel	480RGB(H)x480(V)
Display area	53.28(H)x53.28(V)mm
Pixel pitch	111(H)x111(V)um
Pin	30 pins

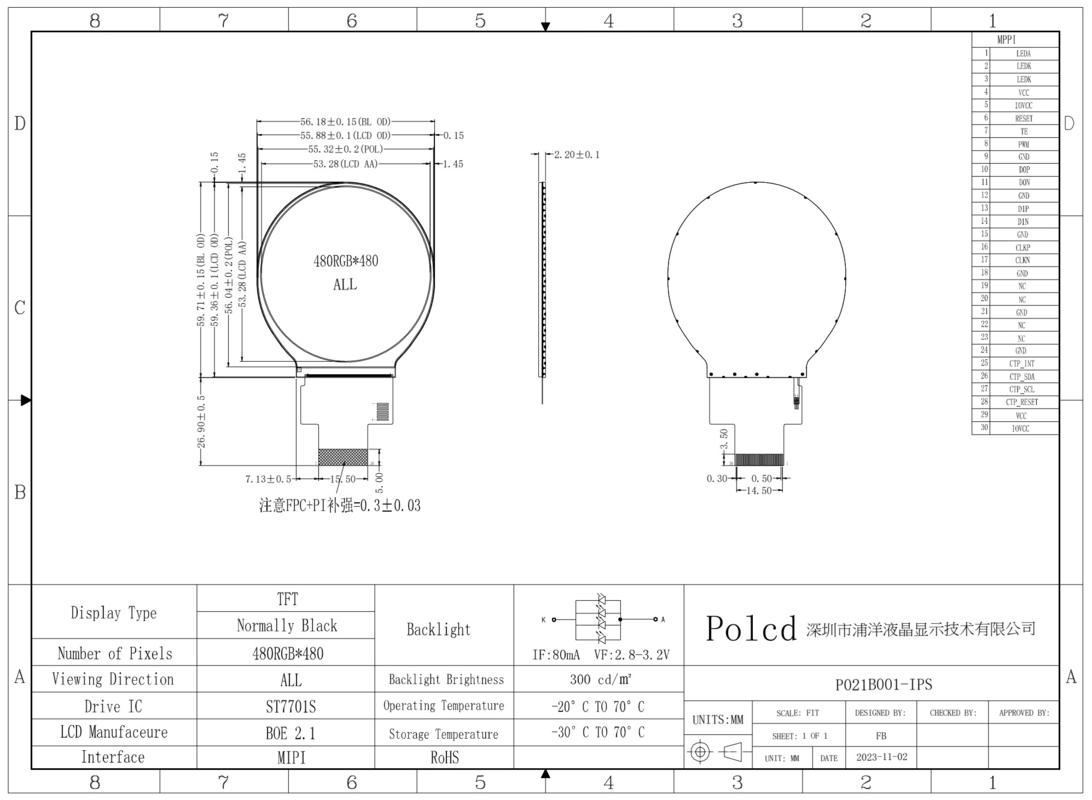

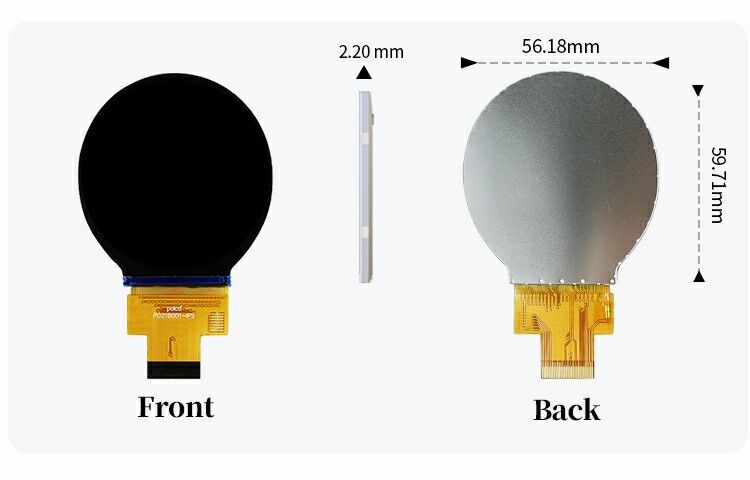

Outline Dimension	56.18x59.71x2.2mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262k

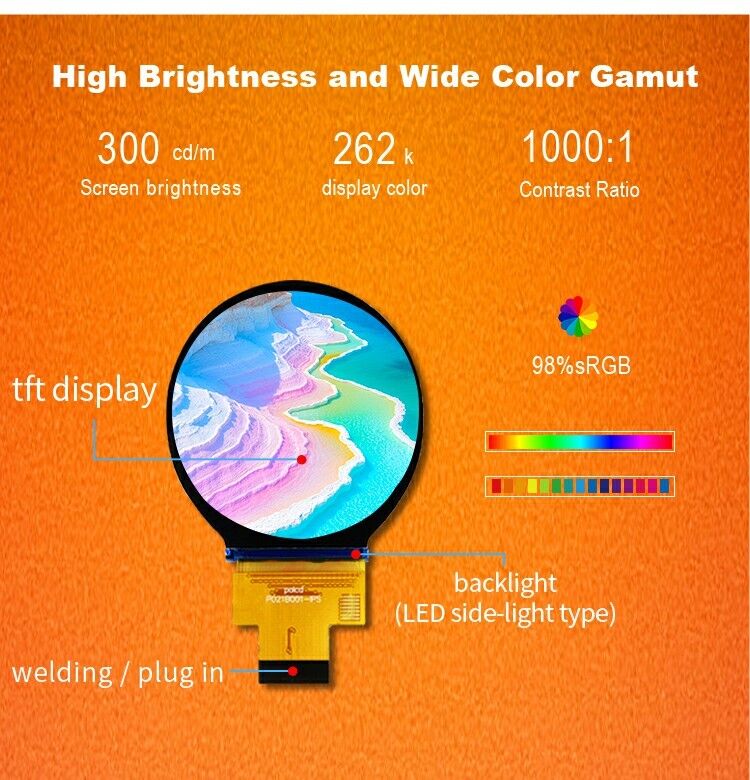

Luminance(cd/m²)	300 nit
Contrast Ratio	1000:1
Interface	2Line MIPI
Back-light	LED Side-light type
Drive IC	ST7701S
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Polcd 2.1 inch IPS Small Round LCD 480*480 Mipi interface ST7701S Circle Circular TFT Display Module 0
