Introduction:

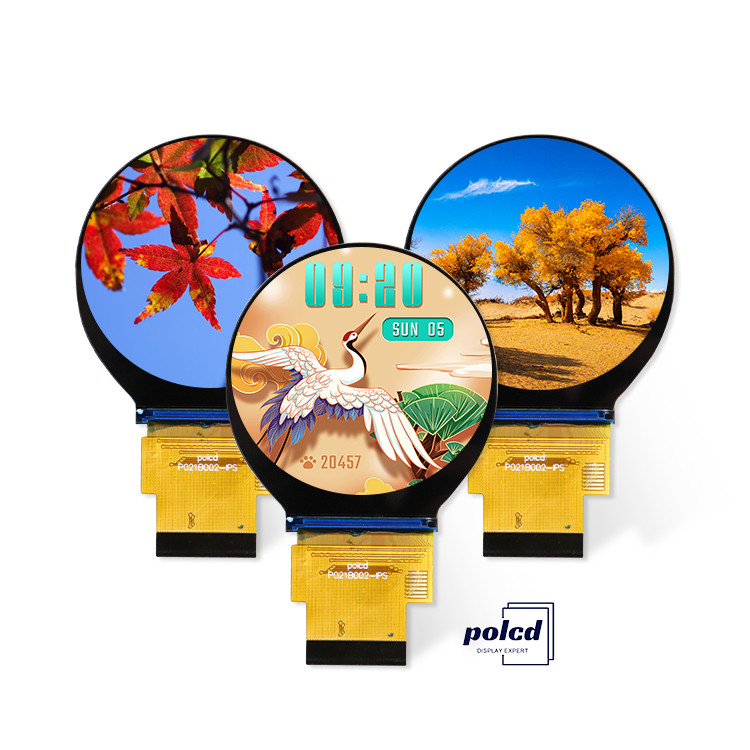

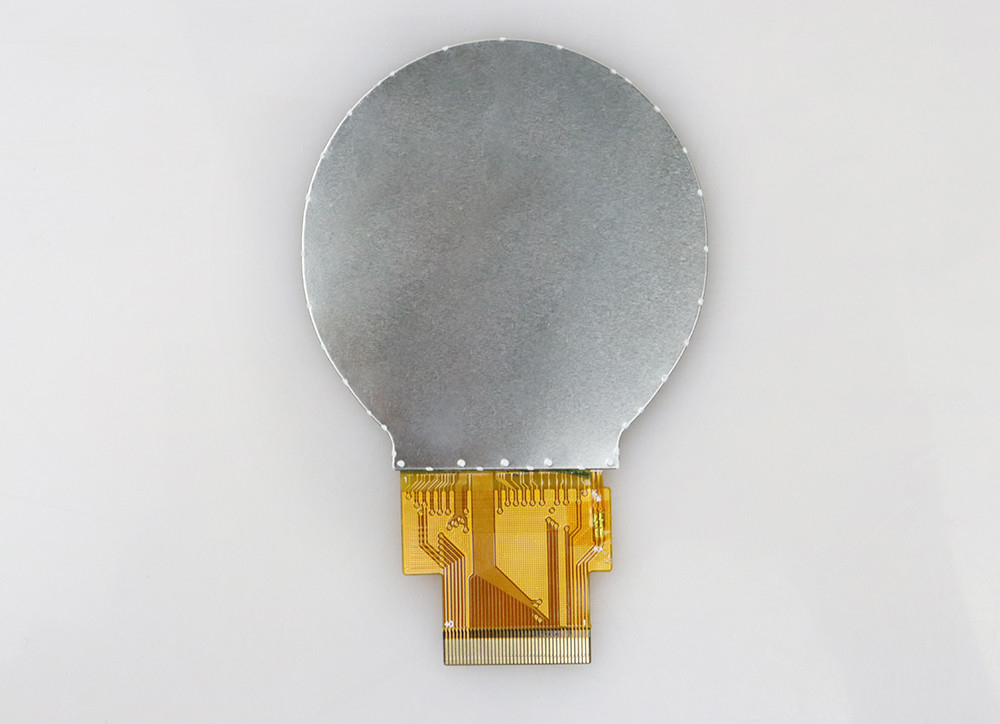

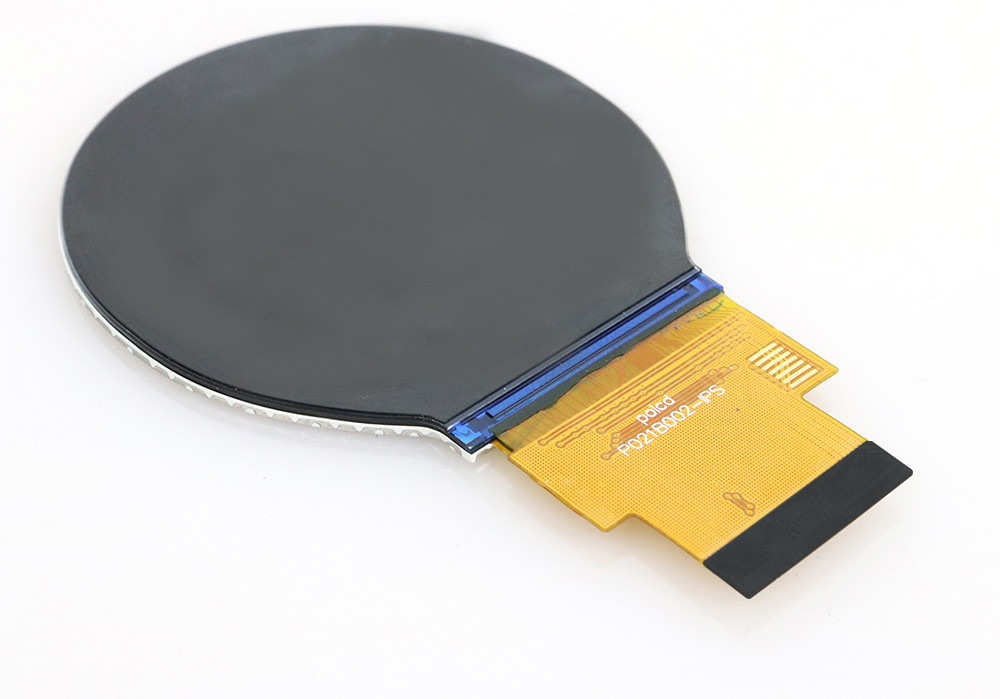

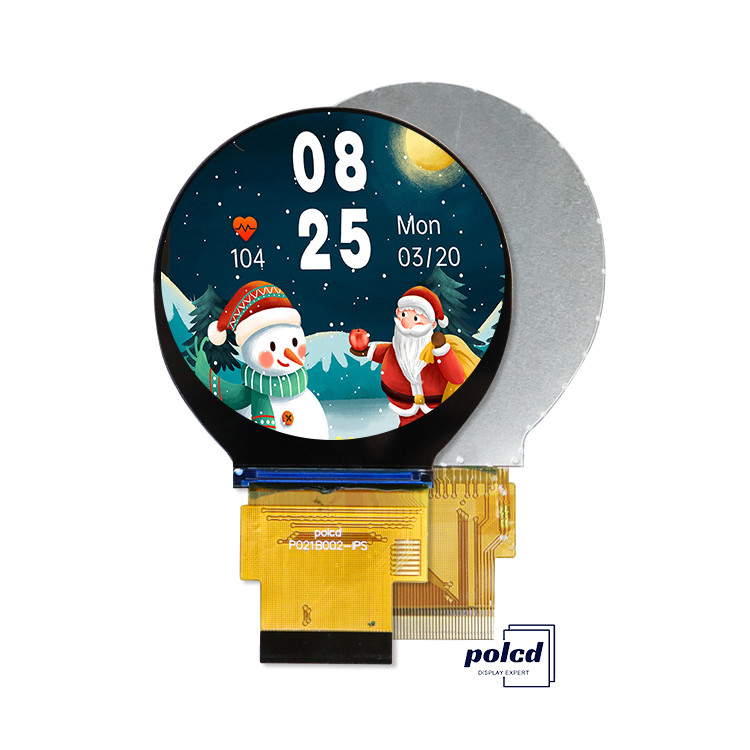

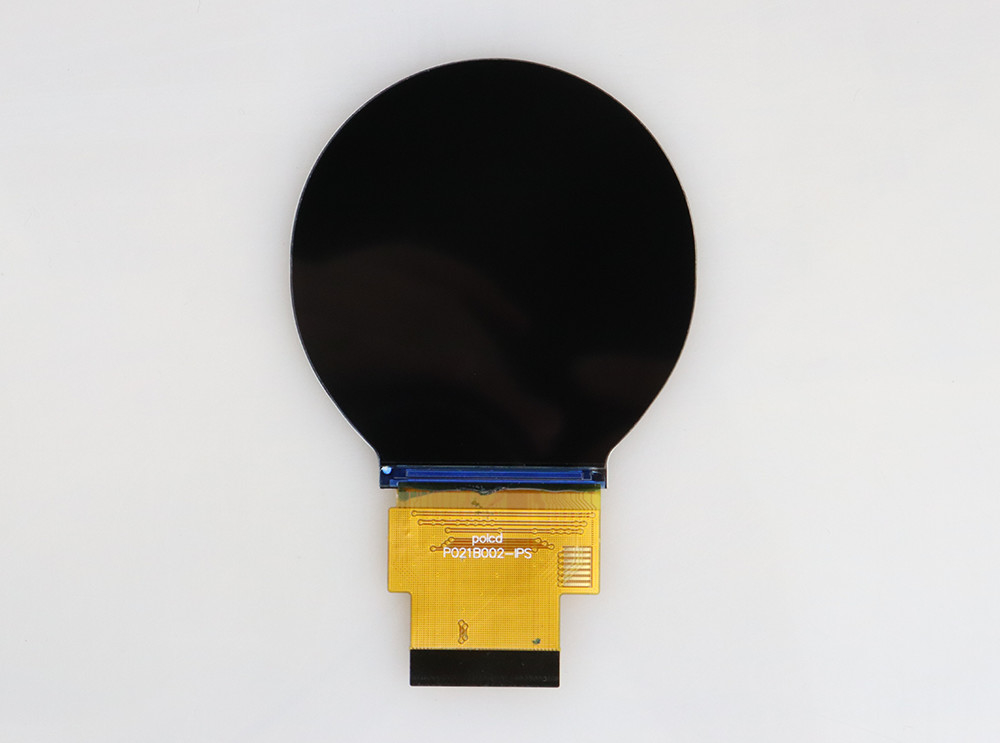

The 2.1-inch circular LCD (Liquid Crystal Display) is an innovative and compact display module that offers a versatile solution for various electronic applications. With its small form factor and excellent visual performance, this circular LCD is becoming increasingly popular in today's technology-driven world.
Parameter:

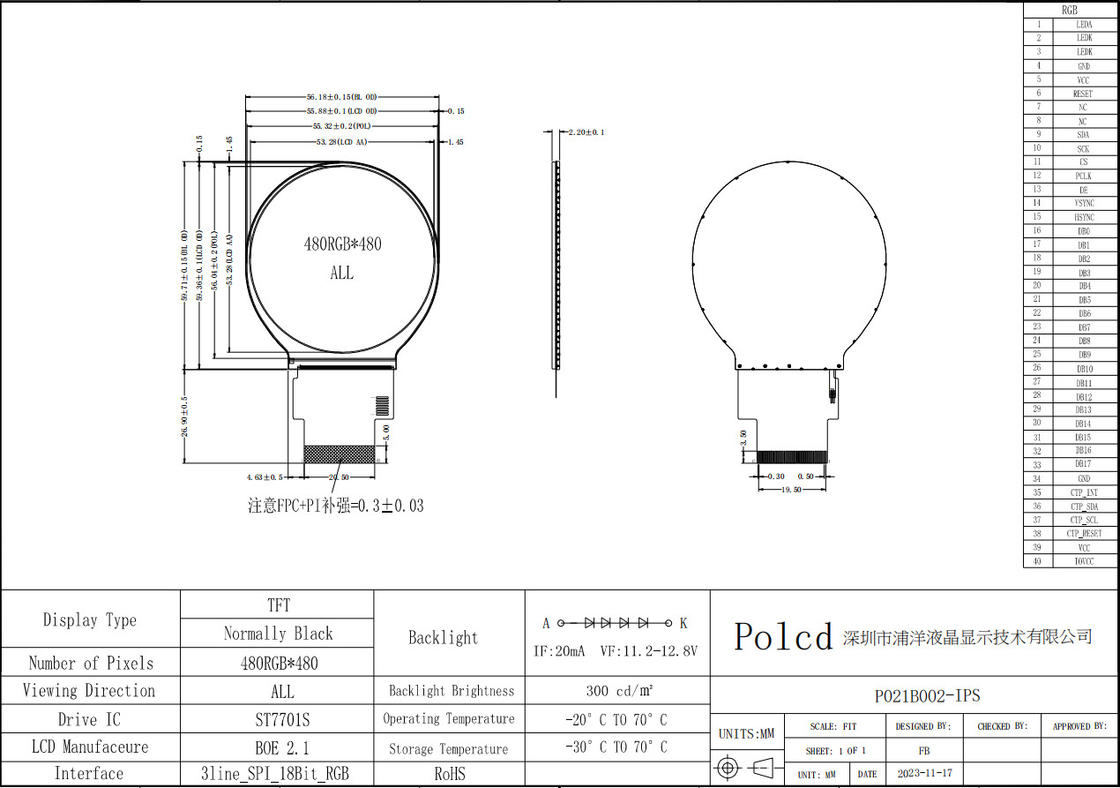

| Model | P021B002-IPS |
| Screen Size | 2.1 inch |
| Number of Pixel | 480RGB(H)x480(V) |
| Display area | 53.28(H)x53.28(V)mm |
| Pixel pitch | 111(H)x111(V)um |
| Pin | 40 pins |
| Outline Dimension | 56.18x59.71x2.2mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262k |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1000:1 |
| Interface | 3Line SPI 18bit RGB |
| Back-light | LED Side-light type |
| Drive IC | ST7701S |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Features:
1. Compact Design: Making it ideal for devices with limited space or those that require a small display area. Its circular shape adds a unique aesthetic appeal to the overall design.
2. High Resolution: Despite its small size, this LCD module delivers impressive image quality with high resolution. The display offers sharp and vibrant visuals, ensuring an enhanced user experience.
3. IPS Wide Viewing Angle: The circular LCD incorporates advanced viewing angle technology, enabling users to view the screen from various angles without compromising image clarity. This feature is particularly beneficial for devices that require multiple users to view the screen simultaneously.
4. Energy Efficiency: The designed to be energy-efficient, consuming minimal power while delivering optimal performance. This feature is crucial for portable devices and those with limited power resources, contributing to extended battery life.
