3.2 Inch Capacitive Touch Screen Lcd Industrial Glass G+F Ft6336u Driver Ic I2c Interface

3.2 Inch Capacitive Touch Screen Lcd Industrial Glass G+F Ft6336u Driver Ic I2c Interface

3.2 inch capacitive touch screen lcd

ft6336u capacitive touch screen lcd

3.2 inch capacitive touch screen display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

GFP032100A-1.0

Contact Us

Request A Quote
Product Details
Product Name:
Capacitive Touch Screen Panel
Size:
3.2 Inch
View Area(mm):
48.0±0.1(W)*64.0±0.1(H)
Structure:
G+F
Interface:
I2C
Driver Ic:
FT6336U
Operating Temperature:
-10℃~+60℃; Humidity: 20%~90%
Transmittance:
≥85%
Surface Hardness:
≥6H
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 18 cm * 13 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

Polcd 3.2 inch Industrial Panel Glass G+F FT6336U Driver IC I2C interface Capacitive Touch Screen





Product Description:

The 3.2-inch capacitive touch screen has product features such as high sensitivity, high response speed, multi-touch, high definition, durability and low power consumption, making it an ideal choice for small electronic devices.



3.2 inch capacitive touch screen is widely used in small electronic devices, such as smart watches, portable media players, mini game consoles, etc. These devices often require a small, sensitive and easy-to-use touch screen to provide a convenient user interface.



Product Parameter:

Product Name 3.2” Capacitive Touch Screen
Brand Polcd
Model GFP032100A-1.0
Size 3.2 inch
View Area(mm) 48.0±0.1(W)*64.0±0.1(H)
Structure G+F
Drive IC FT6336U
PIN 6 pin
Interface I2C
Cover Lens 1.1mm
Sensor materials IT0 film: 0.125mm
Lead FPC (PITCH: 0.5±0.05)
Aggregate thickness 1.53±0.15
Transmittance ≥85%
Surface hardness ≥6H
Unfilled size tolerance ±0.2mm
Operating Voltage 2.8V-3.3V
Operating temperature -10℃~+60℃; humidity: 20%~90%
Storage temperature -20℃~+70℃; humidity: 20%~90%
Certification RoHS
Warranty 1-2 years



3.2 inch touch panel features:

1. High sensitivity: Capacitive touch screen can detect very small touch signals, so it has high sensitivity. Users can operate by tapping the screen without applying pressure.



2. High response speed: The capacitive touch screen has a fast response speed, which can detect the user's touch signal within a few milliseconds and make a corresponding response. This allows users to operate faster and improves user experience.



3. Multi-touch: Capacitive touch screen can detect multiple touch points at the same time and support multi-touch operation. This allows users to perform more operations on the screen, such as zooming, rotating, and dragging.



4. High definition: Capacitive touch screens usually have high resolution and high pixel density, which can provide clear image and text display.



5. Durability: Capacitive touch screens generally have high durability and scratch resistance, and can withstand regular use and minor physical damage.



6. Low power consumption: The capacitive touch screen has low power consumption characteristics, which can extend battery life and save energy.

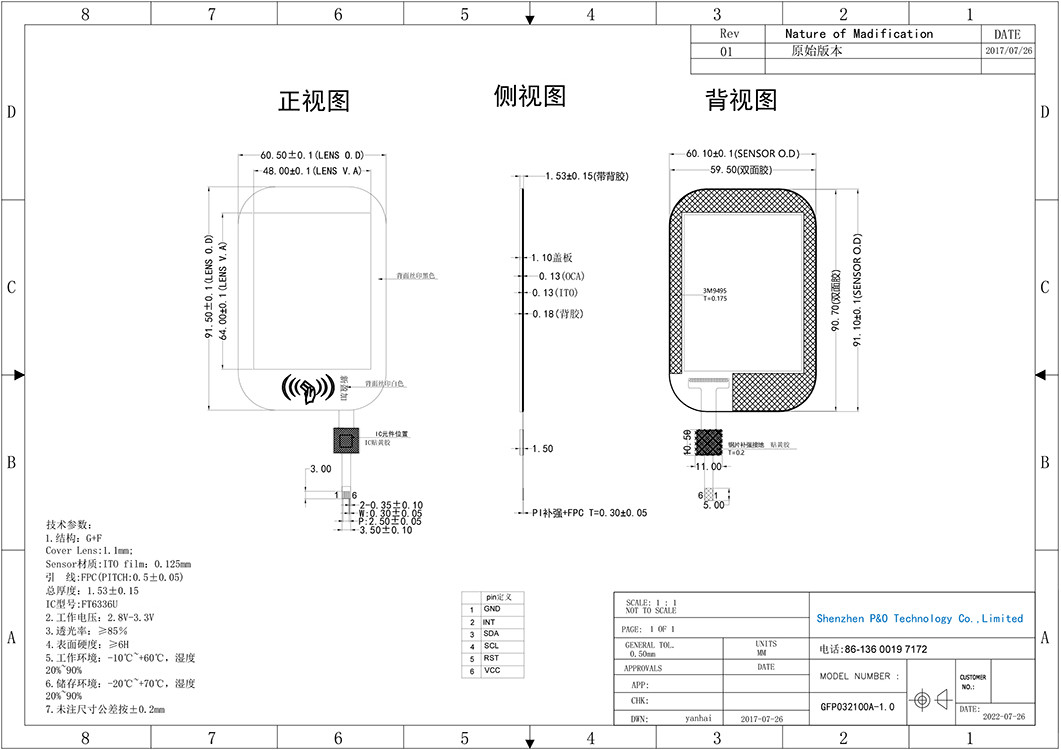

3.2 Inch Capacitive Touch Screen Lcd Industrial Glass G+F Ft6336u Driver Ic I2c Interface 03.2 Inch Capacitive Touch Screen Lcd Industrial Glass G+F Ft6336u Driver Ic I2c Interface 13.2 Inch Capacitive Touch Screen Lcd Industrial Glass G+F Ft6336u Driver Ic I2c Interface 2
